DTI / DTU Differential pressure transmitters
The DTI (2-Wire) and DTU (3-Wire) Differential Pressure Transmitters are suitable for measuring differential pressures in liquid and gaseous media. They operate according to the piezo-resistive measuring principle.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The DTI (2-Wire) and DTU (3-Wire) Differential Pressure Transmitters are suitable for measuring differential pressures in liquid and gaseous media. They operate according to the piezo-resistive measuring principle. The measurement cell is welded into a seal-less stainless steel measurement chamber. The output signal is either an analog current signal DTI) or voltage signal (DTU). Typical areas of application include: Compressors, Refrigeration and HVAC/R
Specifications
Others
- Brand
- FEMA
- Honeywell
- Connection Type
- 2 x G1/8 in
Others
- Brand
- FEMA
- Honeywell
- Connection Type
- 2 x G1/8 in
- Brand : FEMA|Honeywell
- Connection Type : 2 x G1/8 in
Name
Date
Size
_blank
Application@application|Enclosure_Rating@enclosure_rating|Medium@medium|Minimum_Operating_Ambient_Temperature@minimum_operating_ambient_temperature|Mounting_Type@mounting_type|Output_Signal@output_signal|Pressure_Range@pressure_range|Pressure_Sensor_Type@pressure_sensor_type|Sensor_Type@sensor_type|Supply_Voltage@supply_voltage
Please sign in to view part numbers available for purchase based on your account Sign In
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list

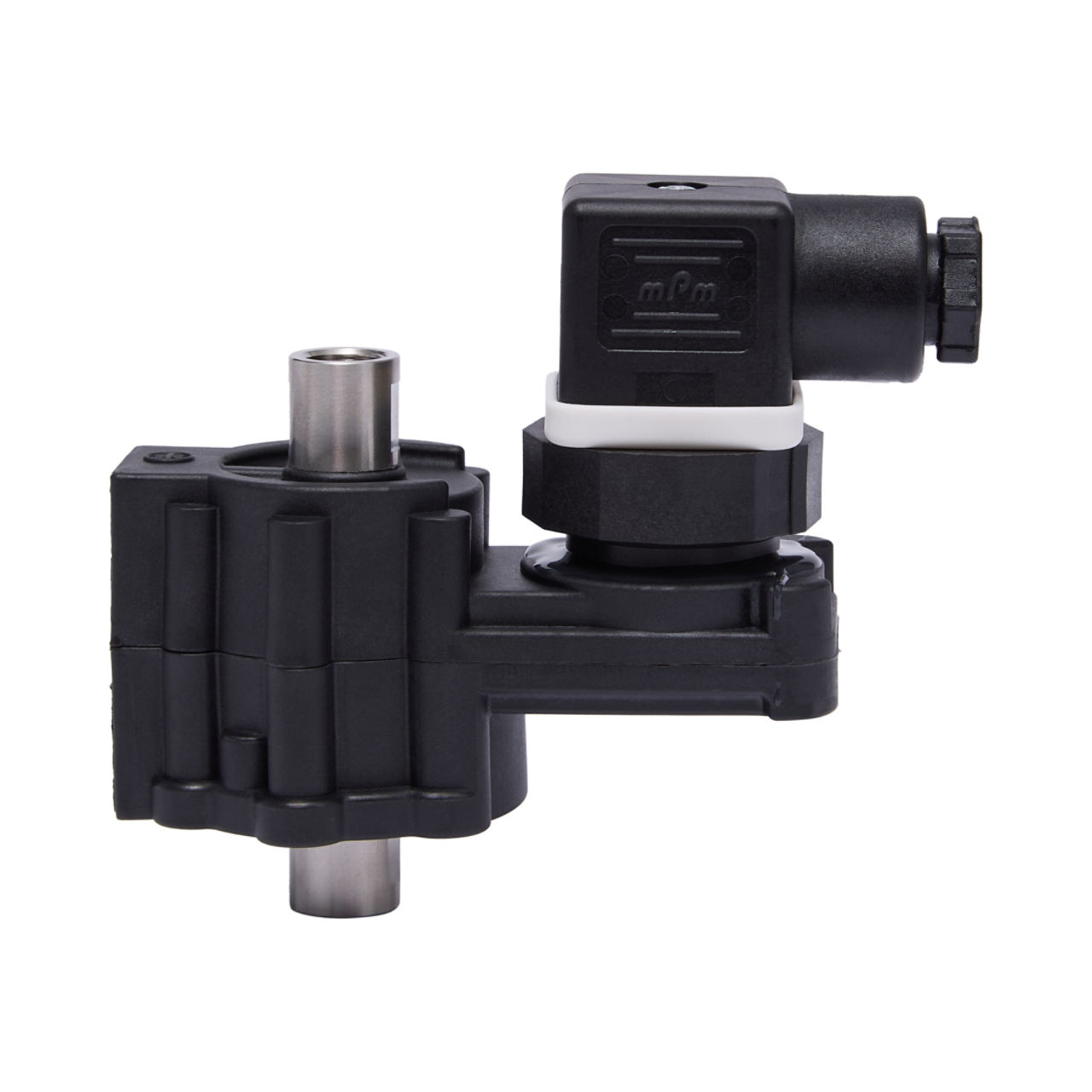

DTI06
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +0,6 bar;max differential: ; max system pressure: 5 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI06
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +0,6 bar;max differential: ; max system pressure: 5 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI1
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +1 bar;max differential: ; max system pressure: 5 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI1
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +1 bar;max differential: ; max system pressure: 5 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI10
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +10 bar;max differential: ; max system pressure: 30 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI10
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +10 bar;max differential: ; max system pressure: 30 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI10S3A0
Differential Pressure Transmitter, water, G14,4 to 20mA(2-wire), range 0 to +10 bar, max system pressure: 40 bar
DTI10S3A0
Differential Pressure Transmitter, water, G14,4 to 20mA(2-wire), range 0 to +10 bar, max system pressure: 40 bar
DTI1S3A0
Differential Pressure Transmitter, water, G14, 4 to 20mA(2-wire), range 0 to +1 bar, max system pressure: 40 bar
DTI1S3A0
Differential Pressure Transmitter, water, G14, 4 to 20mA(2-wire), range 0 to +1 bar, max system pressure: 40 bar
DTI2
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +2,5 bar;max differential: ; max system pressure: 10 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI2
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +2,5 bar;max differential: ; max system pressure: 10 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI2S3A0
Differential Pressure Transmitter, water, G14,4 to 20mA(2-wire), range 0 to +2.5 bar, max system pressure: 40 bar
DTI2S3A0
Differential Pressure Transmitter, water, G14,4 to 20mA(2-wire), range 0 to +2.5 bar, max system pressure: 40 bar
DTI4
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +4 bar;max differential: ; max system pressure: 30 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI4
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +4 bar;max differential: ; max system pressure: 30 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI4S3A0
Differential Pressure Transmitter, water, G14, 4 to 20mA(2-wire), range 0 to +4 bar, max system pressure: 40 bar
DTI4S3A0
Differential Pressure Transmitter, water, G14, 4 to 20mA(2-wire), range 0 to +4 bar, max system pressure: 40 bar
DTI6
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +6 bar;max differential: ; max system pressure: 30 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
DTI6
Differential pressure sensor, G14; 4…20mA (2-wire); range: 0 … +6 bar;max differential: ; max system pressure: 30 bar
https://preview1.assetsadobe.com/is/image/Honeywell65/hon-ba-bms-dti10-left
