Linear Valves

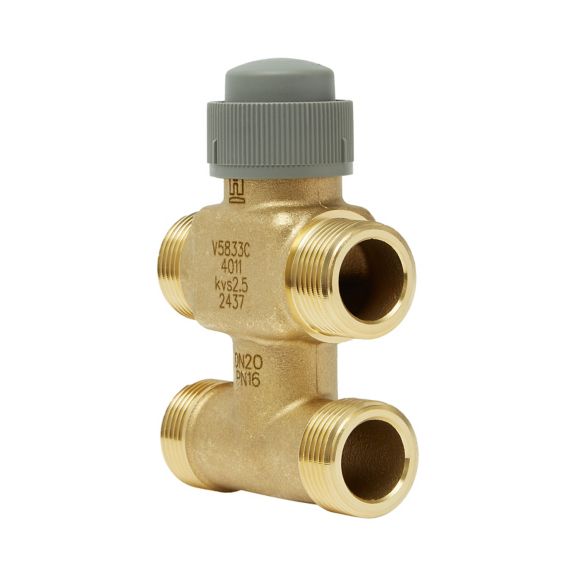

V5833C Series 3-Way Short Stroke Linear Mixing Valves with Bypass, Flat Seal, PN16.

V5833C series 3-way mixing valves with bypass piping are available in DN15 and DN20 sizes, for use in compact zone valve applications.

Overview

V5833C series is available in DN15 and DN20 size, with external pipe thread, flat seal, and four pipe connections for maximum piping flexibility. Two pipe connections on the B-port allows for both supply and return pipes to be piped in parallel. An impressive range of KVS values are available, to suit a wide range of applications. 2.5mm stroke valves are available for 2-P on/off control, as well as 6.5mm stroke versions for modulating control.

Valves are used with compact thermo-electric and electric actuators for a compact assembly. Flow characteristic for 6.5mm stroke valves is equal percentage on the A-port, and linear on the B-port (with one size smaller KVS value for optimum control). Valve action: A-port is open with the stem in its bottom position.

Product Number
SKUs
SKU
Description
alt
V5833C1009
3-Way Mixing Linear Valve with Bypass, External Thread Connection, Flat Seal, PN16, KVs 0.4, DN15, 6.5mm stroke
alt
V5833C1017
3-Way Mixing Linear Valve with Bypass, External Thread Connection, Flat Seal, PN16, KVs 0.63, DN15, 6.5mm stroke
alt
V5833C1017X
3-way Bypass Pn16Dn15 Kvs0.63
alt
V5833C1025
3-Way Mixing Linear Valve with Bypass, External Thread Connection, Flat Seal, PN16, KVs 1.0, DN15, 6.5mm stroke
alt
V5833C1025X
alt
V5833C1033
3-Way Mixing Linear Valve with Bypass, External Thread Connection, Flat Seal, PN16, KVs 1.6, DN15, 6.5mm stroke
alt
V5833C1033X
alt
V5833C1041
3-Way Mixing Linear Valve with Bypass, External Thread Connection, Flat Seal, PN16, KVs 2.5, DN20, 6.5mm stroke
alt
V5833C1041X
alt
V5833C1058
3-Way Mixing Linear Valve with Bypass, External Thread Connection, Flat Seal, PN16, KVs 4.0, DN20, 6.5mm stroke
