IQ500 Plant & Integration Controller
The IQ™500 Plant & Integration Controller provides a secure and versatile control platform for building and energy management systems. The controller is available pre-licensed or as hardware & license separate, see SKU link for options.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

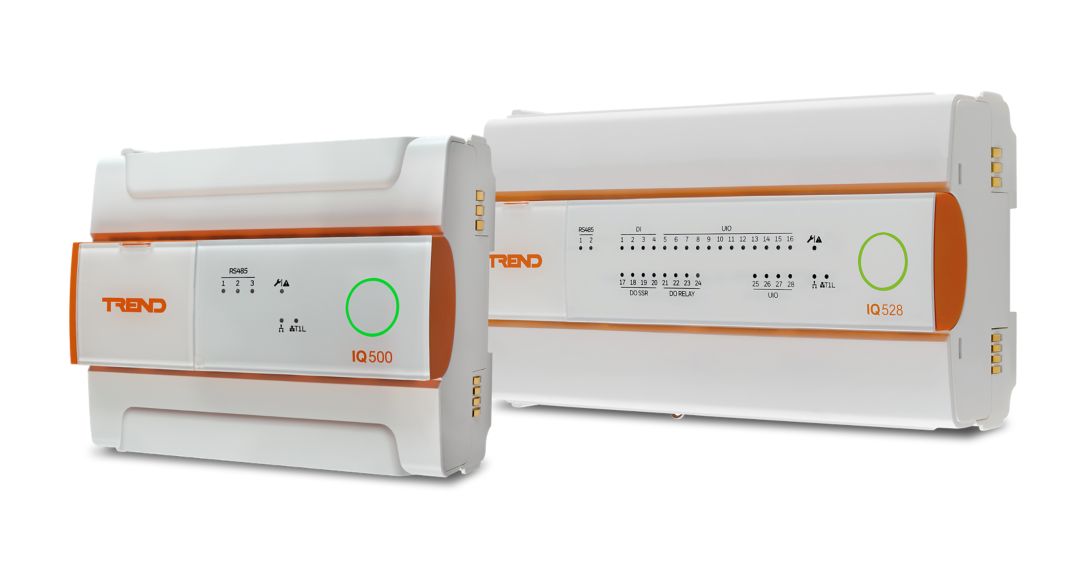

The IQ500 Plant & Integration Controller provides a secure and versatile control platform for building and energy management systems. With four onboard Ethernet ports and three RS-485 ports, the IQ500 Plant & Integration Controller not only enables the creation of a powerful Trend network but provides the ability to interface with a wide range of third party devices using BACnet, Modbus, M-Bus, MSTP and much more.

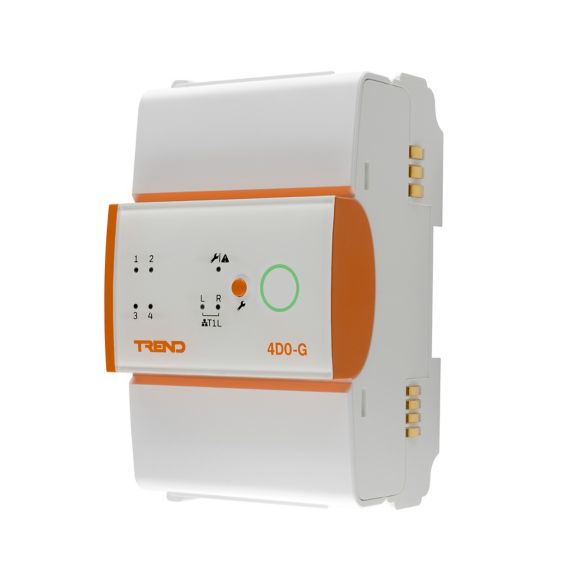

The IQ500 Plant & Integration Controller integrates with the latest IQ5-IO input/output modules over a high-speed T1L bus. A separate bus is also provided for use with IO modules from the IQ4 and XCITE ranges. Flexible licencing options allow the IQ500 Plant & Integration Controller's functionality and number of IO channnels to be easily configured for your required application.
When ordering the IQ5-00-24 Controller that contains H0 in the Serial Number (for example: 2523H0P10D0T0023), please order the Pre-Licensed IQ500 Controller SKUs or use the Bulk Order–IQ5 License to upload the IQREQUEST XML file that is created from IQSET. The website currently does not accept Serial Numbers containing H0. The website is under development and will be updated soon to accept Serial Numbers with H0.
Features & Benefits:
The IQ500 Plant & Integration Controller integrates with the latest IQ5-IO input/output modules over a high-speed T1L bus. A separate bus is also provided for use with IO modules from the IQ4 and XCITE ranges. Flexible licencing options allow the IQ500 Plant & Integration Controller's functionality and number of IO channnels to be easily configured for your required application.
When ordering the IQ5-00-24 Controller that contains H0 in the Serial Number (for example: 2523H0P10D0T0023), please order the Pre-Licensed IQ500 Controller SKUs or use the Bulk Order–IQ5 License to upload the IQREQUEST XML file that is created from IQSET. The website currently does not accept Serial Numbers containing H0. The website is under development and will be updated soon to accept Serial Numbers with H0.
Features & Benefits:
- 0 onboard I/O channels, expandable to 300 I/O channels with initial base license supporting 16 I/O channels
- Designed to meet ISA/IEC 62443-4-2 SL2
- T1L high-speed secure bus for IQ5 I/O modules
- Compatible I/O bus for IQ4 and XCITE (IQ3) I/O modules
- 1x 1GB Isolated Ethernet Port
- 802.1x authentication on the Isolated Ethernet Port to meet IT security standards
- 3x 1GB Switched Ethernet Ports
- 3x RS-485 ports: Modbus, M-Bus, MSTP and XNC integration
- Compatibility mode for IQ3/IQ4 installations
- Trend LAN Adaptor for IQ1/IQ2 installations
- BACnet over IP (BACnet Building Controller (B-BC))
- Automatic time synchronisation and daylight saving via SNTP
- Surface or DIN rail mounting, DIN 19 size 2 standard enclosure
- USB local supervisor/engineering port
- 24 Vac/dc input power supply
- The controller is available pre-licensed or as hardware & license separate, see SKU link for options
- Certifications:
- UL Certification
- CE
- UKCA
