    RS-485 Termination Box PCD7.T16x

    PCD7 Termination Boxes are an electrically isolated supply provides bias voltage at the necessary off-load potential for signal lines D and /D.

    Overview

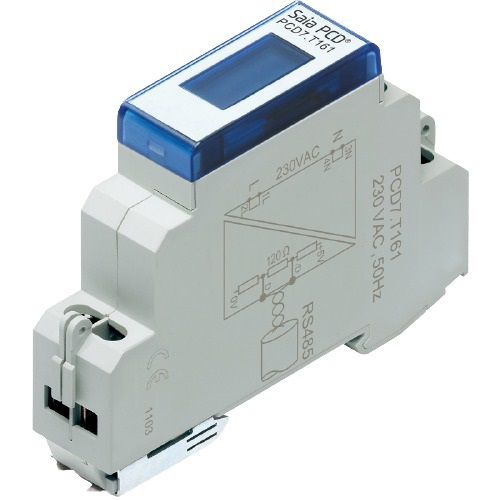

    The PCD7.T16x termination boxes are used for RS-485 network termination. Each RS-485 network segment must be terminated at the end of the network. The PCD7.T16x termination boxes ensure that the RS-485 signals are set at the correct signal level and the integrated 120 Ohm resistor prevents signal reflection in the RS-485 cable. With their robust and compact construction and electrically isolated power supply with either 230 VAC or 24 VAC/DC, the PCD7.T16x termination boxes are suitable for use in harsh industrial environments and in infrastructure automation. An LED indicates the presence of the supply voltage of the PCD7.T16x termination box.

    Features & Benefits:
    • 17.5 mm case (same as ALD)
    • 230 VAC +15%/–20% for PDC7.T161
    • 24 VAC /DC –15%/+15% for PDC7.T162
    • Power consumption of 0,4 W
    • Isolated supply
    • Fixed end resistor of 120 Ω
    • Power-on LED
