    Wall Switches

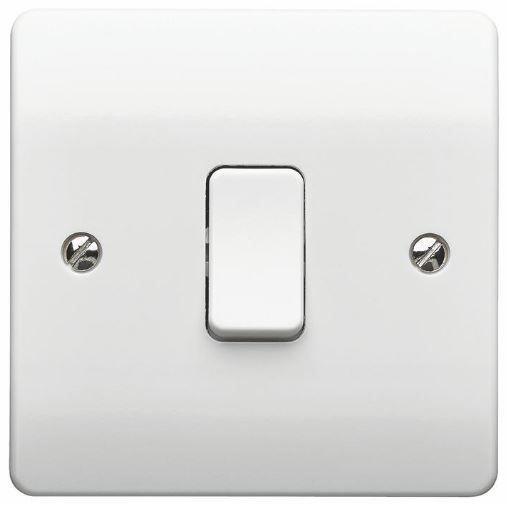

    Logic PlusTM Plate Switch

    Logic PlusTM brings Plate Switches which are suitable for controlling lighting circuits in domestic, commercial and industrial applications.

    Overview

    MK Electric introduces Logic PlusTM range Plate Switches which are designed to blend in with the decor, complementing a wide range of other MK wiring devices. They are designed for easy installation in plaster depth boxes and are suitable for controlling lighting circuits in domestic, commercial and industrial applications. These plate switches have Neon locator, i.e. A textured, polycarbonate moulding allowing the glow of the neon to be seen at almost any angle. Designed to complement the Logic plus 1, 2, or 3 gang plateswitches. It is easy to install in existing locations.

    Features & Benefits:
    • Plate Switch, Intermediate operation, 10A Current rating
    • Terminal capacity 4 x 1mm, 4 x 1.5mm, 3 x 2.5mm or 1,6mm
    • Positive switch action
    • Does not need to e de-rated when used on fluorescent loads
    • Printed terminal markings on grey rear moulding for clearer identification
    • Only one size screwdriver required for installation
    • Flush mounting box = 861ZIC
    • Flush mounting box = 866ZIC, for extra wiring space
    • Surface mounting box = K2160WHI
    • Surface mounting box = k2140, for extra wiring space
    Certifications:
    • Confirms to IEC60669-12017 / BS EN60669-1, 2018
    • Low Voltage Directive 2014/35/EU
    • RoHS Directive 2011/65/EU
    • Amendment RoHS Directive (EU) 2015/863
    • CE Marked
    • IP Rating = IP2XD
    Specifications

    Others

    • Fixing Centers
      • 60.3 millimetre
    • Brand
      • MK Electric
    • Gangs
      • 1
    • Finish
      • White

    Others

    • Fixing Centers
      • 60.3 millimetre
    • Brand
      • MK Electric
    • Gangs
      • 1
    • Finish
      • White
    • Fixing Centers : 60.3 millimetre
    • Brand : MK Electric
    • Gangs : 1
    • Finish : White
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    K4875RPWHI
    Plate switch, 86x86mm, 60.3mm, 1G, 10A
    K4875RPWHI
    Plate switch, 86x86mm, 60.3mm, 1G, 10A
