    Flow Switches & Sensors

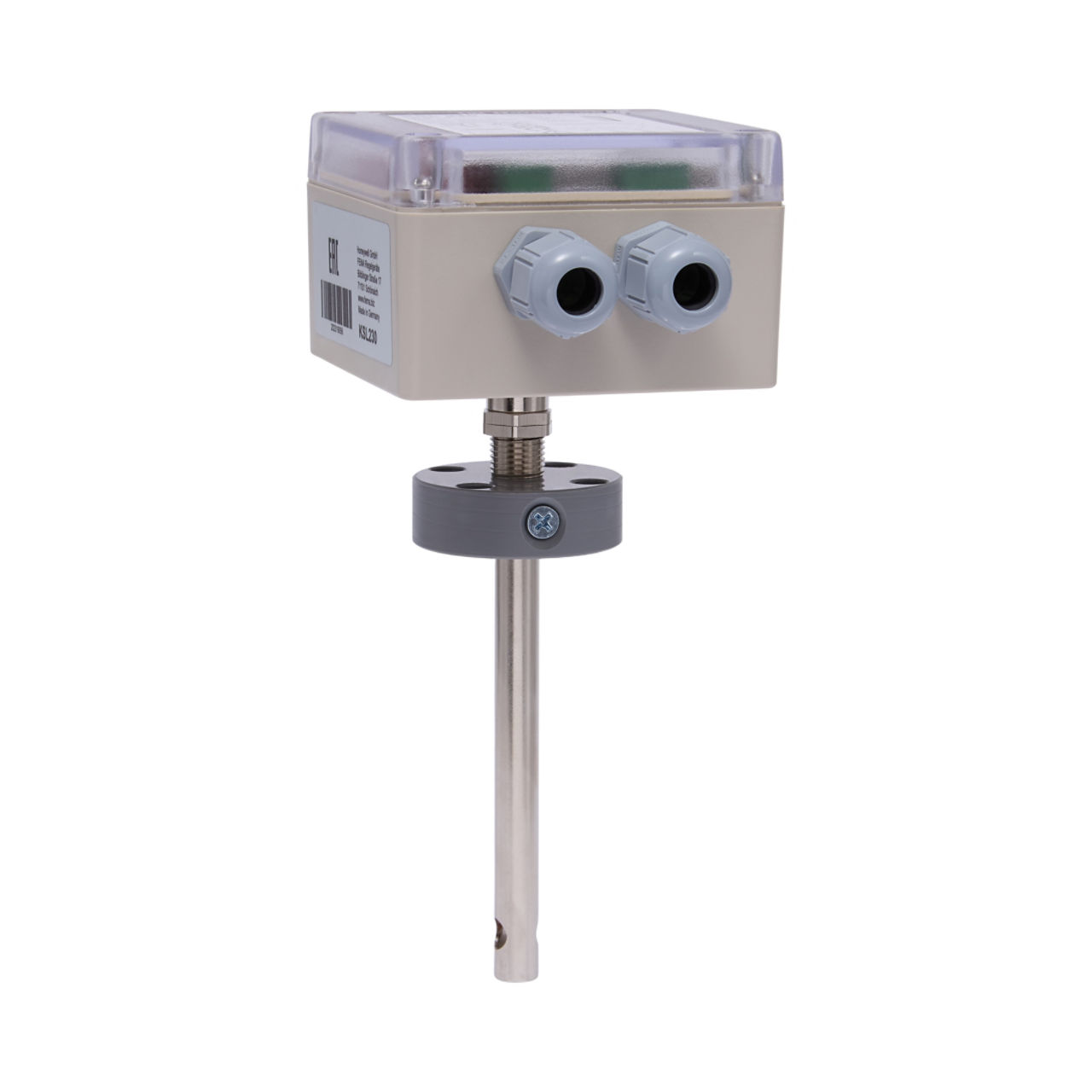

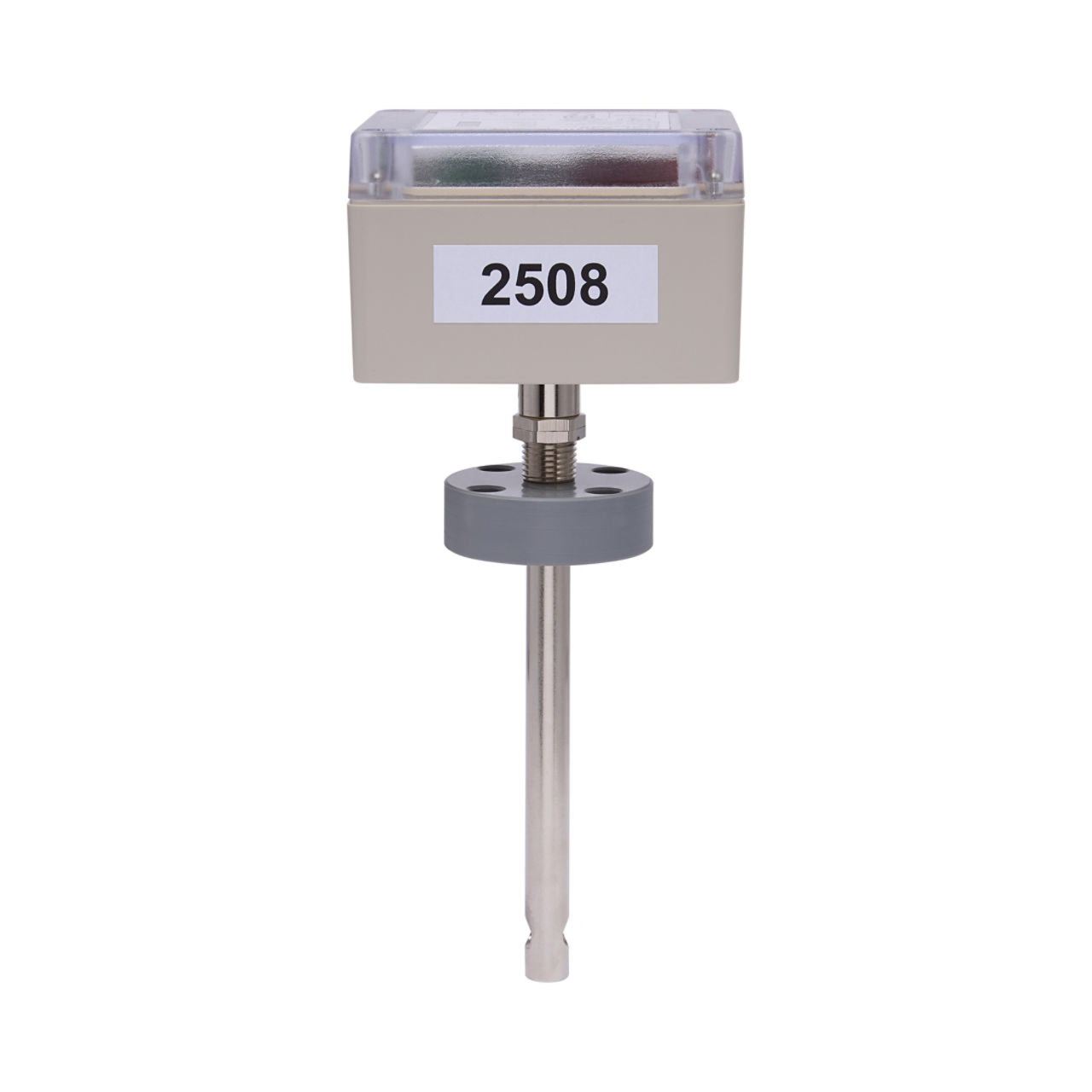

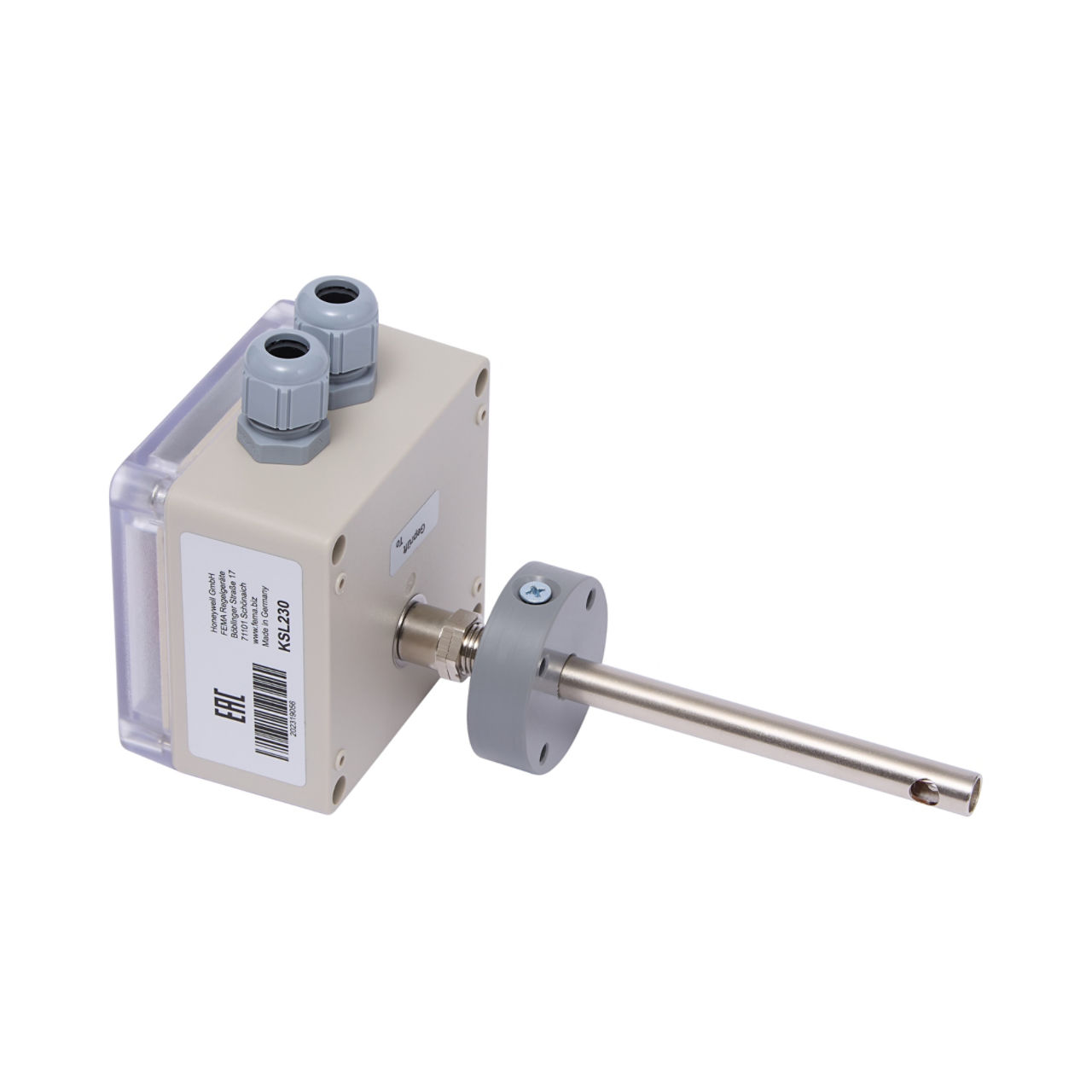

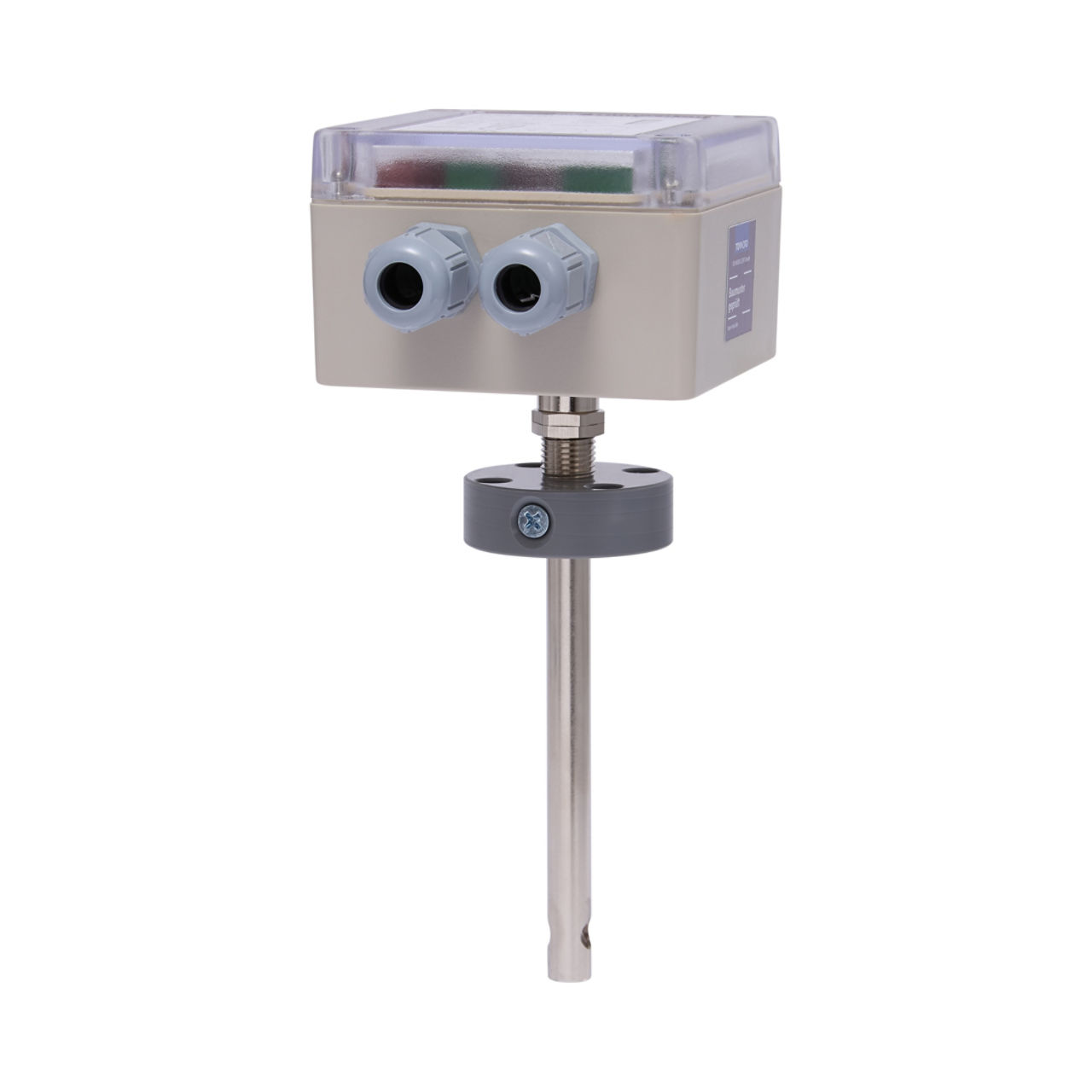

    KSL series

    These compact flow monitors reliably measure air flow in air ducts and detect any falling below a predefined switching point. The sensitivity and hence the switching point can be set very precisely with a potentiometer.

    Overview

    KSL series flow monitors reliably measure air flow in air ducts and detect any falling below a predefined switching point. The sensitivity and hence the switching point can be set very precisely with a potentiometer. The switching state is shown by a yellow LED.The sensor tip must be completely immersed in the medium. Signal evaluation and the switching process take place within the unit itself so that no additional space is required inside the switchcabinet.The sensor is easy to install and has no mechanical moving parts liable to wear. Ideal for ventilation and air-conditioning systems, where the sensor can be used to monitor fans, air intakes and butterfly valves. Other applications include clean rooms, where the sensor can be used to monitor air locks. Ideal for the medium, air and all non-combustible and non-aggressive gases.

    Specifications

    Others

    • Mounting Type
      • air duct inch
    • Switch Configuration
      • SPDT, Capacity 250 Vac, 10(2) A
    • Immersion Depth
      • 130 millimetre
    • Brand
      • FEMA
      • Honeywell
    • Maximum Setpoint Velocity
      • 30 m/s cubic metre per hour

    Others

    • Mounting Type
      • air duct inch
    • Switch Configuration
      • SPDT, Capacity 250 Vac, 10(2) A
    • Immersion Depth
      • 130 millimetre
    • Brand
      • FEMA
      • Honeywell
    • Maximum Setpoint Velocity
      • 30 m/s cubic metre per hour
    • Mounting Type : air duct inch
    • Switch Configuration : SPDT, Capacity 250 Vac, 10(2) A
    • Immersion Depth : 130 millimetre
    • Brand : FEMA|Honeywell
    • Maximum Setpoint Velocity : 30 m/s cubic metre per hour
    Others
    Name
    Description
    File Size
    Date
    Size
    KSL Compact Electronic Air Flow Switch
    application/pdf 369.33 KB
    5/14/2023
    369.33 KB
    Airflow Controller
    application/pdf 370.23 KB
    4/5/2023
    370.23 KB
    Electronic flow switch series
    application/pdf 233.27 KB
    5/14/2023
    233.27 KB
    Name
    Description
    File Size
    Date
    Size
    KSL Compact Electronic Air Flow Switch
    application/pdf 369.33 KB
    5/14/2023
    369.33 KB
    Airflow Controller
    application/pdf 370.23 KB
    4/5/2023
    370.23 KB
    Electronic flow switch series
    application/pdf 233.27 KB
    5/14/2023
    233.27 KB
    Name
    Description
    File Size
    Date
    Size
    KSL Compact Electronic Air Flow Switch
    369.33 KB
    5/14/2023
    Airflow Controller
    370.23 KB
    4/5/2023
    Electronic flow switch series
    233.27 KB
    5/14/2023
    Product Number
    Part Number
    Description
    Add to list
    KSL230
    Air flow monitor, 230 VAC; medium temperature -10…+80; switching point ; 0,1… 30ms; 10(2)A 250VAC
    KSL24
    Air flow monitor, 24 VACDC; medium temperature -10…+80; switching point ; 0,1… 30ms; 10(2)A 250VAC
