Smoke Detectors

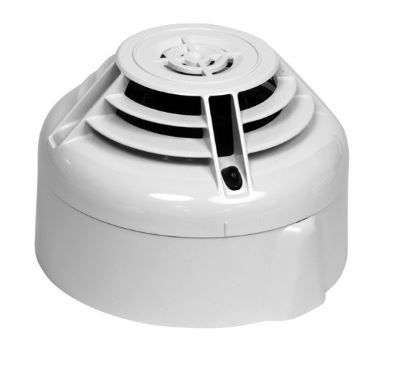

Agile Wireless Photo Thermal IR Detector

Agile Photo-Thermal-IR Detectors are Wireless Optical, Thermal & Infra-Red detector for the System Sensor Agile wireless system.

Overview

Agile Photo-Thermal-IR Detectors are Wireless Optical, Thermal & Infra-Red detector for the System Sensor Agile wireless system.

Features & Benefits:
  • Wireless mesh network bidirectional communication technology
  • Two communication paths to each wireless device
  • Average 5 year battery service life
Specifications

Others

  • Minimum Input Voltage
    • 15 voltage direct current
  • Maximum Operating Humidity
    • 93 Percentage
  • Maximum Operating Voltage
    • 32 voltage direct current
  • Minimum Operating Ambient Temperature
    • -30 degree Celsius
  • Maximum Standby Current
    • 200 µA @ 24 voltage direct current
    • 300 µA @ 24 voltage direct current
  • Material
    • ABS
    • Polycarbonate
  • Tests For
    • Smoke
    • Thermal
  • Detection Sensor Type
    • Infrared inch
    • Photoelectric inch
    • Thermal inch
  • Detection Area
    • Sampled Points
  • Brand
    • System Sensor

Others

  • Minimum Input Voltage
    • 15 voltage direct current
  • Maximum Operating Humidity
    • 93 Percentage
  • Maximum Operating Voltage
    • 32 voltage direct current
  • Minimum Operating Ambient Temperature
    • -30 degree Celsius
  • Maximum Standby Current
    • 200 µA @ 24 voltage direct current
    • 300 µA @ 24 voltage direct current
  • Material
    • ABS
    • Polycarbonate
  • Tests For
    • Smoke
    • Thermal
  • Detection Sensor Type
    • Infrared inch
    • Photoelectric inch
    • Thermal inch
  • Detection Area
    • Sampled Points
  • Brand
    • System Sensor
  • Minimum Input Voltage : 15 voltage direct current
  • Maximum Operating Humidity : 93 Percentage
  • Maximum Operating Voltage : 32 voltage direct current
  • Minimum Operating Ambient Temperature : -30 degree Celsius
  • Maximum Standby Current : 200 µA @ 24 voltage direct current|300 µA @ 24 voltage direct current
  • Material : ABS|Polycarbonate
  • Tests For : Smoke|Thermal
  • Detection Sensor Type : Infrared inch|Photoelectric inch|Thermal inch
  • Detection Area : Sampled Points
  • Brand : System Sensor
Sort
Document Title
Document Type
File Size
Product Number
SKU
Description
alt
22051TLE-RF-26
Photo Thermal IR Detector: 70x102mm: -30 to +60C: 18RF Channels: 868MHz: 400m Communication Range
SKU
Description
alt
22051TLE-RF-26
Photo Thermal IR Detector: 70x102mm: -30 to +60C: 18RF Channels: 868MHz: 400m Communication Range
