E3 Series XP95 Protocol Intelligent Loop Interface-Main Board & Expansion board

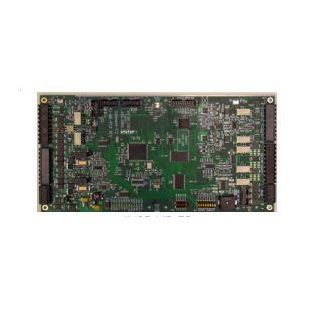

The Gamewell-FCI, Intelligent Loop Interface95-Main Board (ILI95-MB-E3) is the main circuit interface for the following E3 Series® Systems using the Apollo Protocol SLC devices.

With its state-of-the-art 32 bit RISC processor, this compact “panel on a board” provides a powerful addition to Gamewell-FCI’s single pair conductor solutions.

• The ILI95-MB-E3 provides two signaling line circuits and terminals for the connections to up to 126 Apollo detectors and modules per SLC.
• 625K baud ARCNET communications using wire, fiber, or mixed configurations for installation flexibility
• High-speed 32 bit processor and 8100 event history log
• Advanced Boolean logic-based programming such as AND, OR, NOT, time delay and calendar functions configurable via computer programming
• Supports up to (16), ASM-16 addressable switch or ANU-48 LED driver modules per ILI-MB-E3/ILI95-MB-E3
• Two Class A, Style Z or Class B, Style Y, notification appliance circuits rated at 2.0 amps. per circuit
• Integral city connection
• Flexible 115,200 baud high speed RS-232 interface
• 40 character user-defined text per device
• 15 LCD-SLP displays/annunciators, 6 LCD-E3 displays/annunciators, 5 LCD-7100/RAN-7100 remote LED annunciators per ILI-MB-E3/ILI95-MB-E3
• UL Listed for smoke control (dedicated and non-dedicated)
• FM/UL Listed for Pre-action/Deluge use

• UL Standard 864 10th Edition
• UUKL for Smoke Control
• UL2572 Second Edition
• FM Approved
• MEA FDNY
• CSFM
• City of Chicago: Class 1, Class 2 and High Rise
• City of Denver
• ISO 9001
