Current Sensors

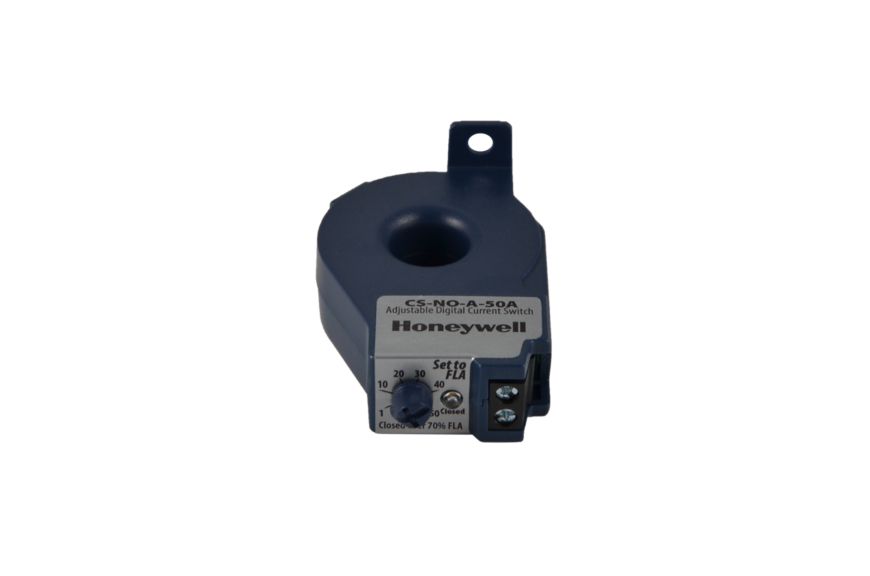

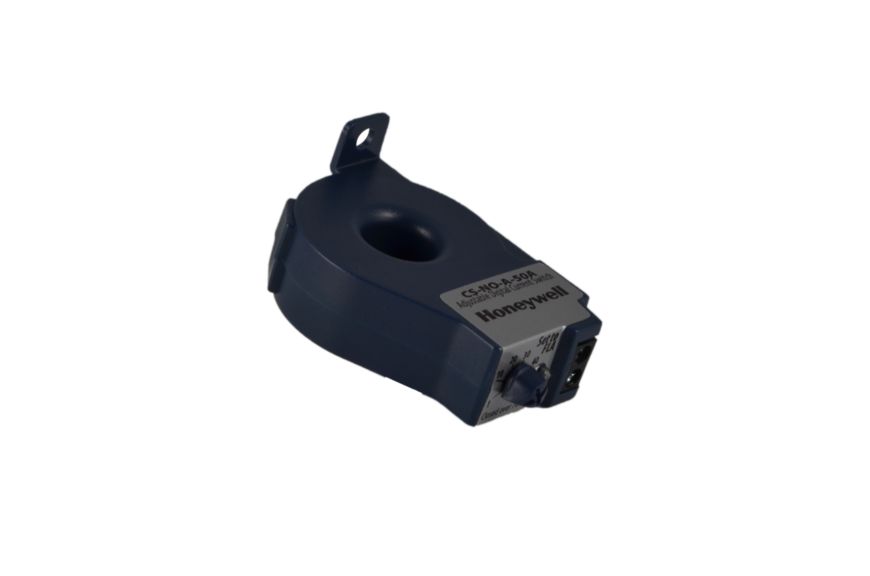

CS Series Current Switches
The CS Series Current Switches provide accurant monitoring of HVAC drives in a compact package.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Similar benefits as CSP current switches but with a more compact package. Ideal for detecting mechanical failure on fans and pumps and monitoring status of industrial processes and critical motors.
Features & Benefits:- Low amperage detection
- Prior to installation, the current threshold is preset thereby allowing the installer to avoid electrical hazards when adjusting in presence of line voltage
- Lowest installed cost
- No need to return to job site to calibrate
- Save approximately 30 minutes time for each sensor install
- Solid core; fixed and adjustable trip points
- Optional command relay
