Humidity Sensors

Series 2000 Humidity/Temperature Transducer

Series 2000 humidity and temperature transducers are highly accurate, stable humidity transducers designed for use with HVAC controllers such as the T7350 thermostat, H775 remote humidity controller, and W7760 direct digital controllers.

Overview

Series 2000 humidity and temperature transducers are highly accurate, stable humidity transducers designed for use with HVAC controllers such as the T7350 thermostat, H775 remote humidity controller, and W7760 direct digital controllers. The ceramic technology feature is not affected by condensation and provides excellent long-term stability.

Features & Benefits:
  • Ceramic technology feature overcomes the limitations of other resistance based humidity sensors that use water soluble polymer coatings.
  • Ceramic technology allows sensors to recover fully from condensation, fog, and high humidity
  • Highly accurate, repeatable, stable output with negligible hysteresis
  • Temperature compensated output
  • Zero and span trimmers, and increment/decrement recalibration feature
  • All units have selectable 4 to 20 mA, 0 to 10V DC, or 0 to 5V DC output
  • NIST traceable 2%, 3%, and 5% calibration, every sensor calibrated at 3 different points
Specifications

Others

  • Brand
    • Honeywell BMS NA
  • Product Type
    • Sensor Degrees Celsius

Others

  • Brand
    • Honeywell BMS NA
  • Product Type
    • Sensor Degrees Celsius
  • Brand : Honeywell BMS NA
  • Product Type : Sensor Degrees Celsius
Engineering Specifications
Name
Description
File Size
Date
Size
Specification Data
application/pdf 390.21 KB
5/10/2023
390.21 KB
Installation Instructions
Name
Description
File Size
Date
Size
Installation Instructions
application/pdf 638.39 KB
5/8/2023
638.39 KB
Installation Instructions for H7625A2, H7635A2, H7626A2, H7636A2 Series 2000 Humidity-Temperature Sensors (English)
application/pdf 505.57 KB
5/8/2023
505.57 KB
Data Sheet
Name
Description
File Size
Date
Size
Product Data
application/pdf 414.08 KB
5/14/2023
414.08 KB
Name
Description
File Size
Date
Size
Product Data
414.08 KB
5/14/2023
414.08 KB
Installation Instructions
638.39 KB
5/8/2023
638.39 KB
Specification Data
390.21 KB
5/10/2023
390.21 KB
Installation Instructions for H7625A2, H7635A2, H7626A2, H7636A2 Series 2000 Humidity-Temperature Sensors (English)
505.57 KB
5/8/2023
505.57 KB
Name
Description
File Size
Date
Size
Specification Data
390.21 KB
5/10/2023
Installation Instructions
638.39 KB
5/8/2023
Installation Instructions for H7625A2, H7635A2, H7626A2, H7636A2 Series 2000 Humidity-Temperature Sensors (English)
505.57 KB
5/8/2023
Product Data
414.08 KB
5/14/2023
Product Number
SKU
Description
alt
H7625A2010/U
Wall Humidity Sensor, +-2% RH, Output 4 to 20 mA or 0 to 510V DC, 20Kohm Temperature
alt

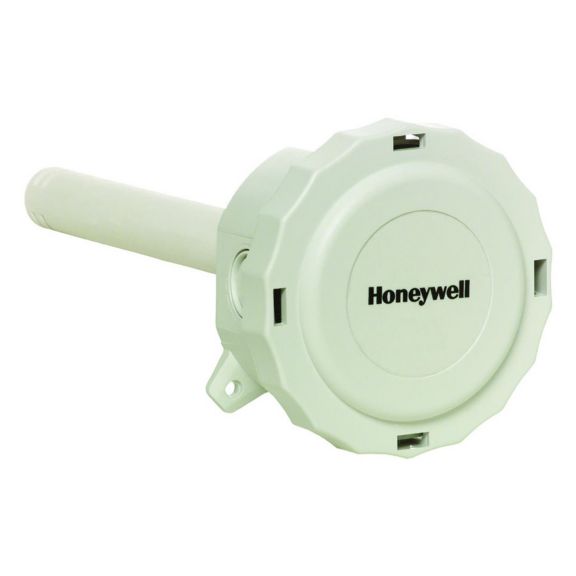

H7625B2006/U
Duct Humidity Sensor, +-2% RH, Output 4 to 20 mA or 0 tot 510V DC, 20K ohm Temperature
alt
H7635A2012/U
Wall Humidity Sensor, +-3% RH, Output 4 to 20 mA or 0 to 510V DC, 20Kohm Temperature
alt
H7635B2018/U
Duct Humidity Sensor, +-3% RH, Output 4 to 20 mA or 0 to 510V DC, 20K ohm Temperature
alt

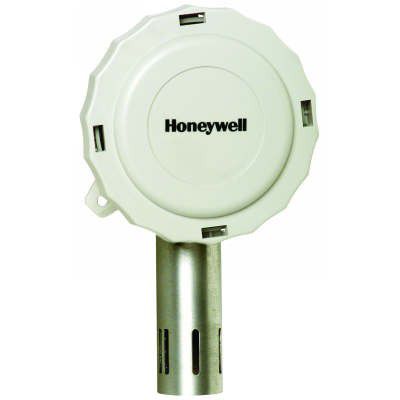

H7635C2015/U
Outdoor Humidity Sensor, +-3% RH, Output 4 to 20 mA or 0 to 510V DC, 20K ohm Temperature
alt
H7655B2014/U
Duct Humidity Sensor, 5% RH, Selectable 4 to 20 mA or 0 to 510V DC, 20K ohm Temperature
SKU
Description
alt
H7625A2010/U
Wall Humidity Sensor, +-2% RH, Output 4 to 20 mA or 0 to 510V DC, 20Kohm Temperature
alt
H7625B2006/U
Duct Humidity Sensor, +-2% RH, Output 4 to 20 mA or 0 tot 510V DC, 20K ohm Temperature
alt
H7635A2012/U
Wall Humidity Sensor, +-3% RH, Output 4 to 20 mA or 0 to 510V DC, 20Kohm Temperature
alt
H7635B2018/U
Duct Humidity Sensor, +-3% RH, Output 4 to 20 mA or 0 to 510V DC, 20K ohm Temperature
alt
H7635C2015/U
Outdoor Humidity Sensor, +-3% RH, Output 4 to 20 mA or 0 to 510V DC, 20K ohm Temperature
alt
H7655B2014/U
Duct Humidity Sensor, 5% RH, Selectable 4 to 20 mA or 0 to 510V DC, 20K ohm Temperature
