Pressure Switches & Sensors

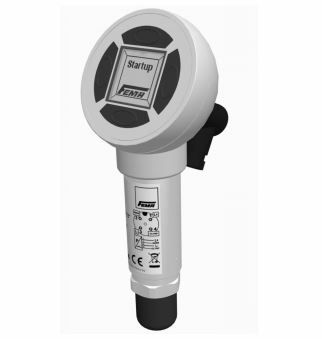

Smart Electronic Pressure Switch
Smart DCM Electronic Pressure Switches are microprocessor-controlled pressure measurement devices for relative pressures. They are suitable for wide range of applications including the precision recording, monitoring & control of system pressures.
Overview
Smart DCM Electronic Pressure Switches are microprocessor-controlled pressure measurement devices for relative pressures of -1 to +1 bar and 0 to 40 bar. They are suitable for an extremely wide range of applications, including the precision recording, monitoring, and control of system pressures. They come complete with an angled M12x1 plug and are screwed (G1/2”) directly into the line / vessel to be monitored.
Features & Benefits:- Open-collector
- Configurable as min./max./window monitor
- Adjustable drop-in/drop-out delay
- Hysteresis defined by set-point and reset-point
- LCD graphical display can be rotated (in 90° steps, by software) for better readability
- HMI can be freely swivelled 310°
- Self-monitoring electronics
- CE
- Protection rating - IP65 as per EN 60529-2
- EMC Conforms to EN 61326
- Protection class - 2 as per EN 61010
Specifications
Others
- Maximum Operating Ambient Temperature
- 70
- Minimum Operating Ambient Temperature
- -20
- Brand
- Honeywell
Others
- Maximum Operating Ambient Temperature
- 70
- Minimum Operating Ambient Temperature
- -20
- Brand
- Honeywell
- Maximum Operating Ambient Temperature : 70
- Minimum Operating Ambient Temperature : -20
- Brand : Honeywell
Others
Name
Description
File Size
Date
Size
Smart DCM-SN DIFF ELECTRONIC DIFFERENTIAL PRESSURE SWITCHES AND TRANSMITTERS
application/pdf 697.25 KB
5/11/2023
697.25 KB
Smart DCM-SN ELECTRONIC PRESSURE SWITCHES AND TRANSMITTERS
application/pdf 697.63 KB
5/11/2023
697.63 KB
China Hazardous Substance Table
application/pdf 257.23 KB
4/5/2023
257.23 KB
Name
Description
File Size
Date
Size
Smart DCM-SN DIFF ELECTRONIC DIFFERENTIAL PRESSURE SWITCHES AND TRANSMITTERS
application/pdf 697.25 KB
5/11/2023
697.25 KB
Smart DCM-SN ELECTRONIC PRESSURE SWITCHES AND TRANSMITTERS
application/pdf 697.63 KB
5/11/2023
697.63 KB
China Hazardous Substance Table
application/pdf 257.23 KB
4/5/2023
257.23 KB
Name
Description
File Size
Date
Size
Smart DCM-SN DIFF ELECTRONIC DIFFERENTIAL PRESSURE SWITCHES AND TRANSMITTERS
697.25 KB
5/11/2023
Smart DCM-SN ELECTRONIC PRESSURE SWITCHES AND TRANSMITTERS
697.63 KB
5/11/2023
