Pressure Switches & Sensors

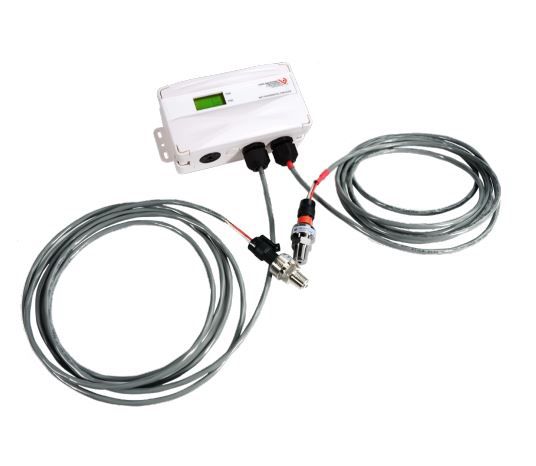

Wet Media Pressure Transducer
Wet Media Pressure Transducers allow remote pressure sensing capability using existing plumbing runs. It is used in monitoring and controlling pump differential pressure.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Wet Media Pressure Transducers allow remote pressure sensing capability using existing plumbing runs. It is used in monitoring and controlling pump differential pressure. Also it is used for CW/HW system differential pressure and chiller/boiler differential pressure drop. With no need to run plumbing lines all the way to the transducer, the installation time and cost is greatly reduced. Select either armored (6 ft.) or shielded (10 or 20 ft.) cable, depending on the application.
Features & Benefits:- Armor cable or conduit connector minimizes the need for field customization
- Remote probes reduce need for plumbing or bypass assemblies
- Switch-selectable pressure ranges
- Pushbutton zero calibration no trim pots to adjust
- Maintain accuracy and prevent callbacks with automatic zero calibration
- CE
- IP65 at sensor
- NEMA4
- RoHS
Others
- Connection Size
- 1/4 inch
- Maximum Operating Ambient Temperature
- 122 degree Fahrenheit
- 50 degree Celsius
- Minimum Operating Ambient Temperature
- -10 degree Celsius
- 14 degree Fahrenheit
- Output Signal
- 0 - 10 volt
- 0 - 5 volt
- 4 - 20 milliampere
- Brand
- Alerton
- Mounting Type
- Panel inch
- Remote Panel inch
- Connection Type
- NPT Male
Others
- Connection Size
- 1/4 inch
- Maximum Operating Ambient Temperature
- 122 degree Fahrenheit
- 50 degree Celsius
- Minimum Operating Ambient Temperature
- -10 degree Celsius
- 14 degree Fahrenheit
- Output Signal
- 0 - 10 volt
- 0 - 5 volt
- 4 - 20 milliampere
- Brand
- Alerton
- Mounting Type
- Panel inch
- Remote Panel inch
- Connection Type
- NPT Male
- Connection Size : 1/4 inch
- Maximum Operating Ambient Temperature : 122 degree Fahrenheit|50 degree Celsius
- Minimum Operating Ambient Temperature : -10 degree Celsius|14 degree Fahrenheit
- Output Signal : 0 - 10 volt|0 - 5 volt|4 - 20 milliampere
- Brand : Alerton
- Mounting Type : Panel inch|Remote Panel inch
- Connection Type : NPT Male
