Wet/Wet Differential Pressure Transducer
The Model 230 is Setra’s highest accuracy solution for monitoring differential pressure in wet-to-wet applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.

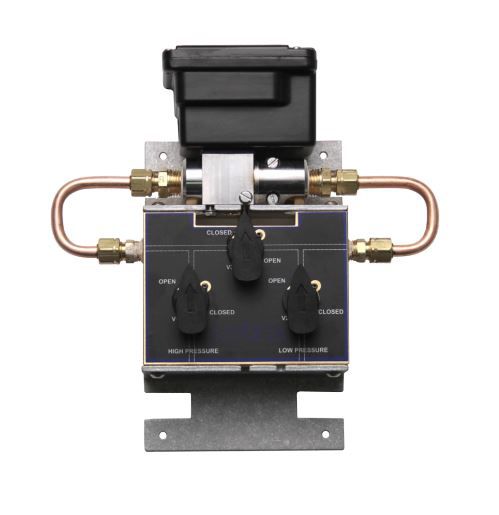

The Model 230 is Setra’s highest accuracy solution for monitoring differential pressure in wet-to-wet applications. Its single diaphragm design enables a true wet-to-wet differential pressure measurement with superior ±0.25% FS accuracy compared to competitive units which calculate differential pressure using two single point pressure sensors. The stainless steel capacitive sensor provides a highly accurate, linear analog output proportional to the pressure over a wide temperature range. The 230 is offered with an optional 3 or 5 valve machined brass manifold for ease of installation and maintenance.
Features & Benefits:- Only true wet-to-wet differential pressure transducer on the market
- ±0.25% FS Accuracy
- Available to 1 PSID with 350 PSI Line Pressure
- No Liquid Fill Diaphragm
- NEMA 4 Rated Housing
- Low Line Pressure Effect
- Fast Response Time
- Gas & Liquid Compatible
- CE
- RoHS
Others
- Output Signal
- 4 - 20 milliampere
- Connection Size
- 1/4 inch
- Minimum Storage Temperature
- -54°C
- -65°F
- Minimum Operating Ambient Temperature
- -18 degree Celsius
- 0 degree Fahrenheit
- Maximum Storage Temperature
- 121 degree Celsius
- 250 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 175 degree Fahrenheit
- 80 degree Celsius
- Brand
- Alerton
- Pressure Type
- Differential
- Mounting Type
- Bracket inch
- Connection Type
- NPT
Others
- Output Signal
- 4 - 20 milliampere
- Connection Size
- 1/4 inch
- Minimum Storage Temperature
- -54°C
- -65°F
- Minimum Operating Ambient Temperature
- -18 degree Celsius
- 0 degree Fahrenheit
- Maximum Storage Temperature
- 121 degree Celsius
- 250 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 175 degree Fahrenheit
- 80 degree Celsius
- Brand
- Alerton
- Pressure Type
- Differential
- Mounting Type
- Bracket inch
- Connection Type
- NPT
- Output Signal : 4 - 20 milliampere
- Connection Size : 1/4 inch
- Minimum Storage Temperature : -54°C|-65°F
- Minimum Operating Ambient Temperature : -18 degree Celsius|0 degree Fahrenheit
- Maximum Storage Temperature : 121 degree Celsius|250 degree Fahrenheit
- Maximum Operating Ambient Temperature : 175 degree Fahrenheit|80 degree Celsius
- Brand : Alerton
- Pressure Type : Differential
- Mounting Type : Bracket inch
- Connection Type : NPT
