    Haut-parleurs

    Ceiling Loudspeaker

    Ceiling mount loudspeakers in plastic coated metal work with high efficiency and moisture proof broadband loudspeaker chassis.

    Aperçu

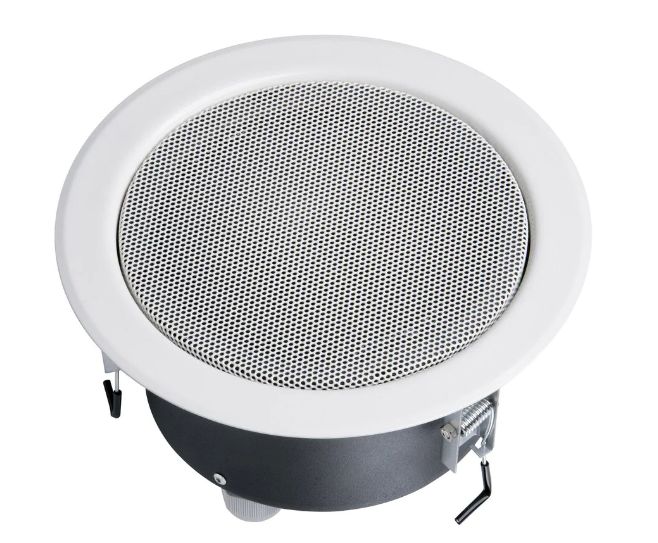

    Modern ceiling installation loudspeaker in plastic-coated metal design (RAL 9010) with high efficiency and moisture-proof broadband loudspeaker chassis, certified as per EN54- 24.

    DL 06-130/T-EN54 (130 mm chassis) has a maximum power of 6 W and can be modified to 3 W or 1.5 W if required. Spring clamps with cropped leg spring, increased clamp force and shortened tension distance allow you to assemble it quickly and easily. A smart inner ring mounting prevents the grille from collapsing even under high load due to environmental influences. For additional safety, this EN54-24 ceiling installation loudspeaker is equipped with a ceramic clamp and thermal fuse, and fitted with a fire dome. It has a PG16 cable outlet and blind cover. The fire dome prevents the suction action of the chimney effect with suspended ceilings in case of fire, after some of the loudspeaker membrane has been burnt through.

    Autres
    prénom
    La description
    Taille de fichier
    Date
    Taille
    Sistemas De Aviso Publico Y Alarma Por Voz Catalog
    application/pdf 6.48 MB
    6/1/2019
    6.48 MB
    Altavoces Catalog
    application/pdf 497.8 KB
    6/1/2019
    497.8 KB
    prénom
    La description
    Taille de fichier
    Date
    Taille
    Sistemas De Aviso Publico Y Alarma Por Voz Catalog
    application/pdf 6.48 MB
    6/1/2019
    6.48 MB
    Altavoces Catalog
    application/pdf 497.8 KB
    6/1/2019
    497.8 KB
    prénom
    La description
    Taille de fichier
    Date
    Taille
    Sistemas De Aviso Publico Y Alarma Por Voz Catalog
    6.48 MB
    6/1/2019
    Altavoces Catalog
    497.8 KB
    6/1/2019
    Product Number
    Part Number
    Description
    Add to list
    582400
    Haut-parleur à encastrer au plafond 6W DL 06-130T-EN54
    582401
    Haut-parleur à encastrer au plafond 6W DL 06-165T-EN54
    582402
    Haut-parleur à encastrer au plafond 10W DL 10-200T-EN54
    582403
    Haut-parleur à encastrer au plafond 20W DL 20-130T-EN54
    582404
    Haut-parleur à encastrer au plafond 10W DL 10-165T plus-EN54
    582407
    Haut-parleur à encastrer au plafond 6W DL-E 06-130T-EN54
