Commutateurs et capteurs de pression

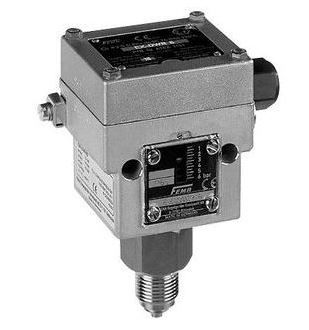

Ex-DCM / Ex-DNM Pressostats et contrôleurs de pression pour surpression
Ce pressostat universel peut être utilisé dans la construction mécanique générale et l'industrie des machines d'imprimerie, ainsi qu'en pneumatique et en hydraulique.
Aperçu
Les pressostats et contrôleurs de pression pour surpression Ex-DCM / Ex-DNM sont des pressostats universels qui peuvent être utilisés dans la construction mécanique générale et l'industrie des machines d'imprimerie, ainsi qu'en pneumatique et en hydraulique. Ils sont dotés d'un boîtier robuste en aluminium moulé sous pression GD Al Si 12 résistant à l'eau de mer. Les types Ex-DCM ont un différentiel de commutation non réglable et les types Ex-DNM ont un différentiel de commutation réglable.
Features & Benefits:- Les séries Ex-DCM/Ex-DNM sont calibrées pour la chute de pression. Cela signifie que la pression de commutation réglable
- Cela signifie que la pression de commutation réglable sur l'échelle correspond au point de commutation à la pression descendante.
- Le point de réinitialisation est plus élevé de la valeur du différentiel de commutation.
- SIL2 selon IEC 61508-2
- IBExU12ATEX1040 selon ATEX 2014/34/EU
- IECEx IBE 14.0077
Caractéristiques
Autres
- Minimum Operating Ambient Temperature
- -20
- Maximum Operating Ambient Temperature
- 60
- Pressure Type
- Overpressure Relative
- overdruk relatief
- sobrepresión relativa
- sovrapressione relativa
- surpression relative
- Überdruck relativ
- Switch Configuration
- 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC
- 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC
- SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
- SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
- Brand
- FEMA
- Honeywell
- Connection Type
- Internal Thread G1/4 in, External Thread G1/2 in
- Scale Calibration
- falling pressure
Autres
- Minimum Operating Ambient Temperature
- -20
- Maximum Operating Ambient Temperature
- 60
- Pressure Type
- Overpressure Relative
- overdruk relatief
- sobrepresión relativa
- sovrapressione relativa
- surpression relative
- Überdruck relativ
- Switch Configuration
- 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC
- 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC
- SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
- SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
- Brand
- FEMA
- Honeywell
- Connection Type
- Internal Thread G1/4 in, External Thread G1/2 in
- Scale Calibration
- falling pressure
- Minimum Operating Ambient Temperature : -20
- Maximum Operating Ambient Temperature : 60
- Pressure Type : Overpressure Relative|overdruk relatief|sobrepresión relativa|sovrapressione relativa|surpression relative|Überdruck relativ
- Switch Configuration : 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC|3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC|SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive|SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
- Brand : FEMA|Honeywell
- Connection Type : Internal Thread G1/4 in, External Thread G1/2 in
- Scale Calibration : falling pressure
Autres
Nom
La description
Taille du fichier
Date
Taille
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Norwegian)
application/pdf 549.86 KB
7/19/2023
549.86 KB
EU - Declaration of Conformity
application/pdf 263.09 KB
7/19/2023
263.09 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM(Danish)
application/pdf 550.91 KB
7/19/2023
550.91 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (French)
application/pdf 571.56 KB
7/19/2023
571.56 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Chinese)
application/pdf 740.25 KB
7/19/2023
740.25 KB
Safety Manual - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (German and English)
application/pdf 612.55 KB
7/19/2023
612.55 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Danish)
application/pdf 556.92 KB
7/19/2023
556.92 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Spanish)
application/pdf 554.73 KB
7/19/2023
554.73 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Polish)
application/pdf 641.86 KB
7/19/2023
641.86 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Italian)
application/pdf 560.06 KB
7/19/2023
560.06 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Russian)
application/pdf 660.12 KB
7/19/2023
660.12 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Estonian)
application/pdf 561.08 KB
7/19/2023
561.08 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Czech)
application/pdf 1.11 MB
7/19/2023
1.11 MB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (German and English)
application/pdf 1.9 MB
7/19/2023
1.9 MB
Nom
La description
Taille du fichier
Date
Taille
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Norwegian)
application/pdf 549.86 KB
7/19/2023
549.86 KB
EU - Declaration of Conformity
application/pdf 263.09 KB
7/19/2023
263.09 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM(Danish)
application/pdf 550.91 KB
7/19/2023
550.91 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (French)
application/pdf 571.56 KB
7/19/2023
571.56 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Chinese)
application/pdf 740.25 KB
7/19/2023
740.25 KB
Safety Manual - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (German and English)
application/pdf 612.55 KB
7/19/2023
612.55 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Danish)
application/pdf 556.92 KB
7/19/2023
556.92 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Spanish)
application/pdf 554.73 KB
7/19/2023
554.73 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Polish)
application/pdf 641.86 KB
7/19/2023
641.86 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Italian)
application/pdf 560.06 KB
7/19/2023
560.06 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Russian)
application/pdf 660.12 KB
7/19/2023
660.12 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Estonian)
application/pdf 561.08 KB
7/19/2023
561.08 KB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Czech)
application/pdf 1.11 MB
7/19/2023
1.11 MB
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (German and English)
application/pdf 1.9 MB
7/19/2023
1.9 MB
Nom
La description
Taille du fichier
Date
Taille
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Norwegian)
549.86 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM(Danish)
550.91 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (French)
571.56 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Chinese)
740.25 KB
7/19/2023
Safety Manual - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (German and English)
612.55 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Danish)
556.92 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Spanish)
554.73 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Polish)
641.86 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Italian)
560.06 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Russian)
660.12 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Estonian)
561.08 KB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (Czech)
1.11 MB
7/19/2023
Installation and Operating Instructions - DCM,DNM,DNS,VCM,VNM,VNS,DDCM,EX-DCM,EX-DNM,EX-DNS,EX-VNS,EX-DDCM,EX-VCM,EX-VNM (German and English)
1.9 MB
7/19/2023
Product Number
SKU
Description
EX-DCM4016
Interrupteur à pression EX, 2 A inductif, 3 A résistif
EX-DNM10
Pressostats universels Fema EX-DNM, IP65, -20C à 60C, 1-10 Bar Range, 0.3 Bar Switching Differential,
EX-DNM10-S
EX PRESSURE SWITCH
EX-DNM63
Pressostats universels Fema EX-DNM, IP65, -20C à 60C, 16-63 bar, 1,0 bar de différentiel de commutation,
EX-DNM63-S
EX PRESSURE SWITCH
SKU
Description
EX-DCM4016
Interrupteur à pression EX, 2 A inductif, 3 A résistif
EX-DNM10
Pressostats universels Fema EX-DNM, IP65, -20C à 60C, 1-10 Bar Range, 0.3 Bar Switching Differential,
EX-DNM10-S
EX PRESSURE SWITCH
EX-DNM63
Pressostats universels Fema EX-DNM, IP65, -20C à 60C, 16-63 bar, 1,0 bar de différentiel de commutation,
EX-DNM63-S
EX PRESSURE SWITCH
