Notifier INSPIRE RPTR 4.3

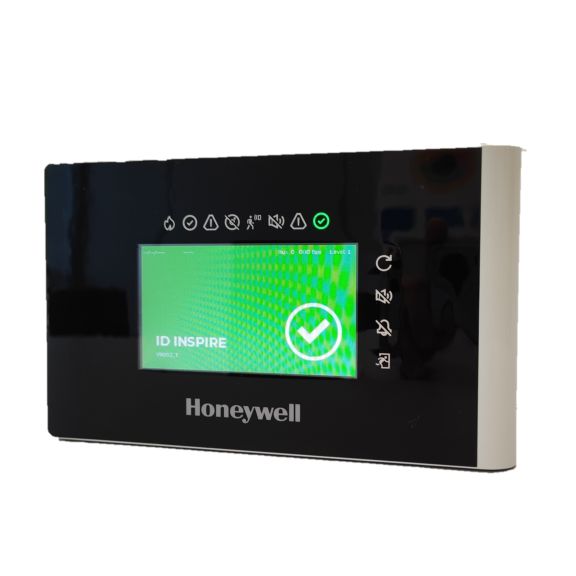

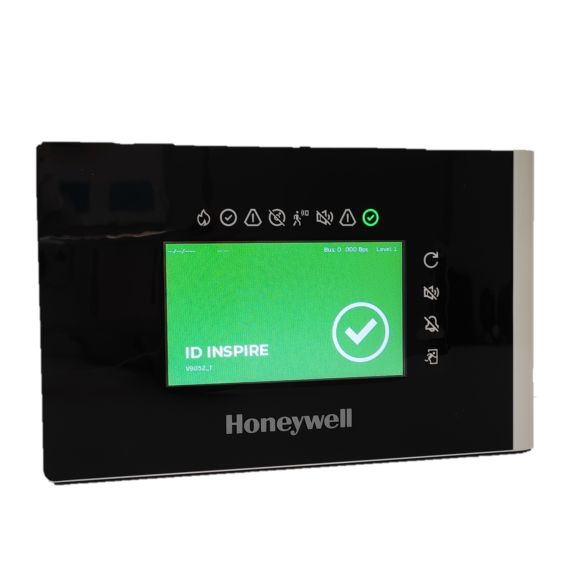

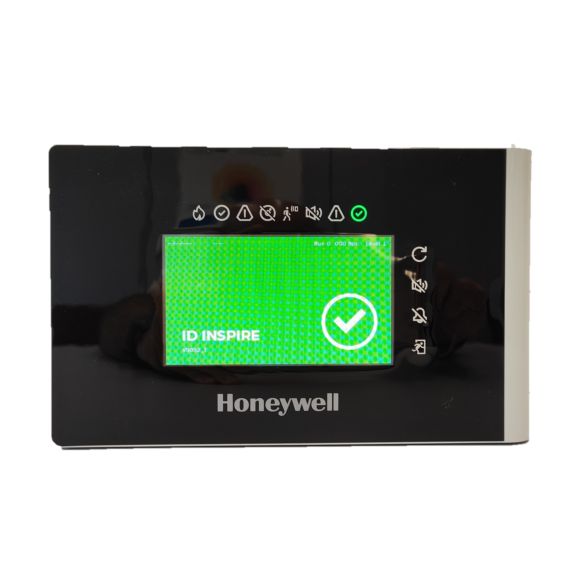

Notifier HOA-335-043 compact repeater panel allows for the remote reporting of visual and audible signals of the various states of INSPIRE (E10 and E15) Fire Control Panels using the RS-485 serial line.They can be powered by the panel’s internal power supply or by an external PSU. HOA-335 Repeater is intended for surface/wall mounting, no flush installation means are provided.Events are displayed on a color 4,3” touchscreen, with pictograms and colored background, filtered per event type (alarm, fault, disabled, etc.) and by zone.

• 4,3” 480x272 pixels. Colored touchscreen to display events, zones, labels and pictograms
• Identification of events by pictogram and panel text description
• Display of user events with time stamp and device description.
• Very simple programming and configuration
• Monitoring of connections with the central fire panel
• 5 Event tabs: Alarms, Faults, disablements, tests and technical alarms.
• 8 functional Leds
• 4 actions buttons: reset, internal buzzer mute, silence sounders and resound and evacuation
• Zone and event log filter.
• USB Type B for firmware update and event log for future versions
• Distance from the panel to the first repeater HOA: 1 km, extendable from each repeater to the next one as the signal is regenerated in each unit.
• Max 16 HOA units per central panel.
• Languages available: English, Spanish, Italian

• CE
