Multi-Criteria/Multi-Sensor Detectors

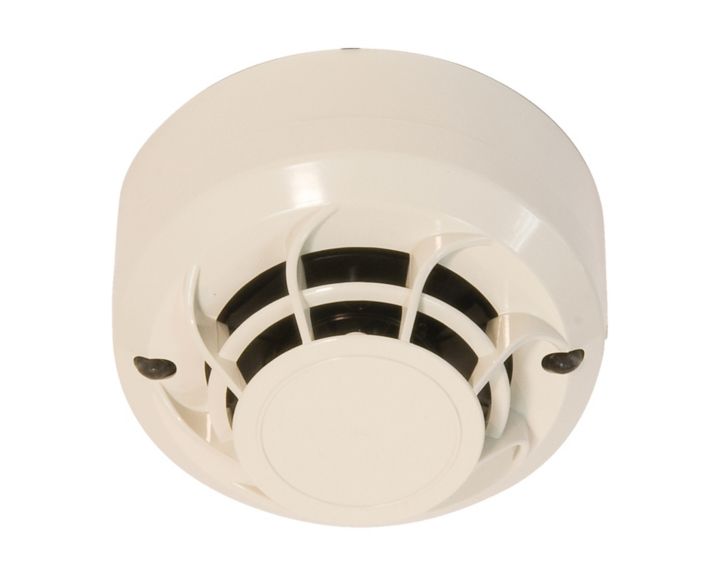

Optical Thermal Multi Sensor with isolator, Morley-IAS

Der MI-PTSE Photo Thermischer Melder nutzt thermische Unterstützung für den Kern photoelektrischen Rauchmelder, um verbesserte Falschalarm Immunität und schnellere Reaktion auf eine breite Palette von beginnenden Bränden zu geben.

Overview

The multi-criteria multi-sensor MI-PTSE Photo Thermal detector uses thermal assistance to the core photoelectric smoke detector to give enhanced false alarm immunity and faster response to a wide range of incipient fires. The plug-in unit combines two separate sensing elements that are managed by embedded software to act as a single unit.

For smoke detection the MI-PTSE incorporates an improved sensing chamber design, linked to sophisticated processing circuitry with smoothing filters. This helps to eliminate the transient environmental noise conditions which can be the cause of false alarms. The sensor's performance is further enhanced by the integration of special algorithms which automatically compensate for contamination of the sensing chamber. This enables the sensor to provide a consistent level of sensitivity and increased immunity to unwanted alarms.

The thermal detection function combines thermistor technology with a software corrected linear temperature response.

Features & Benefits:
  • Faster Response to incipient fires
  • Enhanced False alarm immunity
  • Optical and thermal sensors
  • Microprocessor controlled with internal algorithms
  • Enhanced signal processing for improved stability
Certifications:
  • 0786-CPR-20738 for EN54-5/7/17
  • G209102
Specifications

Others

  • Brand
    • Morley-IAS
    • System Sensor

Others

  • Brand
    • Morley-IAS
    • System Sensor
  • Brand : Morley-IAS|System Sensor
Others
Name
Description
File Size
Date
Size
MI-PTSE-S2I Melder f�r den DXc - Ringbus
application/pdf 852.39 KB
5/14/2023
852.39 KB
Sistemas Analógicos Catalog
application/pdf 839.05 KB
839.05 KB
MI-PTSE Detector analógico optico-termico Data Sheet
application/pdf 634.43 KB
6/1/2017
634.43 KB
SISTEMA DE DETECCIÓN DE INCENDIOS Engineering Specifications
application/msword 375.5 KB
1/30/2024
375.5 KB
Detección de incendios Catalog
application/pdf 3.44 MB
11/1/2016
3.44 MB
Name
Description
File Size
Date
Size
MI-PTSE-S2I Melder f�r den DXc - Ringbus
852.39 KB
5/14/2023
852.39 KB
Sistemas Analógicos Catalog
839.05 KB
839.05 KB
MI-PTSE Detector analógico optico-termico Data Sheet
634.43 KB
6/1/2017
634.43 KB
SISTEMA DE DETECCIÓN DE INCENDIOS Engineering Specifications
375.5 KB
1/30/2024
375.5 KB
Detección de incendios Catalog
3.44 MB
11/1/2016
3.44 MB
Name
Description
File Size
Date
Size
MI-PTSE-S2I Melder f�r den DXc - Ringbus
852.39 KB
5/14/2023
Sistemas Analógicos Catalog
839.05 KB
MI-PTSE Detector analógico optico-termico Data Sheet
634.43 KB
6/1/2017
SISTEMA DE DETECCIÓN DE INCENDIOS Engineering Specifications
375.5 KB
1/30/2024
Detección de incendios Catalog
3.44 MB
11/1/2016
