Air Velocity Sensors

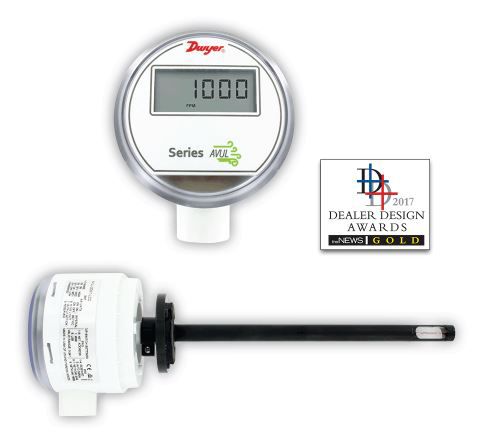

Air Velocity AVUL Transmitter
Air Velocity Transmitters quickly and accurately measures air velocity or volumetric flow in imperial or metric units. Simultaneous current and voltage outputs on all models.
Overview
Air Velocity Transmitters quickly and accurately measures air velocity or volumetric flow in imperial or metric units. Simultaneous current and voltage outputs on all models. The output range, units, and 0 to 5/10 VDC output can be configured via local DIP switches. The optional integral display, or the portable remote display tool, provide a convenient way to locally monitor process values and configure the unit.
Features & Benefits:- Sensing elements have been coated with an engineered conformal coating to ensure durability and longevity
- Field selectable ranges can be quickly configured without power to the unit
- CE
- BTL
Specifications
Others
- Minimum Operating Ambient Temperature
- 0 degree Celsius
- 32 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 122 degree Fahrenheit
- 50 degree Celsius
- Brand
- Alerton
- Maximum Output Current
- 20 milliampere
- Serviced Media
- Clean Air and Non-Combustible
- Compatible Gases
- Minimum Output Voltage
- 0 voltage direct current
- Minimum Output Current
- 4 milliampere
- Setpoint Device
- Digital Push Button
- IP Rating
- IP66
- Mounting Type
- Duct inch
- Current Draw
- 60 milliampere
- Maximum Output Voltage
- 10 voltage direct current
- 5 voltage direct current
- Maximum Operating Humidity
- 95 (Non-Condensing) percentage relative humidity
Others
- Minimum Operating Ambient Temperature
- 0 degree Celsius
- 32 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 122 degree Fahrenheit
- 50 degree Celsius
- Brand
- Alerton
- Maximum Output Current
- 20 milliampere
- Serviced Media
- Clean Air and Non-Combustible
- Compatible Gases
- Minimum Output Voltage
- 0 voltage direct current
- Minimum Output Current
- 4 milliampere
- Setpoint Device
- Digital Push Button
- IP Rating
- IP66
- Mounting Type
- Duct inch
- Current Draw
- 60 milliampere
- Maximum Output Voltage
- 10 voltage direct current
- 5 voltage direct current
- Maximum Operating Humidity
- 95 (Non-Condensing) percentage relative humidity
- Minimum Operating Ambient Temperature : 0 degree Celsius|32 degree Fahrenheit
- Maximum Operating Ambient Temperature : 122 degree Fahrenheit|50 degree Celsius
- Brand : Alerton
- Maximum Output Current : 20 milliampere
- Serviced Media : Clean Air and Non-Combustible|Compatible Gases
- Minimum Output Voltage : 0 voltage direct current
- Minimum Output Current : 4 milliampere
- Setpoint Device : Digital Push Button
- IP Rating : IP66
- Mounting Type : Duct inch
- Current Draw : 60 milliampere
- Maximum Output Voltage : 10 voltage direct current|5 voltage direct current
- Maximum Operating Humidity : 95 (Non-Condensing) percentage relative humidity
