Contact Sensors

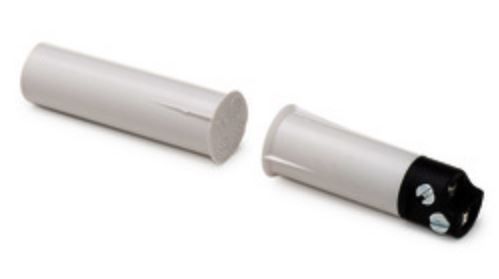

Staggered T Contacts

Staggered T Terminals ensure a secure electrical connection,Easier wiring and faster installations. Magnetic Contact with Screw Terminals eliminates wire splicing and soldering

Exclusive Staggered “T” terminals eliminate splicing and soldering, and no special screwdrivers are required. It’s the industry standard-sized contact from the company with the highest standards in the industry. The staggered design means larger screw terminals and easier wiring. A way to fit larger screw terminals without altering the industry-standard 3/8 diameter case size–and without having to use any special screwdrivers.

Features & Benefits:
  • Innovative design makes installation simple
  • Ensure a secure electrical connection
  • Standard gap: 3/4 (19mm)
  • Form A (SPST) reed switch/closed when energized with actuator magnet
  • 24 V DC at 100mA continuous switching rating
  • Screw terminals for wire gauge of 24 to 18AWG. Solid or stranded wire.
Certifications:
  • L/STGT/D September 2008

Others

  • Contact Rating
    • 100 mA @ 28 voltage direct current
  • Maximum Gap Distance
    • 19 millimetre
    • 3/4 inch
  • Contact Configuration
    • Form A
  • Switch Configuration
    • SPST
  • Switch Type
    • Reed

Others

  • Contact Rating
    • 100 mA @ 28 voltage direct current
  • Maximum Gap Distance
    • 19 millimetre
    • 3/4 inch
  • Contact Configuration
    • Form A
  • Switch Configuration
    • SPST
  • Switch Type
    • Reed
  • Contact Configuration : Form A
  • Switch Configuration : SPST
  • Switch Type : Reed
  • Contact Rating : 100 mA @ 28 voltage direct current
  • Maximum Gap Distance : 19 millimetre|3/4 inch
Others
Name
Description
File Size
Date
Size
RUcertificateUSAE63B00832
application/pdf 467.77 KB
2/14/2022
467.77 KB
CE Declaration of Conformity
application/pdf 86.6 KB
2/14/2022
86.6 KB
CE Declaration of Conformity
application/pdf 86.6 KB
2/14/2022
86.6 KB
Data Sheet
Name
Description
File Size
Date
Size
3-8" Recessed Contactwith Screw Terminals
application/pdf 124.11 KB
4/7/2022
124.11 KB
Catalog
Name
Description
File Size
Date
Size
Honeywell Intrusion Systems (11.8 MB pdf)
application/pdf 11.04 MB
2/17/2022
11.04 MB
Video Systems, Access Control & Intrusion Distribution Dealer Catalog 2008 - 2009
application/pdf 4.22 MB
4/7/2022
4.22 MB
Name
Description
File Size
Date
Size
RUcertificateUSAE63B00832
467.77 KB
2/14/2022
467.77 KB
CE Declaration of Conformity
86.6 KB
2/14/2022
86.6 KB
Honeywell Intrusion Systems (11.8 MB pdf)
11.04 MB
2/17/2022
11.04 MB
3-8" Recessed Contactwith Screw Terminals
124.11 KB
4/7/2022
124.11 KB
Video Systems, Access Control & Intrusion Distribution Dealer Catalog 2008 - 2009
4.22 MB
4/7/2022
4.22 MB
CE Declaration of Conformity
86.6 KB
2/14/2022
86.6 KB
Name
Description
File Size
Date
Size
RUcertificateUSAE63B00832
467.77 KB
2/14/2022
CE Declaration of Conformity
86.6 KB
2/14/2022
CE Declaration of Conformity
86.6 KB
2/14/2022
3-8" Recessed Contactwith Screw Terminals
124.11 KB
4/7/2022
Honeywell Intrusion Systems (11.8 MB pdf)
11.04 MB
2/17/2022
Video Systems, Access Control & Intrusion Distribution Dealer Catalog 2008 - 2009
4.22 MB
4/7/2022
SKU
Description
alt
944T-WH
Staggered T contacts,3/8in Magnetic Contact with Screw Terminals,100ma @ 28V DC, White Colour.
SKU
Description
alt
944T-WH
Staggered T contacts,3/8in Magnetic Contact with Screw Terminals,100ma @ 28V DC, White Colour.
