I/O Modules

IQ4 I/O Modules

The I/O Modules are designed for use with the IQ4E controller, offering additional input and output channel connection points. These modules are also compatible with IQ3XCITE/96, IQ3XCITE/128 controllers and XCITE/IO modules.

Overview
The I/O Modules are designed for use with the IQ4E controller, offering additional input and output channel connection points. These modules are also compatible with IQ3XCITE/96, IQ3XCITE/128 controllers and XCITE/IO modules. The expansion modules provide a comprehensive choice of I/O types including digital inputs (DI), universal inputs/outputs (UIO) and digital/relay outputs (DO). Modules can be located up to 300m (328 yards) from the controller.Features & Benefits:
  • 16DI, 8DO, 4DO and 8UIO options
  • Up to 30 I/O modules per controller
  • Up to 192 I/O channels
  • Versatile I/O bus allows convenient placement of modules
  • Up to 300 meters
  • Powered from controller I/O bus or external PSU
  • Two part I/O connectors for easy installation/commissioning
  • Small footprint with TS35 DIN rail mounting
  • DIN 19 size 2 standard enclosure
Specifications

Others

  • Transmission Distance
    • 300 metre
  • Minimum Operating Humidity
    • 0 (Non-Condensing) percentage relative humidity
  • Maximum Operating Humidity
    • 90 (Non-Condensing) percentage relative humidity
  • Maximum Operating Voltage
    • 24 voltage direct current
  • Wire Size
    • 0.14 - 2.5 mm²
    • 22 - 12 AWG
  • Maximum Operating Ambient Temperature
    • 131 degree Fahrenheit
    • 55 degree Celsius
  • Minimum Operating Ambient Temperature
    • -13 degree Fahrenheit
    • -25 degree Celsius
  • Product Type
    • I/O Cards & Modules Degrees Celsius
  • Maximum Wire Gauge
    • 12 AWG square millimetre
    • 2.5 mm² square millimetre
  • Brand
    • Honeywell
  • Type
    • I/O Module
  • Approved Location
    • CB Certificate : TBA ampere
    • CSA22.2 No. 205-M1983 ampere
    • EMC : EN61326-1:2013 ampere
    • Safety : EN61010-1:2010 ampere
    • UL60730 ampere
  • Mounting Type
    • DIN Rail inch
  • Minimum Wire Gauge
    • 0.14 mm²
    • 22 AWG
  • LED Circuit-Status Indicators
    • 5
  • Housing Color
    • White
  • Total Ports
    • 8
  • Terminal Type
    • Cage Clamp Screw Terminal inch
  • For Use With
    • IQ™3xcite I/O millimetre
  • Concentrator Type
    • Wired

Others

  • Transmission Distance
    • 300 metre
  • Minimum Operating Humidity
    • 0 (Non-Condensing) percentage relative humidity
  • Maximum Operating Humidity
    • 90 (Non-Condensing) percentage relative humidity
  • Maximum Operating Voltage
    • 24 voltage direct current
  • Wire Size
    • 0.14 - 2.5 mm²
    • 22 - 12 AWG
  • Maximum Operating Ambient Temperature
    • 131 degree Fahrenheit
    • 55 degree Celsius
  • Minimum Operating Ambient Temperature
    • -13 degree Fahrenheit
    • -25 degree Celsius
  • Product Type
    • I/O Cards & Modules Degrees Celsius
  • Maximum Wire Gauge
    • 12 AWG square millimetre
    • 2.5 mm² square millimetre
  • Brand
    • Honeywell
  • Type
    • I/O Module
  • Approved Location
    • CB Certificate : TBA ampere
    • CSA22.2 No. 205-M1983 ampere
    • EMC : EN61326-1:2013 ampere
    • Safety : EN61010-1:2010 ampere
    • UL60730 ampere
  • Mounting Type
    • DIN Rail inch
  • Minimum Wire Gauge
    • 0.14 mm²
    • 22 AWG
  • LED Circuit-Status Indicators
    • 5
  • Housing Color
    • White
  • Total Ports
    • 8
  • Terminal Type
    • Cage Clamp Screw Terminal inch
  • For Use With
    • IQ™3xcite I/O millimetre
  • Concentrator Type
    • Wired
  • Transmission Distance : 300 metre
  • Minimum Operating Humidity : 0 (Non-Condensing) percentage relative humidity
  • Maximum Operating Humidity : 90 (Non-Condensing) percentage relative humidity
  • Maximum Operating Voltage : 24 voltage direct current
  • Wire Size : 0.14 - 2.5 mm²|22 - 12 AWG
  • Maximum Operating Ambient Temperature : 131 degree Fahrenheit|55 degree Celsius
  • Minimum Operating Ambient Temperature : -13 degree Fahrenheit|-25 degree Celsius
  • Product Type : I/O Cards & Modules Degrees Celsius
  • Maximum Wire Gauge : 12 AWG square millimetre|2.5 mm² square millimetre
  • Brand : Honeywell
  • Type : I/O Module
  • Approved Location : CB Certificate : TBA ampere|CSA22.2 No. 205-M1983 ampere|EMC : EN61326-1:2013 ampere|Safety : EN61010-1:2010 ampere|UL60730 ampere
  • Mounting Type : DIN Rail inch
  • Minimum Wire Gauge : 0.14 mm²|22 AWG
  • LED Circuit-Status Indicators : 5
  • Housing Color : White
  • Total Ports : 8
  • Terminal Type : Cage Clamp Screw Terminal inch
  • For Use With : IQ™3xcite I/O millimetre
  • Concentrator Type : Wired
Others
Name
Description
File Size
Date
Size
IQ4系列 I/O扩展模块 用户手册
application/pdf 371.65 KB
11/16/2022
371.65 KB
IQ4-IO-.. I-O Expansion Modules
application/pdf 1.23 MB
4/5/2023
1.23 MB
IQ4-IO-.. Moduli di espansione I-O
application/pdf 1.24 MB
4/5/2023
1.24 MB
IQ4-IO-.. Modules d’extension E-S
application/pdf 1.51 MB
4/5/2023
1.51 MB
IQ4-IO-..Modules d'extension E-S
application/pdf 1.06 MB
5/14/2023
1.06 MB
IQ4-IO-.. I-O Expansion Modules
application/pdf 1.09 MB
5/14/2023
1.09 MB
Name
Description
File Size
Date
Size
IQ4系列 I/O扩展模块 用户手册
371.65 KB
11/16/2022
371.65 KB
IQ4-IO-.. I-O Expansion Modules
1.23 MB
4/5/2023
1.23 MB
IQ4-IO-.. Moduli di espansione I-O
1.24 MB
4/5/2023
1.24 MB
IQ4-IO-.. Modules d’extension E-S
1.51 MB
4/5/2023
1.51 MB
IQ4-IO-..Modules d'extension E-S
1.06 MB
5/14/2023
1.06 MB
IQ4-IO-.. I-O Expansion Modules
1.09 MB
5/14/2023
1.09 MB
Name
Description
File Size
Date
Size
IQ4系列 I/O扩展模块 用户手册
371.65 KB
11/16/2022
IQ4-IO-.. I-O Expansion Modules
1.23 MB
4/5/2023
IQ4-IO-.. Moduli di espansione I-O
1.24 MB
4/5/2023
IQ4-IO-.. Modules d’extension E-S
1.51 MB
4/5/2023
IQ4-IO-..Modules d'extension E-S
1.06 MB
5/14/2023
IQ4-IO-.. I-O Expansion Modules
1.09 MB
5/14/2023
Product Number
SKU
Description
alt
IQ4IO-4000U000800
IQ4IO8AO-IO Module with 8 analogue outputs Datasheet TA201341
alt
IQ4IO-4000U008000
IQ4IO8DI-IO Module with 8 digital inputs Datasheet TA201341
alt
IQ4IO-4000U080000

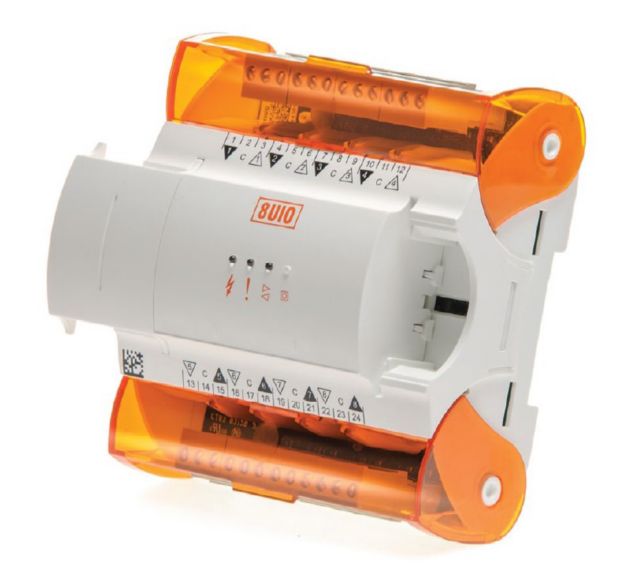

IQ4IO8UI-IO Module with 8 universal inputs Datasheet TA201341
alt
IQ4IO-4000U400000
IQ4IO4UIO-IO Module with 4 universal inputsoutputs Datasheet TA201341
alt
IQ4IO-5000U000040
IQ4IO4DO-IO Module with 4 digitalrelay output Datasheet TA201341
alt
IQ4IO-5000U000080
IQ4IO8DO-IO Module with 8 digitalrelay output Datasheet TA201341
alt
IQ4IO-5000U00G000

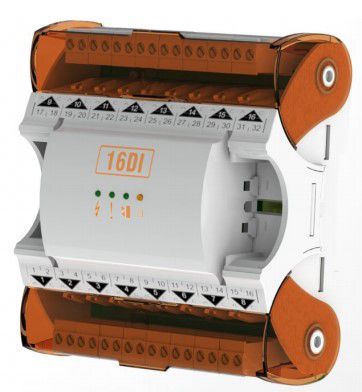

IQ4IO16DI-IO Module with 16 digital input channels Datasheet TA201341
alt
IQ4IO-5000U800000
IQ4IO8UIO-IO Module with 8 universal inputoutput Datasheet TA201341
alt
IQ4IO-5100U000080
IQ4IO8DOHOA-IO Module with 8 digitalrelay output channels and manual override Datasheet TA201341
alt
IQ4IO-5100U000800
IQ4IO8AOHOA-IO Module with 8 analogue output channels and manual override Datasheet TA201341
SKU
Description
alt
IQ4IO-4000U000800
IQ4IO8AO-IO Module with 8 analogue outputs Datasheet TA201341
alt
IQ4IO-4000U008000
IQ4IO8DI-IO Module with 8 digital inputs Datasheet TA201341
alt
IQ4IO-4000U080000
IQ4IO8UI-IO Module with 8 universal inputs Datasheet TA201341
alt
IQ4IO-4000U400000
IQ4IO4UIO-IO Module with 4 universal inputsoutputs Datasheet TA201341
alt
IQ4IO-5000U000040
IQ4IO4DO-IO Module with 4 digitalrelay output Datasheet TA201341
alt
IQ4IO-5000U000080
IQ4IO8DO-IO Module with 8 digitalrelay output Datasheet TA201341
alt
IQ4IO-5000U00G000
IQ4IO16DI-IO Module with 16 digital input channels Datasheet TA201341
alt
IQ4IO-5000U800000
IQ4IO8UIO-IO Module with 8 universal inputoutput Datasheet TA201341
alt
IQ4IO-5100U000080
IQ4IO8DOHOA-IO Module with 8 digitalrelay output channels and manual override Datasheet TA201341
alt
IQ4IO-5100U000800
IQ4IO8AOHOA-IO Module with 8 analogue output channels and manual override Datasheet TA201341
