    Power Amplifiers

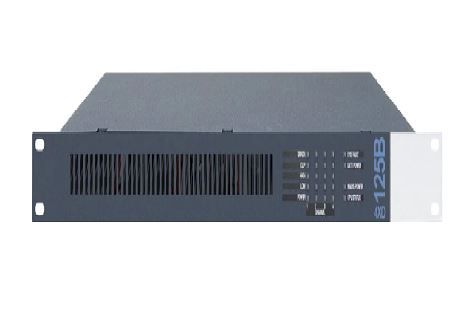

    Four-channel amplifier 4XD125B

    Power Amplifier 4 X 125W, included battery charger

    Overview

    Four-channel power amplifier with built in battery charger for emergency power supply of VARIODYN D1 Comprio. 4XD125B has 4 independent amplifier channels each with 125 W in class D direct drive technology. Due to the fact that all amplifier channels are completely independent from each other, it is possible to use one channel for back up. This could be for the other 3 channels or alternatively for other amplifier channels of other amplifiers with the same or lower output power (only 4XDxxxB models). The amplifier may be used with the VARIODYN D1 Comprio, as well as a DOM. It is also possible to use the amplifier with a separate PSU, in this case the internal battery charger must be disabled.

    Features & Benefits:
    • EN 54-4 and EN 54-16 certified
    • Compliant with EN 60849 and EN 50849
    • Class D technology, efficiency> = 80 %
    • 4 independent amplifier channels
    • One of four amplifier channels can be used as general back up channel
    • One height unit
    • Ideal for use with the VARIODYN D1 Comprio
    • Self-monitoring and self-test by microcontroller
    • Protected against overload, short circuit and overheating
    • Smooth and fast step-down in 1dB steps in the event of overdrive or over load
    • 24 V DC PSU for back up mains power
    • Integrated battery charger according to EN 54-4 for charging batteries up to a capacity of 65 Ah (2 x 12 V / 65 Ah) for emergency power supply of the amplifier and one Comprio or DOM
    • Temperature controlled variable speed fans
    Others
    Name
    Description
    File Size
    Date
    Size
    Sistemas De Aviso Publico Y Alarma Por Voz Catalog
    application/pdf 6.48 MB
    6/1/2019
    6.48 MB
    Arquitectura Sistema VARIODYN D1 Catalog
    application/pdf 5.22 MB
    6/1/2019
    5.22 MB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    D1 Voice Alarm Consultant's Specification Guide
    application/pdf 1.28 MB
    5/8/2023
    1.28 MB
    Name
    Description
    File Size
    Date
    Size
    D1 Voice Alarm Consultant's Specification Guide
    application/pdf 1.28 MB
    5/8/2023
    1.28 MB
    Sistemas De Aviso Publico Y Alarma Por Voz Catalog
    application/pdf 6.48 MB
    6/1/2019
    6.48 MB
    Arquitectura Sistema VARIODYN D1 Catalog
    application/pdf 5.22 MB
    6/1/2019
    5.22 MB
    Name
    Description
    File Size
    Date
    Size
    Sistemas De Aviso Publico Y Alarma Por Voz Catalog
    6.48 MB
    6/1/2019
    Arquitectura Sistema VARIODYN D1 Catalog
    5.22 MB
    6/1/2019
    D1 Voice Alarm Consultant's Specification Guide
    1.28 MB
    5/8/2023
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list
    580242
    D1 Power Amplifier, 4 Channel, 4XD125B, 230V AC, 5060Hz, 24V DC, Class D, -5 to 55C, 483x44x402mm
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-580212-03-primaryimage
    580242
    D1 Power Amplifier, 4 Channel, 4XD125B, 230V AC, 5060Hz, 24V DC, Class D, -5 to 55C, 483x44x402mm
