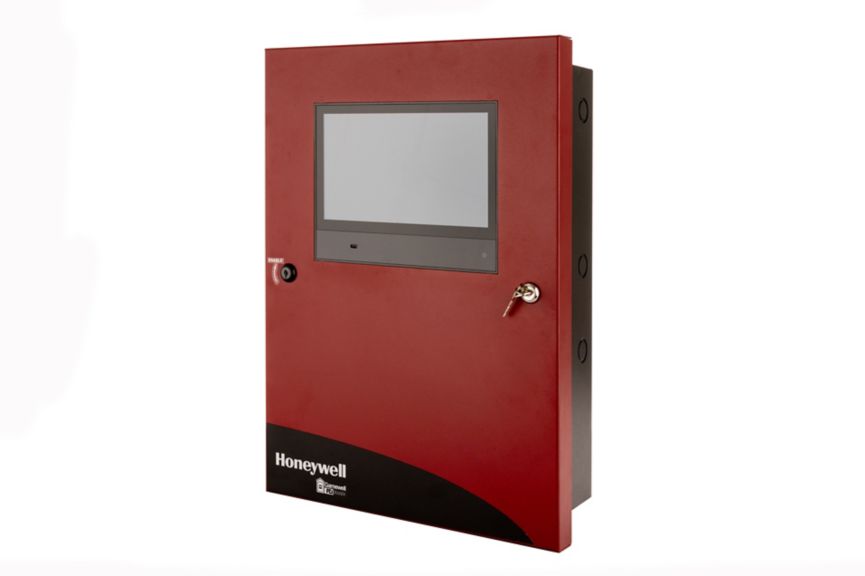

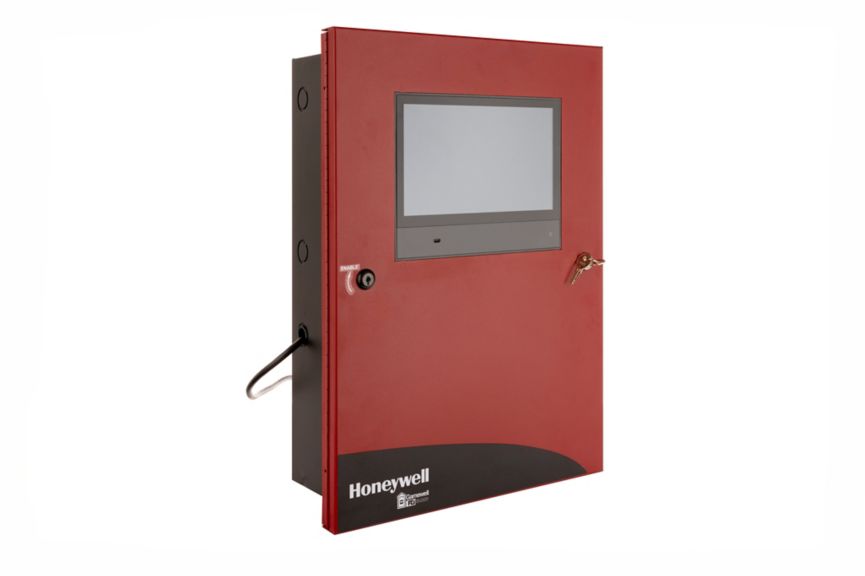

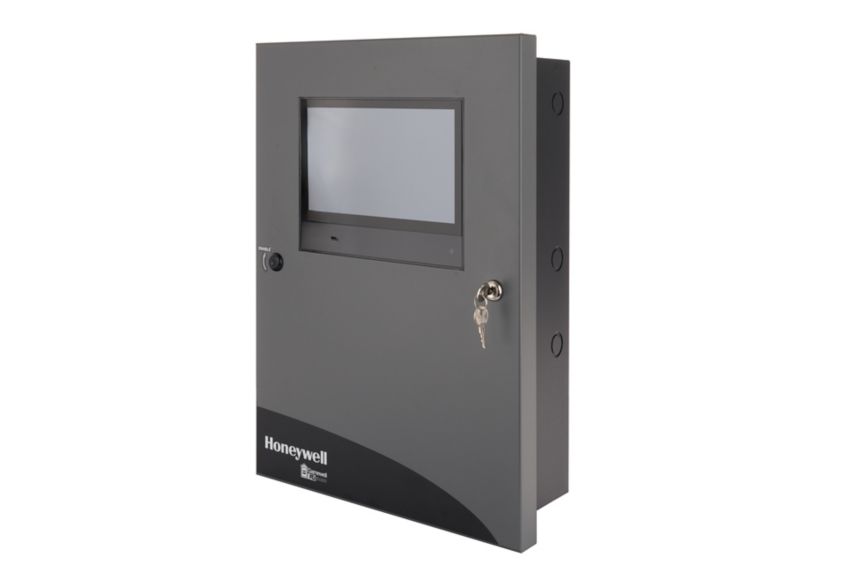

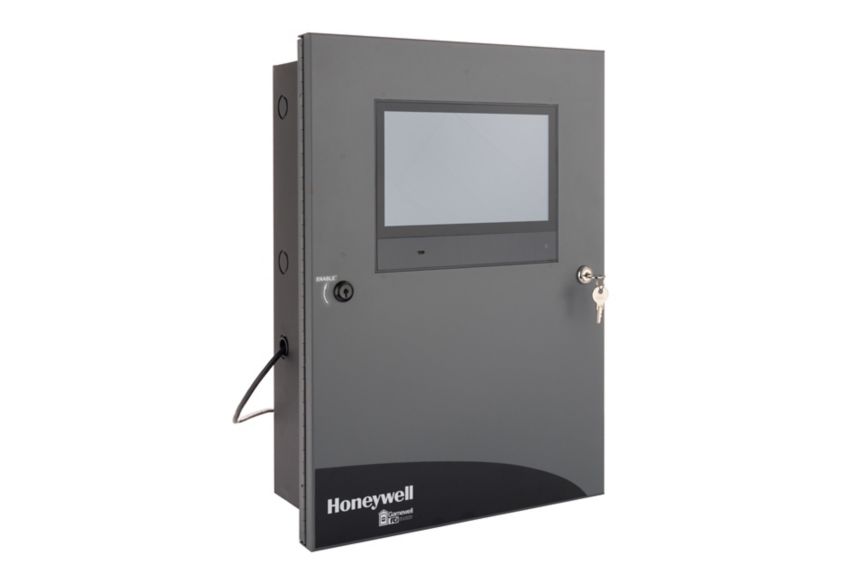

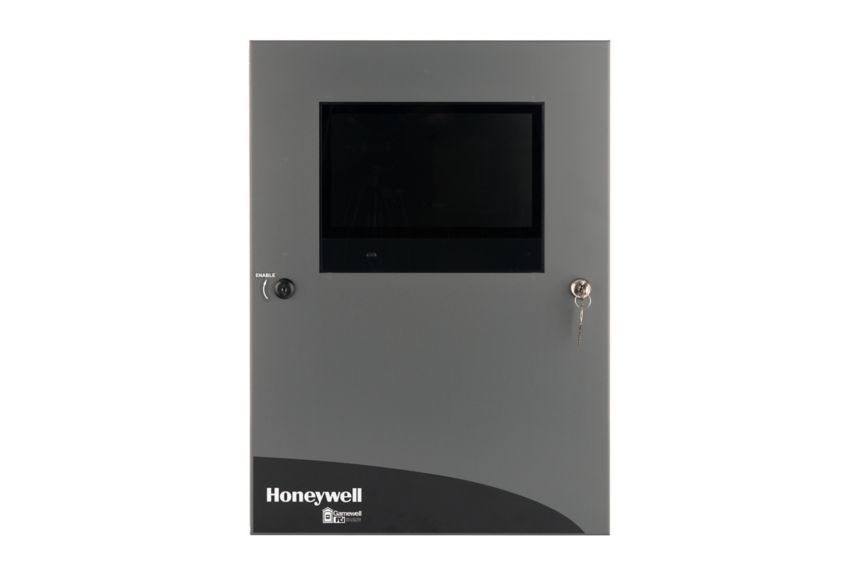

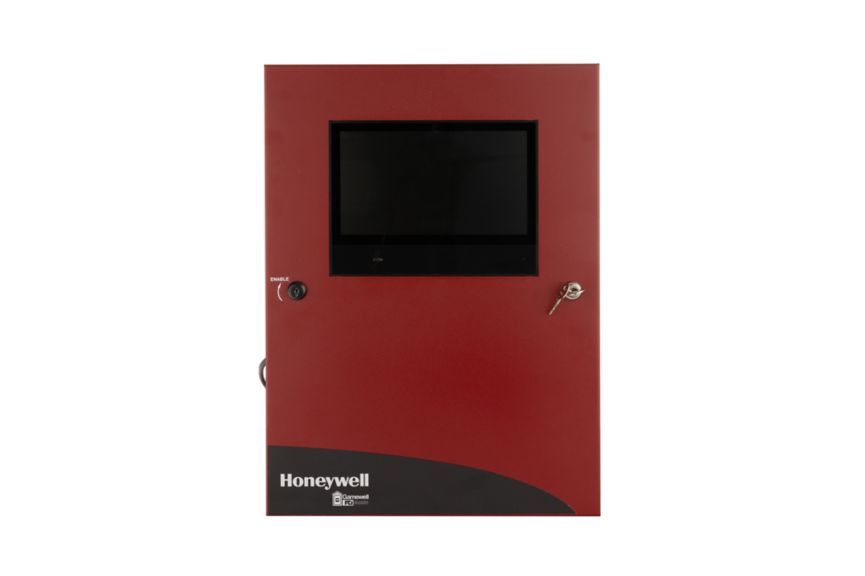

Gamewell-FCI Elevate™ Fire Alarm Control Panel

Gamewell-FCI Elevate™ is an Intelligent Fire Alarm Control Panel that delivers a modern, intuitive approach to life safety. Built with advanced detection and processing technology, the panel supports Honeywell’s patented self-test detectors and magnetactivated AV testing, streamlining inspections and minimizing onsite disruption. Designed for easy upgrades, the GFP-A/AR maintains compatibility with existing SLC wiring for Velociti® and CLIP devices from Gamewell-FCI S3 Series installations, helping facilities stay compliant while maximizing performance. It operates as a powerful standalone panel today and offers future-ready networking capability through a simple firmware upgrade, ensuring scalability as building protection needs evolve.

The Gamewell-FCI Elevate™ integrates with the Connected Life Safety Services (CLSS) platform through the CLSS Gateway, providing connectivity to central station, cloud, and mobile applications. This cloud-based functionality provides remote programming, testing, and diagnostic monitoring of the system, along with reduced manual data entry and reporting. Use CLSS to access licensable panel features, CAMWorks+ Tool, workstation licenses, and more.

• 10" high definition touchscreen display with customizable buttons
• 6.0 A power supply with customizable outputs
• Easy expansion of isolated intelligent Signaling Line Circuit capacity
• Wireless fire protection using SWIFT® Smart Wireless Integrated Fire Technology
• Up to 159 detectors and 159 modules per SLC; 318 devices per loop/636 per FACP
• Self-Test detector technology
• Weekly Occupancy Schedules allow changing sensitivity by time of day and day of week
• History Buffer (10,000 events, 3000 displayed)
• Advanced history filters for custom sorting: all events, alarms only, troubles only, supervisory only, other/security events, time/date interval, and point range.
• Alarm Verification selection per point, with automatic counter
• Color coded icon-based event notification
• Event filtering to quickly view event groups
• On site or remote graphical monitoring via LAN or Internet connection with CLSS Horizon

• The GFP Series complies with the following UL Standards and must be installed per applicable NFPA 72, International Building Code (IBC) and California Building Code (CBC):
• UL 864, 10th edition (Control Units and Accessories for Fire Alarm Systems).
• UL 2017 (General-Purpose Signaling Devices and Systems)
• Should be installed as per NFPA 72 National Fire Protection Association
• UL Type Service
• LOCAL (Automatic, Manual, Waterflow, Sprinkler Supervisory)
• RELEASING (Automatic, Manual, Waterflow, Sprinkler Supervisory)
• AUXILIARY (Connection to M34 Series Master box) (Requires TM-8
• REMOTE STATION (Automatic, Manual, Waterflow, Sprinkler Supervisory, CO) (requires TM-8)
• PROPRIETARY (Automatic, Manual, Waterflow, Sprinkler
• Supervisory, CO) (Requires HON-CGW-MB or HON-DACT-DS)
• CENTRAL STATION (Automatic, Manual, Waterflow, Sprinkler Supervisory, CO) (Requires HON-CGW-MB or HON-DACT-DS)
• EMERGENCY SIGNALING (Automatic, Manual) (Requires HONCGW-MB or HON-DACT-DS)
• IBC 2024 (Seismic) CBC 2022 (Seismic)
• Note: Install in accordance with the UL and NFPA standards specified in panel documentation.
