Combination Strobes

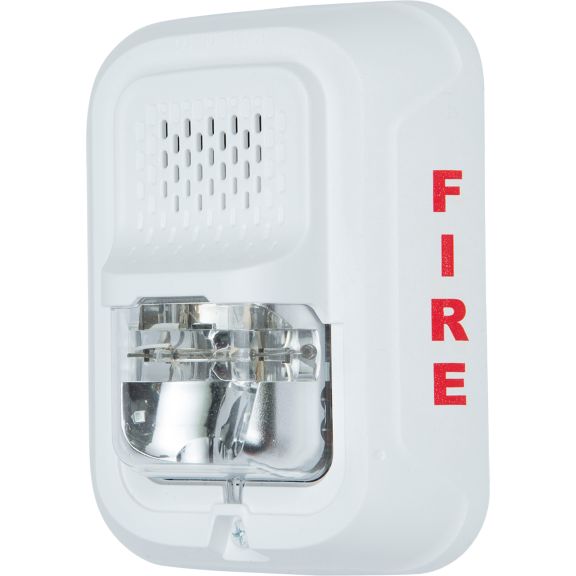

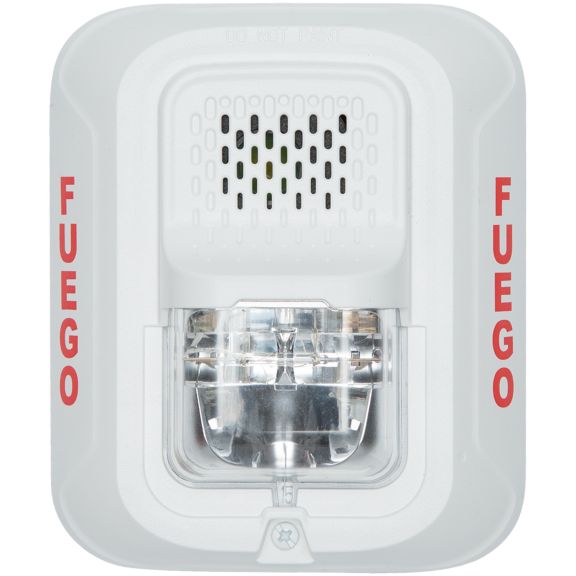

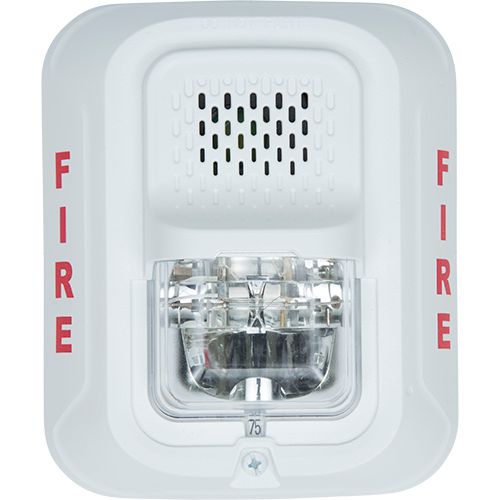

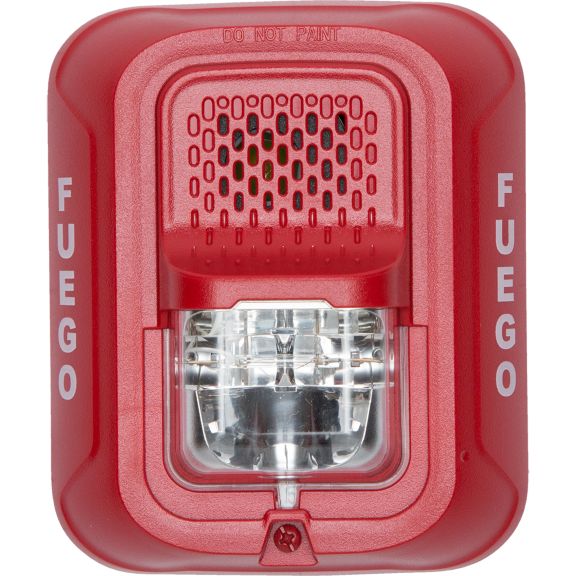

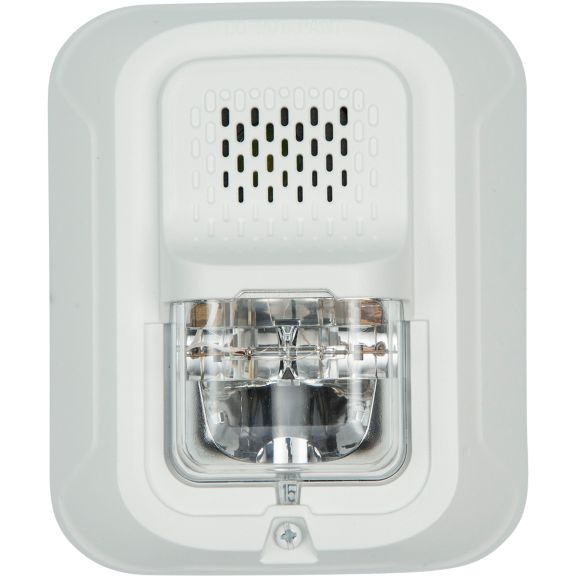

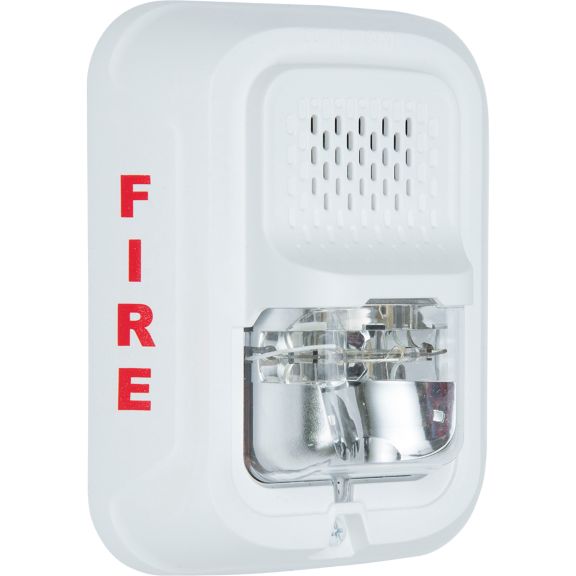

L-Series 2-Wire Wall Horn Strobe
L-Series 2-wire horn strobes include a variety of features that increase their application versatility while simplifying installation.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The L-Series line of wall horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the backbox, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.
To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12 or 24V operation, and a rotary switch for horn tones with two volume selections.
Features & Benefits:- Updated modern aesthetics
- Small (Compact) profile devices for Horns and Horn Strobes
- Plug-in design with minimal intrusion into the backbox
- Tamper-resistant construction
- Automatic selection of 12- or 24-volt operation at 15 and 30 candela
- Field-selectable candela settings for wall units: 15, 30, 75, 95, 110, 135, and 185.
- Horn rated at 88+ dBA at 16 volts
- Rotary switch for horn tone and two volume selections
- Mounting plate for all standard and all compact wall units
- Mounting plate shorting spring checks wiring continuity before device installation
- Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices
- Compatible with MDL3 sync module
- UL Listed: S4011- S5512
- ULC Listed: S4011- S5512
- FM Approved
- CSFM: 7125-1653:0504- 7135-1653:0503
Specifications
Others
- Brand
- Farenhyt
- Gamewell-FCI
- NOTIFIER
- System Sensor
- Product Type
- Horn Strobe
- Mounting Type
- Wall
Others
- Brand
- Farenhyt
- Gamewell-FCI
- NOTIFIER
- System Sensor
- Product Type
- Horn Strobe
- Mounting Type
- Wall
- Brand : Farenhyt|Gamewell-FCI|NOTIFIER|System Sensor
- Product Type : Horn Strobe
- Mounting Type : Wall
