Heat Detectors

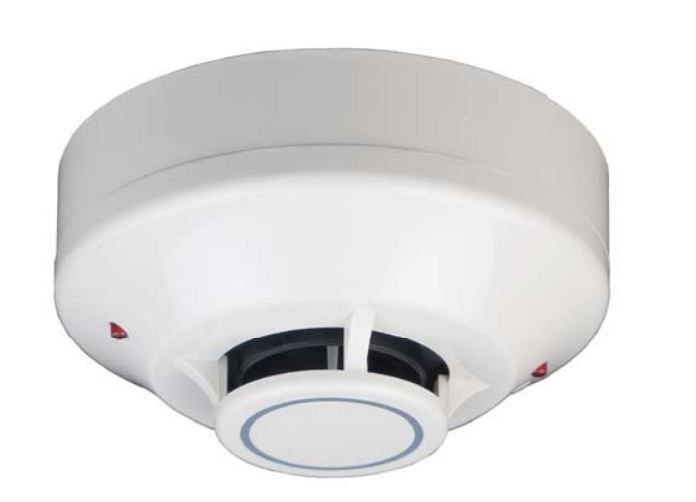

5151AUS Series Conventional Thermal Detector

The Notifier 5151AUS Series of conventional heat/thermal detectors has been designed specifically for the Australian and New Zealand markets

Overview

The Notifier 5151AUS Series of conventional heat/thermal detectors has been designed specifically for the Australian and New Zealand markets using thermistor sensing technology to provide reliable detection of heat which would only be caused by a fire emergency. These detectors feature dual red LEDs and mounting base interchangeability with Notifier’s photoelectric smoke detectors

Features & Benefits:
  • Dual LED design provides 360° viewing angle
  • Thermistor sensing technology
  • Uses universal B401 plug in base
  • Low profile
  • Built-in functional test switch activated by external magnet.
Certifications:
  • AS7240.5-2004
Specifications

Others

  • Minimum Operating Ambient Temperature
    • -10 degree Celsius
  • Minimum Operating Voltage
    • 8.5 voltage direct current
  • Maximum Operating Voltage
    • 35 voltage direct current
  • Standby Current
    • 30 microampere
  • Brand
    • Honeywell
    • Notifier
  • Conventional or Addressable
    • Conventional
  • Maximum Operating Humidity
    • 95 Percentage
  • Regulatory Approvals
    • AS7240.5-2004 Watt
  • Detector Type
    • Thermal
  • Product Type
    • Thermal Detector Degrees Celsius
  • Color
    • White

Others

  • Minimum Operating Ambient Temperature
    • -10 degree Celsius
  • Minimum Operating Voltage
    • 8.5 voltage direct current
  • Maximum Operating Voltage
    • 35 voltage direct current
  • Standby Current
    • 30 microampere
  • Brand
    • Honeywell
    • Notifier
  • Conventional or Addressable
    • Conventional
  • Maximum Operating Humidity
    • 95 Percentage
  • Regulatory Approvals
    • AS7240.5-2004 Watt
  • Detector Type
    • Thermal
  • Product Type
    • Thermal Detector Degrees Celsius
  • Color
    • White
  • Minimum Operating Ambient Temperature : -10 degree Celsius
  • Minimum Operating Voltage : 8.5 voltage direct current
  • Maximum Operating Voltage : 35 voltage direct current
  • Standby Current : 30 microampere
  • Brand : Honeywell|Notifier
  • Conventional or Addressable : Conventional
  • Maximum Operating Humidity : 95 Percentage
  • Regulatory Approvals : AS7240.5-2004 Watt
  • Detector Type : Thermal
  • Product Type : Thermal Detector Degrees Celsius
  • Color  : White
Product Number
SKUs
SKU
Description
alt
5151AUS
Conventional Thermal Detector, Fixed Temp 63deg, System Sensor, requires B401
alt
5151HAUS
Conventional Thermal Detector, Fixed Temp 90deg, System Sensor, requires B401
alt
5151RAUS
Conventional Thermal Detector, Rate of Rise, 63deg
alt
5151RHAUS
Conventional Thermal Detector, Rate of Rise, 90deg, System Sensor, requires B401
