    Fire Suppression Devices

    Discharge Valve

    Inert Suppression System

    Overview

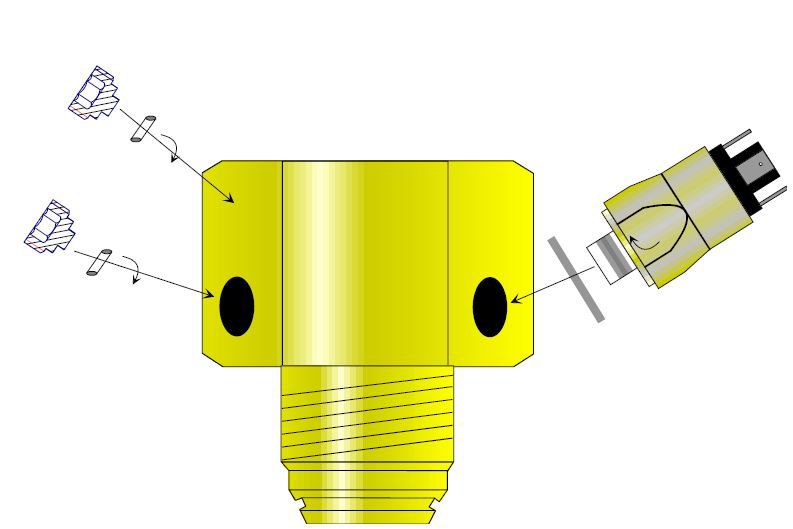

    Discharge valve for use in Inert fire extinguishing systems. The valve has built-in pneumatic activation for inter-system activation, back pressure activation and mechanical activation interface.

    The discharge outlet is connected internally to the Pneumatic Actuator (PA) via a check valve (the check valve allows pressure from the discharge side to enter the actuator side), this allows for the

    discharge port to be used as activation port also (back pressure), hence eliminating the need for PA circuitry between valves connected to the same manifold. When more than one manifold is used, the PA system must be connected to at least one IV8 valve on each manifold. The port for the PA function works as both inlet and outlet, hence the same connection is used on both pilot and slave cylinders, and the pilot cylinders can be placed anywhere in the line of IV8 valves. All equipment connected to the PA connection must be rated at 300/400 bar. The standard valve is classified as a Type 2 valve, as it has a built-in burst disc which relieves pressure to the open.

    Features & Benefits:
    • 200 Bar/ 300 bar
    Certifications:
    • UL & FM
    Others
    Name
    Description
    File Size
    Date
    Size
    Control Inert Extinguishing System Manual (EN)
    application/pdf 7.76 MB
    1/23/2024
    7.76 MB
    Name
    Description
    File Size
    Date
    Size
    Control Inert Extinguishing System Manual (EN)
    application/pdf 7.76 MB
    1/23/2024
    7.76 MB
    Name
    Description
    File Size
    Date
    Size
    Control Inert Extinguishing System Manual (EN)
    7.76 MB
    1/23/2024
    Product Number
    Part Number
    Description
    Add to list
    H-304042
    DV7a -2 M25 (300 bar)
    H-304043
    DV7a -3 M25 (300 bar)
    H-305410
    Ci IV8-300 Manosw -plug
    H-305410-60
    Ci IV8-300 Manosw UL
    H-305410-62
    Ci IV8-300 Manosw FM
    H-305411
    Ci IV8-300 Basic
    H-305420
    Ci IV8-200 Manosw -plug
    H-305420-60
    Ci IV8-200 Manosw UL
    H-305420-62
    Ci IV8-200 Manosw FM
    H-305421
    Ci IV8-200 Basic
