7800 Series Universal Wiring Subbase
7800 Series Universal Wiring Subbases are an universal wiring subbase for the 7800 Series relay modules and expanded annunciator
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The universal wiring subbase provides terminals for field wiring. Knife blade terminals located on the 7800 SERIES Relay Module or S7830A engage the Q7800 bifurcated contacts to make electrical connections. The Q7800A1005 (2-sided) subbase is available for panel mounting applications. The Q7800B1003 and Q7800B1011 (4-sided) subbases are available for burner or wall mount applications. Knockouts are provided in the back, top and bottom for conduit connections
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
Q7800A1005/U

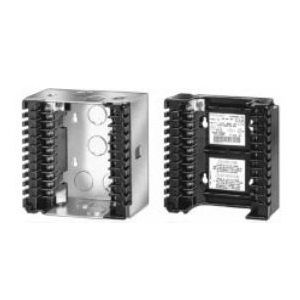

7800 Series Universal Wiring Subbase, 22 Terminals, 126x126x36mm
https://s7d1.scene7.com/is/image/Honeywell65/hbt-bms-q7800a1005u-7800seriesuniversalwiring-primaryimage
Q7800A1005/U
7800 Series Universal Wiring Subbase, 22 Terminals, 126x126x36mm
