Global Controllers

Honeywell Optimizer Advanced Controller

Plant control that is easy to install and use, even for new hires. Capabilities that are be easy to add, without rip-and-replace. And controls with built-in cybersecurity to protect OT, closing the backdoor to IT networks.

Overview
Honeywell Optimizer Advanced Controllers are a family of next generation integration & plant controllers incorporating the Niagara framework & powered by an IMX8 64bit quad-core processor. The IP devices are freely programmable, with a dedicated suite of I/O modules providing extremely flexible control options. Using the power of Niagara they provide both Ethernet & Serial integration options and are native BACnetTM Building Controllers (B-BC).

Features & Benefits:
  • Conforms to BACnetTM Standard 135 protocol version 1.15 (ISO 16484-5)

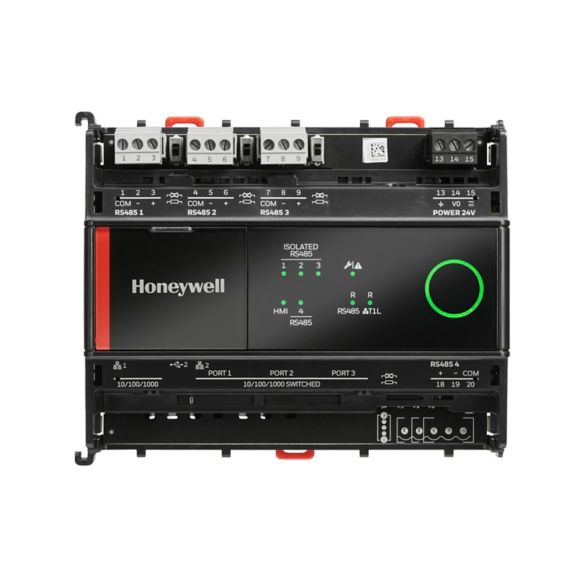

  • Multi-color LEDs to show the operational status of the isolated RS485 communications, HMI device, Ethernet connection, and Service state of the controller

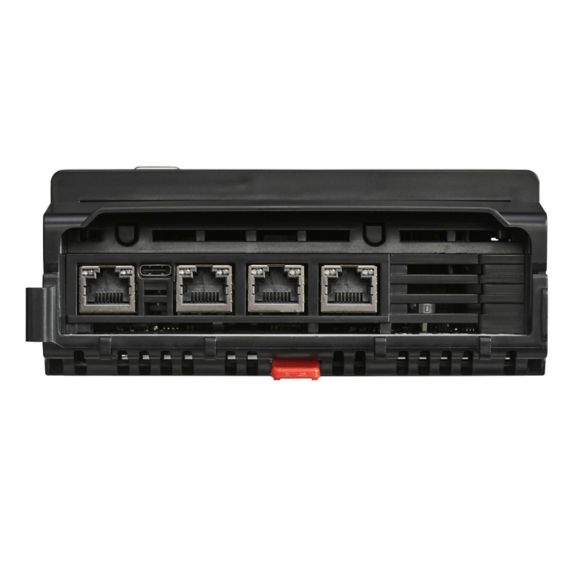

  • Multiple Ethernet connector options

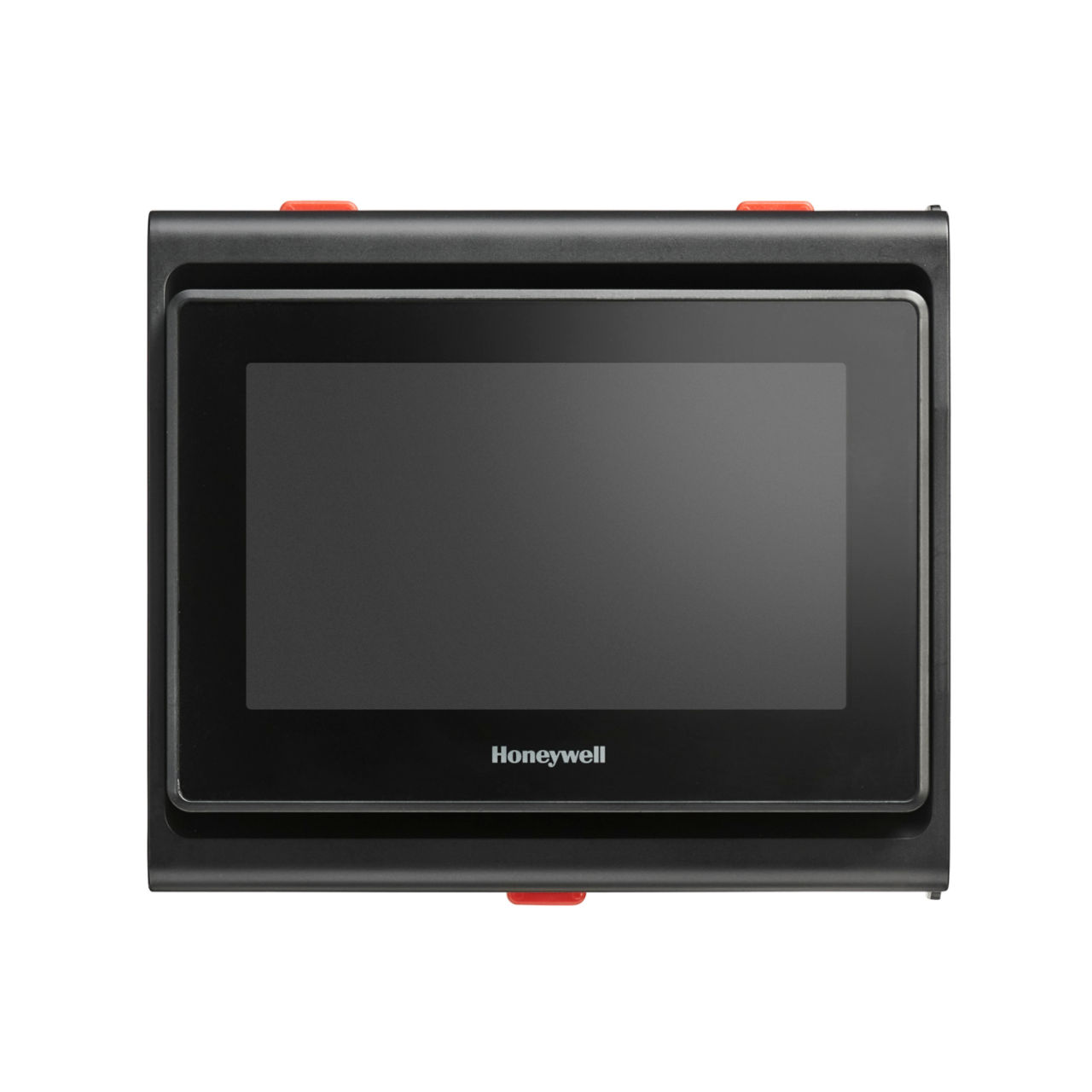

  • RJ11 interface to connect with an HMI device for field operations
  • All RS485 channels support PanelBus, BACnetTM MS/TP, Modbus, and M-Bus
  • Support C-Bus data sharing
  • Touchflake to support RS485 Snapon I/O devices
  • Built-in advanced diagnostics software facilitating troubleshooting for IP and MSTP devices
  • FRAM to store the live data for the controller, including storing the last known values when power is removed
  • UTF-8 and UCS-2 character encoding formats are supported
  • Support Peer-to-Peer communication
  • Supports DHCP (Automatic IP address assignment)
  • Supports Daisy-chain connection
  • Supports full Niagara 4 Framework with FOX and Fox-S communications, N4 Drivers and Interfaces

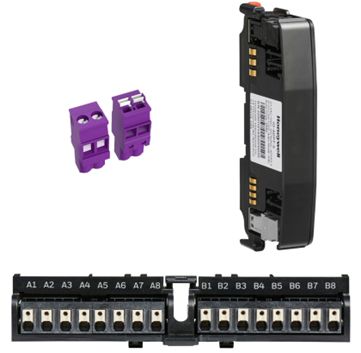

  • Removable terminal blocks with Screw (factory installed) or Push-in terminals
  • Built-in Web server with HTML5 graphics support
  • Terminal covers to protect the terminals
  • Protective covers to protect the Touchflake and Snapon I/O
  • i.MX 8M Plus, quad Arm® Cortex®-A53 processor, long life industrial grade, Frequency: 1.2GHz
  • Ubuntu Core OS with snap container based modular software design (Cyber Secure)
  • Support for Azure IOT remote device management and update services
  • Neural Net Accelerator for future development of low latency AI/ML algorithms at the Edge
Certifications:
  • Protection Class: IP20
  • Product Standards: UL60730-1, UL60730-2-9, UL916, IEC/EN60730-1, IEC/EN60730-2-9, CAN/CSA-E60730-1:02, IEC/EN61326-1, and IEC/EN61010
  • Testing Electrical Components: IEC68
  • Certification: UL60730-1, UL916, CE, BTL B-BC, BACnetTM Standard 135 version 1.14, ISO 16484-5, FCC Part15, Subpart B, CAN ICES-3(B)/NMB- 3(B), RCM, AMEV AS-B, KBOB, EAC, RoHS II, Ethernet Protocol version IEEEC 802.3, EN-1434-3 and EN-13757-3
  • System Transformer: The system transformer(s) must be safety isolating transformers according to IEC 61558-2-6. In the U.S.A. and Canada, NEC Class 2 transformers must be used.
Others
Name
Description
File Size
Date
Size
Honeywell Optimizer Advanced Controller Sell Sheet (English)
application/pdf 2.1 MB
6/9/2023
2.1 MB
HBT-BMS-BeatsADV-CPO-PC500-N-ADV-EU-DoC-EMC+RoHS3-20230919.pdf
application/pdf 737.39 KB
1/10/2024
737.39 KB
Optimizer Advanced Controller Datasheet (English)
application/pdf 3.3 MB
8/10/2023
3.3 MB
Advanced Controller Mounting Instructions (English)
application/pdf 3.01 MB
8/10/2023
3.01 MB
Honeywell Optimizer Suite Architecture
application/pdf 154.86 KB
2/16/2024
154.86 KB
Name
Description
File Size
Date
Size
Honeywell Optimizer Advanced Controller Sell Sheet (English)
2.1 MB
6/9/2023
2.1 MB
HBT-BMS-BeatsADV-CPO-PC500-N-ADV-EU-DoC-EMC+RoHS3-20230919.pdf
737.39 KB
1/10/2024
737.39 KB
Optimizer Advanced Controller Datasheet (English)
3.3 MB
8/10/2023
3.3 MB
Advanced Controller Mounting Instructions (English)
3.01 MB
8/10/2023
3.01 MB
Honeywell Optimizer Suite Architecture
154.86 KB
2/16/2024
154.86 KB
Name
Description
File Size
Date
Size
Honeywell Optimizer Advanced Controller Sell Sheet (English)
2.1 MB
6/9/2023
HBT-BMS-BeatsADV-CPO-PC500-N-ADV-EU-DoC-EMC+RoHS3-20230919.pdf
737.39 KB
1/10/2024
Optimizer Advanced Controller Datasheet (English)
3.3 MB
8/10/2023
Advanced Controller Mounting Instructions (English)
3.01 MB
8/10/2023
Honeywell Optimizer Suite Architecture
154.86 KB
2/16/2024
Product Number
SKU
Description
alt
N-ADV-00050-100PCE
Optimizer Advanced Controller License with 50 Global Pts, 100 PanelBus Pts & 1 yr Ini-SMA, Panel BUS Devices do not count towards Device count.
alt
N-ADV-00100-255PCE
Optimizer Advanced Controller License with 100 Global Pts, 255 PanelBus Pts & 1 yr Ini-SMA.
alt
N-ADV-00500-100PCE
Optimizer Advanced Controller License with 500 Global Pts, 100 PanelBus Pts & 1 yr Ini-SMA, Panel BUS Devices do not count towards Device count.
alt
N-ADV-01250-255PCE
Optimizer Advanced Controller License with 1,250 Global Pts, 255 PanelBus Pts & 1 yr Ini-SMA, Panel BUS Devices do not count towards Device count.
alt
N-ADV-05000-255PCE
Optimizer Advanced Controller License with 5,000 Global Pts, 255 PanelBus Pts & 1 yr Ini-SMA, Panel BUS Devices do not count towards Device count.
alt
N-ADV-10000-255PCE
Optimizer Advanced Controller License with 10,000 Global Pts, 255 PanelBus Pts & 1 yr Ini-SMA, Panel BUS Devices do not count towards Device count.
alt
N-ADV-112-H-C
Niagara Device with 1+1 Ethernet interfaces (1 x Isolated & 1 x Switched), 2 RS485 interfaces, HMI port,  &IO Expansion
alt
N-ADV-112-HC-16UIO
Kit of N-ADV-112-H-C & IO-16UIO-S-P
alt
N-ADV-133-H-C
Niagara Device with 1+3 Ethernet interfaces (1 x Isolated & 1 x Switched), 3 RS485 interfaces, HMI port,  & IO Expansion
