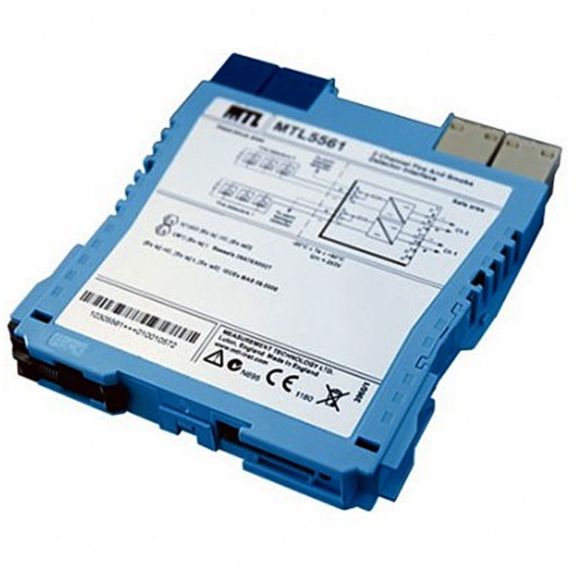

Galvanic Isolator - MTL

Galvanic Isolator is a zone-powered, two-channel interface for use in conventional fire detection systems for protection within hazardous areas.

Overview

Galvanic Isolator is a zone-powered, two-channel interface for use in conventional fire detection systems for protection within hazardous areas. In operation, the triggering of a detector causes corresponding change in the safe-area circuit. The unit has reverse input polarity protection, while 'non-fail' earth fault detection on either line can be provided by connecting an earth leakage detector to terminals 3 or 6.

Features & Benefits:
  • Simple installation onto standard DIN railing
  • Simplified installation and maintenance using plug-in connectors
  • Input circuit protected against reverse polarity
  • Supports two zones
Specifications

Others

  • Maximum Operating Humidity
    • 95 Percentage
  • Overall Depth
    • 16 Millimeter-PRD
  • Maximum Output Voltage
    • 28 volt
  • Minimum Operating Ambient Temperature
    • -20 Degrees Celsius
  • Maximum Operating Current
    • 93 milliampere
  • Overall Height
    • 124 Millimeter-PRD
  • Overall Cabinet Width
    • 105 Millimeter-PRD
  • Maximum Output Current
    • 40

Others

  • Maximum Operating Humidity
    • 95 Percentage
  • Overall Depth
    • 16 Millimeter-PRD
  • Maximum Output Voltage
    • 28 volt
  • Minimum Operating Ambient Temperature
    • -20 Degrees Celsius
  • Maximum Operating Current
    • 93 milliampere
  • Overall Height
    • 124 Millimeter-PRD
  • Overall Cabinet Width
    • 105 Millimeter-PRD
  • Maximum Output Current
    • 40
  • Maximum Operating Humidity : 95 Percentage
  • Overall Depth : 16 Millimeter-PRD
  • Maximum Output Voltage : 28 volt
  • Minimum Operating Ambient Temperature : -20 Degrees Celsius
  • Maximum Operating Current : 93 milliampere
  • Overall Height : 124 Millimeter-PRD
  • Overall Cabinet Width : 105 Millimeter-PRD
  • Maximum Output Current : 40
Others
Name
Description
File Size
Date
Size
Detección de incendios Catalog
application/pdf 3.44 MB
11/1/2016
3.44 MB
Name
Description
File Size
Date
Size
Detección de incendios Catalog
3.44 MB
11/1/2016
3.44 MB
Name
Description
File Size
Date
Size
Detección de incendios Catalog
3.44 MB
11/1/2016
Product Number
SKU
Description
alt
MTL5525
Galvanic Isolator, 48mA, 24V DC, IS Sounders
alt
MTL5561
Galvanic Isolator, 28 V, 93 mA, 300 Ohms
SKU
Description
alt
MTL5525
Galvanic Isolator, 48mA, 24V DC, IS Sounders
alt
MTL5561
Galvanic Isolator, 28 V, 93 mA, 300 Ohms
