Annunciators & Keypads

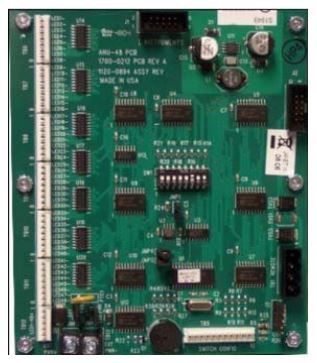

ANU-48 LED Driver Module

The ANU-48 is a remote annunciator used with the E3 Series® Fire, Mass Notification, Voice Evacuation and S3 Series Systems.

Overview

The ANU-48 is a remote annunciator used with the E3 Series® Fire, Mass Notification, Voice Evacuation and S3 Series Systems. The Gamewell-FCI, ANU-48 LED Driver Module is a remote annunciator that is used in conjunction with the following systems. , E3 Series® Expandable Emergency Evacuation System , E3 Series Combined Fire and Mass Notification System , E3 Series Broadband Voice Evacuation System , S3 Series Small Addressable Fire Alarm Control Panel It provides output for up to eight remote panel switches and 48 remote LEDs, contributing to the versatility and flexibility of the GamewellFCI System. The switches may be programmed to operate as any of the following predefined functions: , Speaker Circuit Switch , Fire Fighter Phone Switch , Auxiliary Control Switch using a bank of two switches (use one switch for each On-OffAuto function)

Features & Benefits:
  • Includes input for eight software programmable switches, maintained on momentary contact
  • Provides output for up to 48 remote LEDs or driver circuits
  • The INI-VG Series, ILI-MB-E3/ILI95-MB-E3 or SLP (Smart Loop Panel) can support up to 16 ANU-48 LED driver modules or ASM-16 switch modules for a total of 128 switches and 768 LEDs
  • Installed up to 3,000 feet (914.4 m) from the control panel, and up to 15 additional annunciators can be connected
Certifications:
  • Listed under UL® Standard 864, 10th Edition
  • Listed under UL® Standard UL2572, 2nd
  • Edition for Mass Notification
Specifications

Others

  • Minimum Operating Humidity
    • 0 Percentage
  • Maximum Operating Humidity
    • 93 Percentage
  • Brand
    • Gamewell-FCI
  • Addressing Style
    • Switch Module
  • Compatible Environments
    • Yes

Others

  • Minimum Operating Humidity
    • 0 Percentage
  • Maximum Operating Humidity
    • 93 Percentage
  • Brand
    • Gamewell-FCI
  • Addressing Style
    • Switch Module
  • Compatible Environments
    • Yes
  • Minimum Operating Humidity : 0 Percentage
  • Maximum Operating Humidity : 93 Percentage
  • Brand : Gamewell-FCI
  • Addressing Style : Switch Module
  • Compatible Environments : Yes
Data Sheet
Name
Description
File Size
Date
Size
ANU-48 Modulo Acionador de LED Data Sheet
application/pdf 173.12 KB
5/14/2023
173.12 KB
ANU-48 Remote LED Driver Unit Data Sheet
application/pdf 89.92 KB
5/14/2023
89.92 KB
E3 Series, Classic Data Sheet
application/pdf 116.41 KB
5/14/2023
116.41 KB
Name
Description
File Size
Date
Size
ANU-48 Modulo Acionador de LED Data Sheet
173.12 KB
5/14/2023
173.12 KB
ANU-48 Remote LED Driver Unit Data Sheet
89.92 KB
5/14/2023
89.92 KB
E3 Series, Classic Data Sheet
116.41 KB
5/14/2023
116.41 KB
Name
Description
File Size
Date
Size
ANU-48 Modulo Acionador de LED Data Sheet
173.12 KB
5/14/2023
ANU-48 Remote LED Driver Unit Data Sheet
89.92 KB
5/14/2023
E3 Series, Classic Data Sheet
116.41 KB
5/14/2023
