Relay Modules

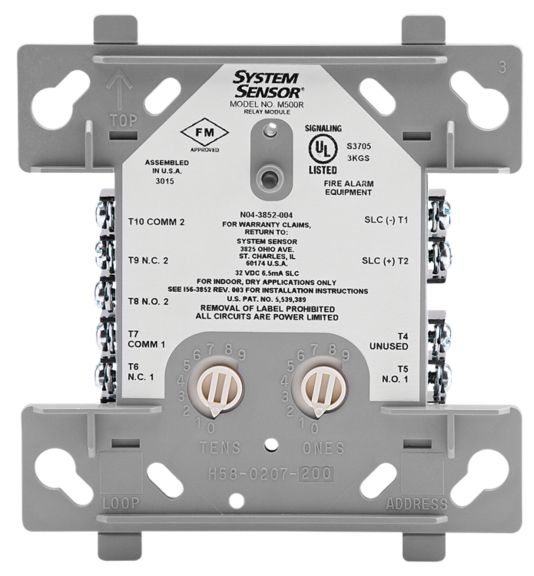

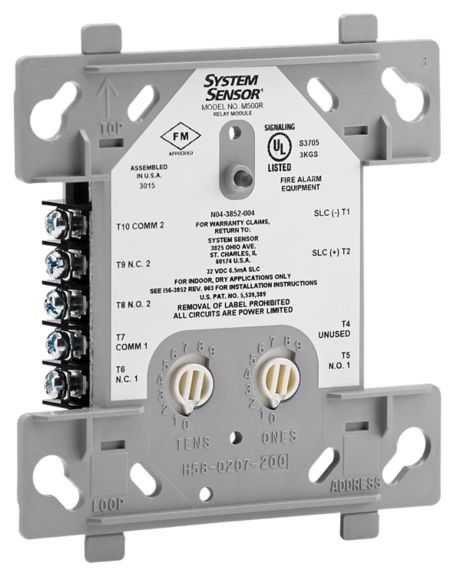

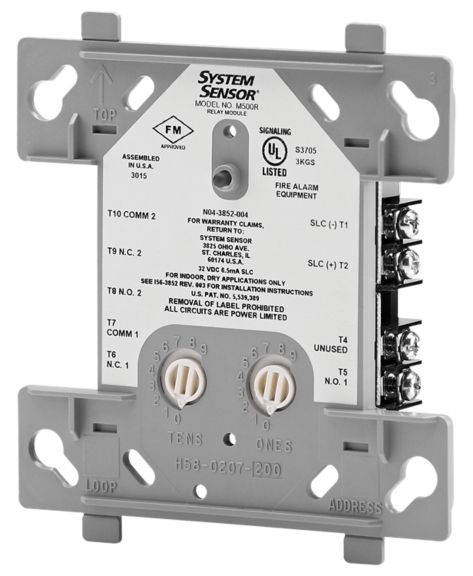

500 Series Intelligent Relay Module
M500R relay control modules contain two isolated sets of Form C contacts, which operate as a DPDT switch. The modules allow the control panel to switch these contacts on command. No supervision is provided for the notification appliance circuit.
Overview
M500R relay control modules contain two isolated sets of Form C contacts, which operate as a DPDT switch. The modules allow the control panel to switch these contacts on command. No supervision is provided for the notification appliance circuit.Features & Benefits:
- SEMS screws allow for easing wiring
- Panel controlled status LED
- Analog communications
- Rotary address switches
- Low standby current
- UL, ULC Listed
- FM
