Relay Modules

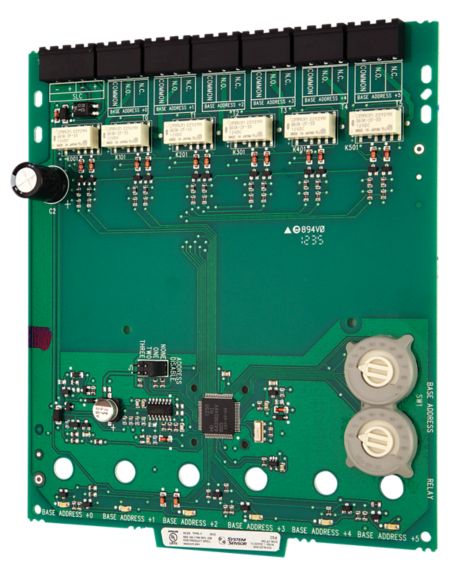

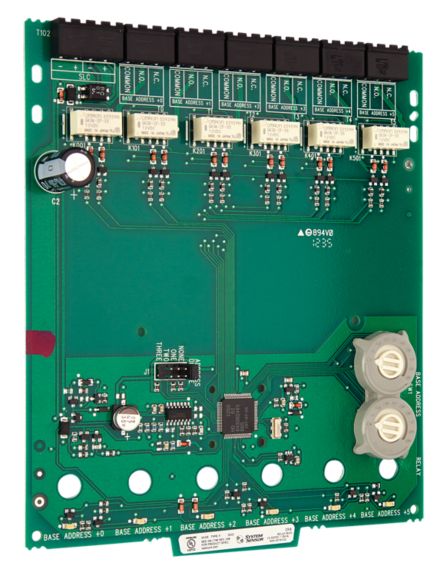

Six Relay Control Module

System Sensor multiple input and output modules are designed to meet a range of applications in which numerous single modules are used.

Overview

The CR-6 Six Relay Control module consists of six Form-C relays. The first address is set from 01 to 94, while the remaining modules are automatically assigned to the next five higher addresses. Provisions are included for disabling a maximum of three unused addresses. A single isolated set of dry relay contacts is provided for each module address which is capable of being wired for either a normally open or normally closed operation. The module allows the control panel to switch these contacts on command. No supervision is provided for the controlled circuit.

Features & Benefits:
  • Removable 12 to 18 AWG plug-in terminal blocks
  • Individual LED indicators
  • Unused addresses may be disabled
  • Rotary address switches
  • Class A or B operation
  • Mount up to two modules in BB-2 enclosure (optional)
  • Mount up to six modules in BB-6 enclosure with CH-6 chassis (optional)
  • Mounting hardware included
Certifications:
  • UL Listed S7305
  • ULC CS669
  • FM Approved 3012062
  • CSFM 7300-1653:0160
  • MSFM Approved 2102
Specifications

Others

  • Brand
    • System Sensor
  • Mounting Type
    • Cabinet-Mount inch

Others

  • Brand
    • System Sensor
  • Mounting Type
    • Cabinet-Mount inch
  • Brand : System Sensor
  • Mounting Type : Cabinet-Mount inch
Others
Name
Description
File Size
Date
Size
Sistemas Analogicos Catalog
application/pdf 3.81 MB
4/1/2013
3.81 MB
Addressable Control Module Specification Engineering Specifications
application/vnd.openxmlformats-officedocument.wordprocessingml.document 833.22 KB
11/28/2023
833.22 KB
System Sensor Loop Control Card, UL-Listed Document
application/pdf 519.8 KB
519.8 KB
CR-6 Six Relay Control Module
application/pdf 786.7 KB
5/8/2023
786.7 KB
500 Series Multiple Input and Output Modules Datasheet
application/pdf 392.78 KB
5/14/2023
392.78 KB
ISO-6 UL Listing
application/pdf 175.39 KB
5/17/2022
175.39 KB
500 Series Multiple Input - Output Modules Datasheet
application/pdf 372.07 KB
8/10/2022
372.07 KB
CR-6 CAD Drawing
image/vnd.dwg 61.58 KB
4/28/2023
61.58 KB
Intelligent Six Relay Control Module Engineering Specs
application/pdf 54.19 KB
5/14/2023
54.19 KB
Installation Instructions
Name
Description
File Size
Date
Size
CR-6A Six Relay Control Module Installation Guide
application/pdf 200.17 KB
5/8/2023
200.17 KB
Data Sheet
Name
Description
File Size
Date
Size
500 Series Multiple Input and Output Modules Data Sheet
application/pdf 357.42 KB
5/14/2023
357.42 KB
500 SeriesMultiple Input and Output Modules Datasheet
application/pdf 156.25 KB
5/14/2023
156.25 KB
Name
Description
File Size
Date
Size
CR-6A Six Relay Control Module Installation Guide
200.17 KB
5/8/2023
200.17 KB
Sistemas Analogicos Catalog
3.81 MB
4/1/2013
3.81 MB
Addressable Control Module Specification Engineering Specifications
833.22 KB
11/28/2023
833.22 KB
System Sensor Loop Control Card, UL-Listed Document
519.8 KB
519.8 KB
500 Series Multiple Input and Output Modules Data Sheet
357.42 KB
5/14/2023
357.42 KB
CR-6 Six Relay Control Module
786.7 KB
5/8/2023
786.7 KB
500 Series Multiple Input and Output Modules Datasheet
392.78 KB
5/14/2023
392.78 KB
ISO-6 UL Listing
175.39 KB
5/17/2022
175.39 KB
500 Series Multiple Input - Output Modules Datasheet
372.07 KB
8/10/2022
372.07 KB
CR-6 CAD Drawing
61.58 KB
4/28/2023
61.58 KB
Intelligent Six Relay Control Module Engineering Specs
54.19 KB
5/14/2023
54.19 KB
500 SeriesMultiple Input and Output Modules Datasheet
156.25 KB
5/14/2023
156.25 KB
Name
Description
File Size
Date
Size
Sistemas Analogicos Catalog
3.81 MB
4/1/2013
Addressable Control Module Specification Engineering Specifications
833.22 KB
11/28/2023
System Sensor Loop Control Card, UL-Listed Document
519.8 KB
CR-6 Six Relay Control Module
786.7 KB
5/8/2023
500 Series Multiple Input and Output Modules Datasheet
392.78 KB
5/14/2023
ISO-6 UL Listing
175.39 KB
5/17/2022
500 Series Multiple Input - Output Modules Datasheet
372.07 KB
8/10/2022
CR-6 CAD Drawing
61.58 KB
4/28/2023
Intelligent Six Relay Control Module Engineering Specs
54.19 KB
5/14/2023
CR-6A Six Relay Control Module Installation Guide
200.17 KB
5/8/2023
500 Series Multiple Input and Output Modules Data Sheet
357.42 KB
5/14/2023
500 SeriesMultiple Input and Output Modules Datasheet
156.25 KB
5/14/2023
Product Number
SKU
Description
alt
CR-6EA
Six Relay Control Module: 15-29V DC: 32F to 120F: Changeover: 30 mA: 01 to 154: 147x173x32mm
SKU
Description
alt
CR-6EA
Six Relay Control Module: 15-29V DC: 32F to 120F: Changeover: 30 mA: 01 to 154: 147x173x32mm
