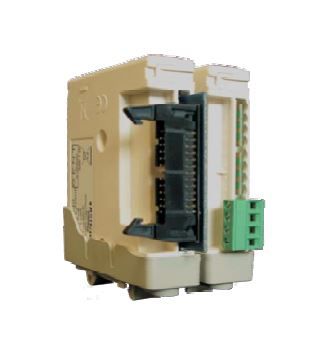

S4 Input Interface Module

S4 Input Interface modules are used to link the fire alarm system to other plant management devices such as sprinklers and security systems. They can also be used to link to a zone of conventional detectors. These modules are designed to be installed in custom panel to provide supervisory input to control plant via Vigilon System. The module connects to a loop circuit of a Vigilon fire alarm control panel. It uses one of 200 device addresses on the loop and responds to regular polls from the control panel, reporting the device type and the status of its supervisory switch inputs. The module is supplied with a 26 way ribbon cable for connecting to a Connector converter that holds the terminals for external input switches and corresponding confirmation LEDs for each switch.

• EN54-17: 2005 and EN54-18: 2005
