    Fire Alarm Control Panels

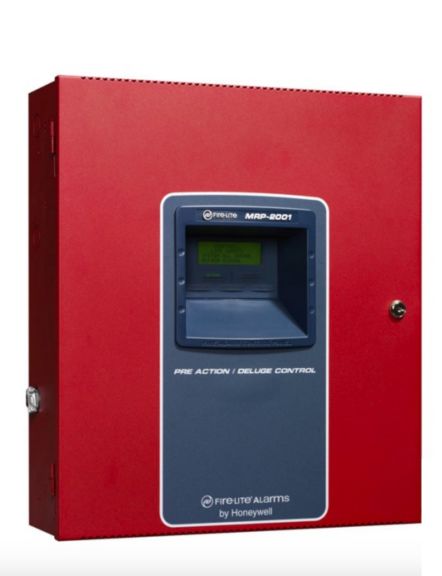

    MRP-2001 Releasing Panel

    MRP-2001 6-zone fire alarm control panels are for single- and dual- hazard deluge and pre-action applications.

    Overview

    MRP-2001 6-zone fire alarm control panels are for single- and dual-hazard deluge and pre-action applications. These panels provide reliable fire detection, signaling and protection for commercial, industrial, and institutional buildings requiring water-based releasing. These FACPs are compatible with System Sensor® i3 detectors, which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory "freeze" signal when the ambient temperature falls below the detector rating of approximately 45 °F (7.22 °C). The control panels are compatible with conventional input devices such as 2-wire smoke detectors, 4-wire smoke detectors, pull stations, water flow devices, tamper switches, and other normally open contact devices.

    Features & Benefits:
    • Dual hazard operation
    • Adjustable water flow discharge timer and two soak timers
    • Cross-zone (double-interlock) capability
    • Six programmable Style B (Class B) initiating device circuits (IDCs)
    • Four programmable Style Y (Class B) output circuits
    • Built-in NAC synchronization for System Sensor, Wheelock®, Gentex®, Faraday® and Amseco® devices
    • 7A total 24V DC output current
    • Resettable and non-resettable output power
    • Built-in Programmer
    • 80-character LCD display (backlit)
    Certifications:
    • UL: S624
    • FM Approved
    • CSFM: 7165-0075:0216
    • MEA: 333-07-E
    Specifications

    Others

    • Brand
      • Fire-Lite
    • Product Type
      • Conventional
      • Releasing

    Others

    • Brand
      • Fire-Lite
    • Product Type
      • Conventional
      • Releasing
    • Brand : Fire-Lite
    • Product Type : Conventional|Releasing
