Globe Valves
V5822A Series 2-Way Short Stroke Linear Valves, Conical Seal, PN16
V5822A series 2-way valves are available in DN15 and DN20 sizes, for use in compact zone valve applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
V5822A series is available in DN15 and DN20 size, with external pipe thread and conical seal for pipe connection ease. An impressive range of KVS values are available, to suit a wide range of applications. 2.5mm stroke valves are available for 2-P on/off control, as well as 6.5mm stroke versions for modulating control.

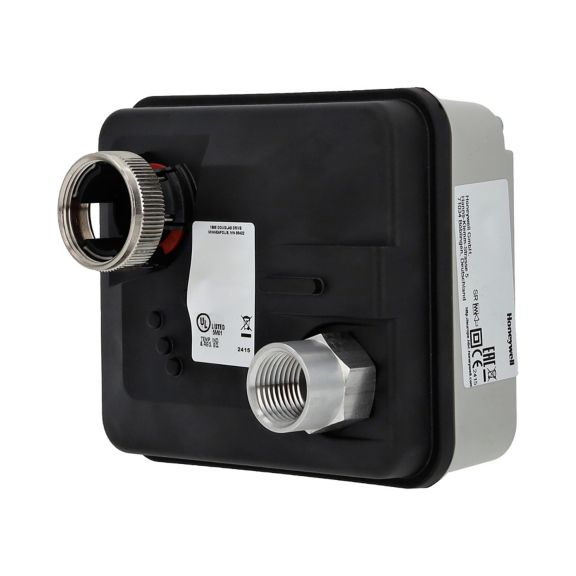

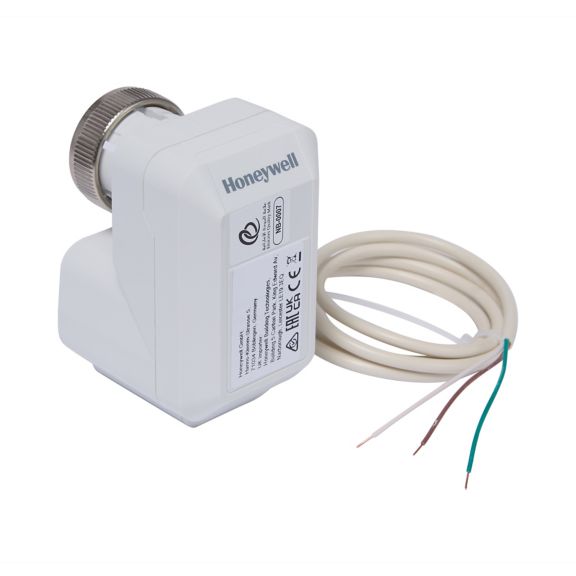

Valves are used with compact thermo-electric and electric actuators for a compact assembly. Flow characteristic is equal percentage. Valve action: A-port is open with the stem in its top position.
Others
Name
Description
File Size
Date
Size
V5822A - 5823A,C SMALL LINEAR VALVES PN16 FOR MODULATING AND ON-OFF-CONTROL
application/pdf 254.79 KB
2/1/2018
254.79 KB
V5822A-5823A,C KLEINVENTIL FÜR ZONENREGELUNG KONISCH DICHTEND, PN16
application/pdf 123.28 KB
1/1/2001
123.28 KB
V5822A-V5823A,C-V5832A-V5833A,C VALVOLE LINEARI PER FAN-COIL, PN16 PER CONTROLLO ON-OFF
application/pdf 165.58 KB
5/1/2002
165.58 KB
Name
Description
File Size
Date
Size
V5822A - 5823A,C SMALL LINEAR VALVES PN16 FOR MODULATING AND ON-OFF-CONTROL
application/pdf 254.79 KB
2/1/2018
254.79 KB
V5822A-5823A,C KLEINVENTIL FÜR ZONENREGELUNG KONISCH DICHTEND, PN16
application/pdf 123.28 KB
1/1/2001
123.28 KB
V5822A-V5823A,C-V5832A-V5833A,C VALVOLE LINEARI PER FAN-COIL, PN16 PER CONTROLLO ON-OFF
application/pdf 165.58 KB
5/1/2002
165.58 KB
Name
Description
File Size
Date
Size
V5822A - 5823A,C SMALL LINEAR VALVES PN16 FOR MODULATING AND ON-OFF-CONTROL
254.79 KB
2/1/2018
V5822A-5823A,C KLEINVENTIL FÜR ZONENREGELUNG KONISCH DICHTEND, PN16
123.28 KB
1/1/2001
V5822A-V5823A,C-V5832A-V5833A,C VALVOLE LINEARI PER FAN-COIL, PN16 PER CONTROLLO ON-OFF
165.58 KB
5/1/2002
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
V5822A1006
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 0.16, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1006
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 0.16, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1014
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 0.25, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1014
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 0.25, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1022
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 0.4, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1022
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 0.4, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1030
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 0.63, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1030
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 0.63, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1048
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 1.0, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1048
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 1.0, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1055
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 1.6, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1055
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 1.6, DN15, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1063
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 2.5, DN20, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1063
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 2.5, DN20, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1071
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 4, DN20, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A1071
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 4, DN20, 6.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A4000
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 1.6, DN15, 2.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A4000
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 1.6, DN15, 2.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A4018
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 2.5, DN20, 2.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
V5822A4018
2-Way Linear Valve, External Thread Connection, Conical Seal, PN16, KVs 2.5, DN20, 2.5mm stroke
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v5822age23cohres
