Monitor Modules

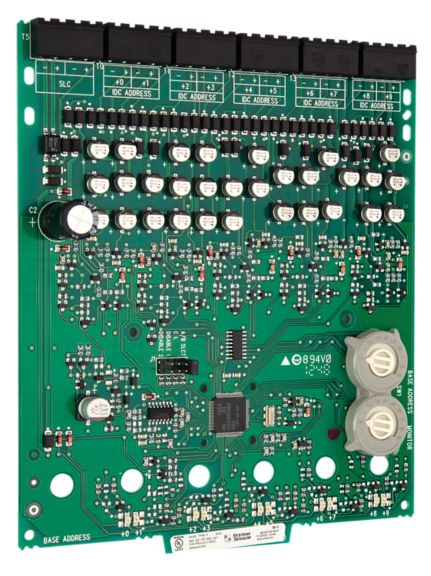

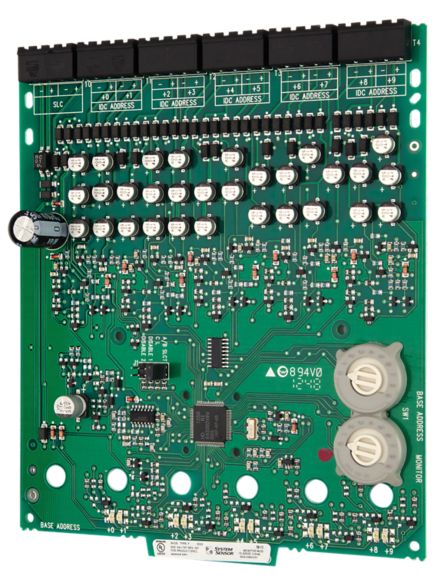

M-10/A/EA Ten Input Monitor Module

The Ten Input Monitor module provides an interface between a control panel and normally open contact devices such as pull stations, security contacts, or flow switches.

Overview
The IM-10/A/EA Ten Input Monitor Module is intended for use in an intelligent alarm system. Each monitor module is intended to interface between a control panel and normally open contact devices, such as pull stations. A common SLC input is used for all modules, and the initiating device loops share a common supervisory supply and ground. Otherwise, each monitor operates independently from the others. Each module also has panel controlled tri-color (green, red and amber) LED indicators. The panel can cause the LEDs to blink, latch on, or latch off. The module also provides short circuit isolators to prevent shorts on the fire detection and alarm system loop from disabling more than one device on the intelligent loop. A pair of rotary code switches is used to set the address of the first module from 01 to 90. The remaining modules are automatically assigned to the next nine higher addresses. Provisions are included for disabling a maximum of two unused modules to release the addresses to be used elsewhere.Features & Benefits:
  • Individual LED indicators
  • Mounting hardware included
  • Rotary address switches
  • Removable 12 to 18 AWG plug-in terminal blocks
  • Unused addresses may be disabled
Certifications:
  • UL listed S7305
  • FM approved 3012062
  • MSFM approved
Specifications

Others

  • Brand
    • System Sensor

Others

  • Brand
    • System Sensor
  • Brand : System Sensor
Others
Name
Description
File Size
Date
Size
Sistemas Analogicos Catalog
application/pdf 3.81 MB
4/1/2013
3.81 MB
Addressable Control Module Specification Engineering Specifications
application/vnd.openxmlformats-officedocument.wordprocessingml.document 833.22 KB
11/28/2023
833.22 KB
System Sensor Loop Control Card, UL-Listed Document
application/pdf 519.8 KB
519.8 KB
IM-10 Ten Input Monitor Module
application/pdf 862.1 KB
5/8/2023
862.1 KB
500 Series Multiple Input and Output Modules Datasheet
application/pdf 392.78 KB
5/14/2023
392.78 KB
NFXI-MM10 Modul der Serie OPAL
application/pdf 571.89 KB
5/14/2023
571.89 KB
MI-IM10-S2I Modul f�r den DXc - Ringbus
application/pdf 571.89 KB
5/14/2023
571.89 KB
ISO-6 UL Listing
application/pdf 175.39 KB
5/17/2022
175.39 KB
500 Series Multiple Input - Output Modules Datasheet
application/pdf 372.07 KB
8/10/2022
372.07 KB
Intelligent Ten Input Monitor Module Engineering Specs
application/pdf 54.09 KB
5/14/2023
54.09 KB
IM-10 CAD Drawing
image/vnd.dwg 59.86 KB
4/28/2023
59.86 KB
Installation Instructions
Name
Description
File Size
Date
Size
IM-10A Ten Input Monitor Module Installation Guide
application/pdf 199.53 KB
5/8/2023
199.53 KB
Data Sheet
Name
Description
File Size
Date
Size
500 SeriesMultiple Input and Output Modules Datasheet
application/pdf 156.25 KB
5/14/2023
156.25 KB
500 Series Multiple Input and Output Modules Data Sheet
application/pdf 357.42 KB
5/14/2023
357.42 KB
Name
Description
File Size
Date
Size
500 SeriesMultiple Input and Output Modules Datasheet
156.25 KB
5/14/2023
156.25 KB
Sistemas Analogicos Catalog
3.81 MB
4/1/2013
3.81 MB
Addressable Control Module Specification Engineering Specifications
833.22 KB
11/28/2023
833.22 KB
System Sensor Loop Control Card, UL-Listed Document
519.8 KB
519.8 KB
500 Series Multiple Input and Output Modules Data Sheet
357.42 KB
5/14/2023
357.42 KB
IM-10 Ten Input Monitor Module
862.1 KB
5/8/2023
862.1 KB
500 Series Multiple Input and Output Modules Datasheet
392.78 KB
5/14/2023
392.78 KB
NFXI-MM10 Modul der Serie OPAL
571.89 KB
5/14/2023
571.89 KB
MI-IM10-S2I Modul f�r den DXc - Ringbus
571.89 KB
5/14/2023
571.89 KB
ISO-6 UL Listing
175.39 KB
5/17/2022
175.39 KB
500 Series Multiple Input - Output Modules Datasheet
372.07 KB
8/10/2022
372.07 KB
Intelligent Ten Input Monitor Module Engineering Specs
54.09 KB
5/14/2023
54.09 KB
IM-10 CAD Drawing
59.86 KB
4/28/2023
59.86 KB
IM-10A Ten Input Monitor Module Installation Guide
199.53 KB
5/8/2023
199.53 KB
Name
Description
File Size
Date
Size
Sistemas Analogicos Catalog
3.81 MB
4/1/2013
Addressable Control Module Specification Engineering Specifications
833.22 KB
11/28/2023
System Sensor Loop Control Card, UL-Listed Document
519.8 KB
IM-10 Ten Input Monitor Module
862.1 KB
5/8/2023
500 Series Multiple Input and Output Modules Datasheet
392.78 KB
5/14/2023
NFXI-MM10 Modul der Serie OPAL
571.89 KB
5/14/2023
MI-IM10-S2I Modul f�r den DXc - Ringbus
571.89 KB
5/14/2023
ISO-6 UL Listing
175.39 KB
5/17/2022
500 Series Multiple Input - Output Modules Datasheet
372.07 KB
8/10/2022
Intelligent Ten Input Monitor Module Engineering Specs
54.09 KB
5/14/2023
IM-10 CAD Drawing
59.86 KB
4/28/2023
IM-10A Ten Input Monitor Module Installation Guide
199.53 KB
5/8/2023
500 SeriesMultiple Input and Output Modules Datasheet
156.25 KB
5/14/2023
500 Series Multiple Input and Output Modules Data Sheet
357.42 KB
5/14/2023
Product Number
SKU
Description
alt
IM-10EA
Ten Input Monitor Module: 6.8x5.7x1.2in: 15 to 29V DC: 3.5 mA:
SKU
Description
alt
IM-10EA
Ten Input Monitor Module: 6.8x5.7x1.2in: 15 to 29V DC: 3.5 mA:
