Linear Actuators

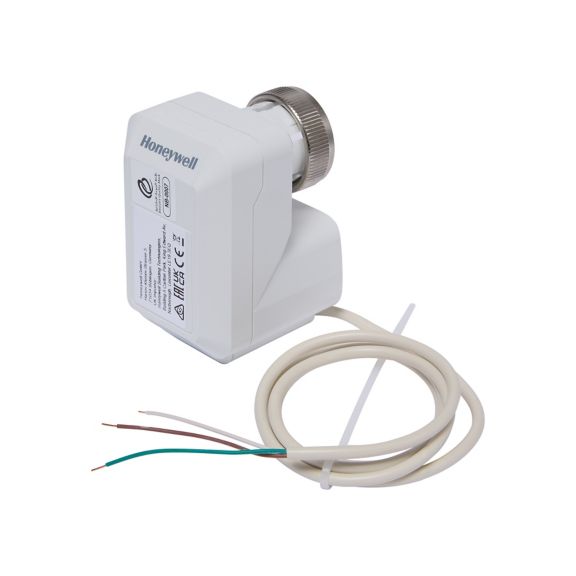

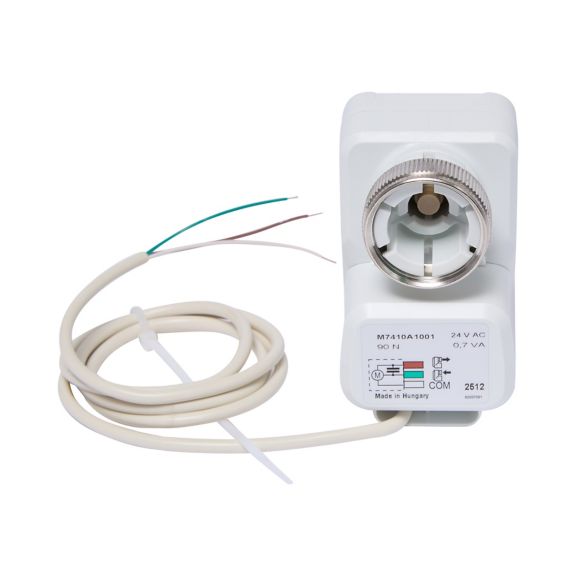

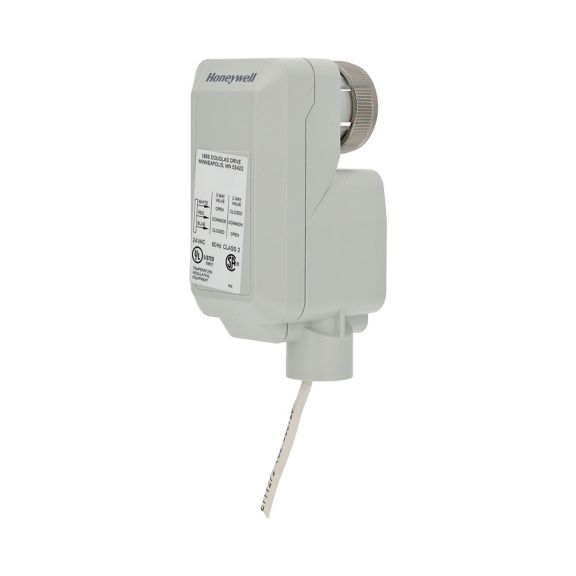

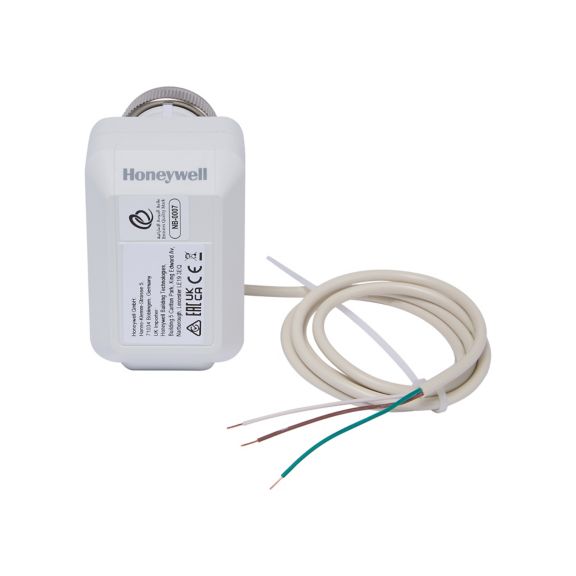

M6410/M7410 Series 3-Pt Short Stroke Linear Valve Actuators
M6410 and M7410 series short stroke linear actuators are used with 2.5mm or 6.5mm stroke linear control valves in hydronic control systems, such as VAV reheat coils, fan coil units, underfloor heating, and the like.
Cartridge Globe Valve Actuators are small electric actuators for individual room control that provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.
Features & Benefits:- Suitable for controllers providing floating or modulating signals.
- Magnetic coupling for torque limitation independent of voltage supply and self-adjustment of the close-off port.
- No mounting tools required.
- Small size allows installation in limited space of fan coil units, induction units, and small reheaters or recoolers.
- Visual position indication (red pin).
- M6410A1029 and M7410F1000 provide 40.5 lbf stem force for 1/2 and 3/4 inch V58 Cartridge Globe Valves.
- M6410A3017 and M7410F3006 provide 67.5 lbf stem force for 1 and 1-1/4 inch V58 Cartridge Globe Valves.
- Flammability Rating UL94V-5V
Others
- Overall Depth
- 60 Millimeter-PRD
- For Use With
- Linear valves with 3 Point Signal inch
- Brand
- Honeywell
Others
- Overall Depth
- 60 Millimeter-PRD
- For Use With
- Linear valves with 3 Point Signal inch
- Brand
- Honeywell
- Overall Depth : 60 Millimeter-PRD
- For Use With : Linear valves with 3 Point Signal inch
- Brand : Honeywell
