    Rotary Actuators

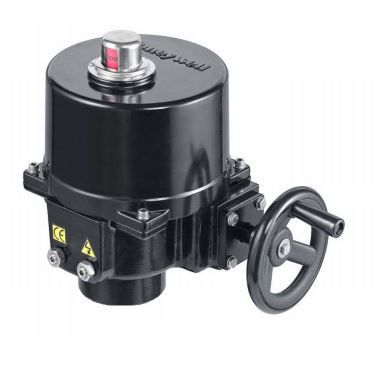

    Modulating Control Rotary Actuator

    The OM series is equipped with standard modulating (4-20mA, 1-5V, or 0(2)-10V select by DIP-switch) control quarter-turn electric actuator. The OM series can also provide feedback output signal.

    Overview

    The OM series is equipped with standard modulating (4-20mA, 1-5V, or 0(2)-10V select by DIP-switch) control quarter-turn electric actuator. The OM series can also provide feedback output signal. 0-5V, 0-10V, 4-20mA (selected by DIP- switch) for modulating version and auxiliary switch is optional.

    Features & Benefits:
    • Modulating Control
    • Manual override non-clutch design
    • Manual operation can be operated without any lever, clutch or brake upon power voltage
    • Irreversible worm gear
    • Visual mechanical position indicator for accurate visual reference of valve position
    • Anti-condensation heater and 2 aux. limit switches on standard model
    • Enclosure IP67
    Specifications

    Others

    • Supply Voltage Frequency
      • 50; 60 Hz
    • Supply Voltage
      • 220 VAC
    • Maximum Operating Ambient Temperature
      • 65 °C
    • Minimum Operating Ambient Temperature
      • -30 °C
    • Feedback Included
      • Yes
    • Manual Override Type
      • Hand-wheel
    • Brand
      • Honeywell
    • Position Indicator Type
      • Continuous Position Indicator
    • Feedback
      • 4-20mA or 0(2)-10V select by DIP switch voltage direct current
    • Actuator Type
      • Electric
    • Actuator Motion
      • Rotary
    • Spring Return
      • No

    Others

    • Supply Voltage Frequency
      • 50; 60 Hz
    • Supply Voltage
      • 220 VAC
    • Maximum Operating Ambient Temperature
      • 65 °C
    • Minimum Operating Ambient Temperature
      • -30 °C
    • Feedback Included
      • Yes
    • Manual Override Type
      • Hand-wheel
    • Brand
      • Honeywell
    • Position Indicator Type
      • Continuous Position Indicator
    • Feedback
      • 4-20mA or 0(2)-10V select by DIP switch voltage direct current
    • Actuator Type
      • Electric
    • Actuator Motion
      • Rotary
    • Spring Return
      • No
    • Supply Voltage Frequency : 50; 60 Hz
    • Supply Voltage : 220 VAC
    • Maximum Operating Ambient Temperature : 65 °C
    • Minimum Operating Ambient Temperature : -30 °C
    • Feedback Included : Yes
    • Manual Override Type : Hand-wheel
    • Brand : Honeywell
    • Position Indicator Type : Continuous Position Indicator
    • Feedback : 4-20mA or 0(2)-10V select by DIP switch voltage direct current
    • Actuator Type : Electric
    • Actuator Motion : Rotary
    • Spring Return : No
