Economizers & Ventilation Controls

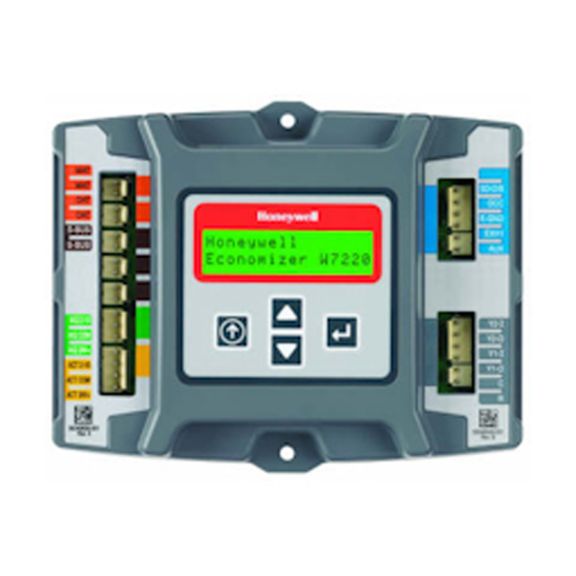

JADE™ W7220 Economizer Logic Module

JADE™ W7220 Economizers are used with CO2 sensors and solid state C7400 Enthalpy Sensors or C7660 Dry Bulb Temperature Sensors. The unit proportions outdoor and return-air dampers for control of free cooling in commercial HVAC equipment.

JADE™ W7220 Economizers are used with CO2 sensors and solid state C7400 Enthalpy Sensors or C7660 Dry Bulb Temperature Sensors. The unit proportions outdoor and return-air dampers for control of free cooling in commercial HVAC equipment. W7220 Economizer Module can be configured for 4 different economizer strategies: referential or differential dry bulb, referential or differential enthalpy. The W7220 Economizer Module can be used as a standalone economizer module wired directly to a commercial set back space thermostat and sensors to provide Outdoor Air dry-bulb economizer control. The W7220 Economizer Module can be connected to optional Sylk Bus sensors for single or differential enthalpy control. The W7220 Economizer Module provides power and communications on the Sylk Bus for the sensors. The W7220 Economizer Module automatically detects sensors by polling to determine which sensors are present. If a sensor loses communications after it has been detected, the W7220 Economizer indicates a device fail error on the display or through the AUX 1 OUT terminal programmed to SYS.

Features & Benefits:
  • Operates from thermostat and Demand Control Ventilation sensor to provide a totally integrated control system
  • Solid-state control package provides accurate, reliable and stable control
  • Control can be tempered by Demand Control Ventilation and fan cycling
  • The W7212 is used with Honeywell Series 72 actuators
  • Combines minimum and Demand Control Ventilation maximum damper position potentiometers and compressor staging relay functions with solid state enthalpy or single dry bulb changeover control
  • Terminals included for switching between Occupied and Unoccupied operation
  • Terminals included for connecting optional S963B1128 Remote Potentiometer for remote minimum damper position control
Certifications:
  • CE Compliant
  • C-Tick Approved
  • FCC Compliant
  • UL: Flammability Rating UL94V-5V
  • Complies with California Title 24

Others

  • Brand
    • Honeywell BMS NA

Others

  • Brand
    • Honeywell BMS NA
  • Brand : Honeywell BMS NA
Brochure
Name
Description
File Size
Date
Size
Brochure for W7220, Jade Economizer Controller (English)
application/pdf 373.75 KB
2/17/2022
373.75 KB
Brochure for Sylk Enabled Devices (English)
application/pdf 2.86 MB
2/17/2022
2.86 MB
Brochure for W7220, Jade Economizer Controller (Spanish)
application/pdf 317.93 KB
2/17/2022
317.93 KB
Brochure for W7220 JADE Partners In Success (Commercial Automation Contractor) (English)
application/pdf 578.55 KB
2/17/2022
578.55 KB
Brochure for W7220, Jade Economizer Controller (French)
application/pdf 337.04 KB
2/17/2022
337.04 KB
Installation Instructions
Name
Description
File Size
Date
Size
Installation Instruction
application/pdf 557.46 KB
2/17/2022
557.46 KB
Installation Instructions
application/pdf 525.94 KB
2/17/2022
525.94 KB
Installation Instructions
application/pdf 1.88 MB
2/17/2022
1.88 MB
Reference Guides
Name
Description
File Size
Date
Size
Design and Application Guide for Honeywell Economizer Controls - 63-8594
application/pdf 12.55 MB
2/17/2022
12.55 MB
Application Guide
application/pdf 1.08 MB
2/17/2022
1.08 MB
Economizers- Quick Selection Guide
application/pdf 339.48 KB
2/17/2022
339.48 KB
Engineering Specifications
Name
Description
File Size
Date
Size
Specification Data
application/pdf 595.83 KB
2/17/2022
595.83 KB
Specification Data
application/pdf 729.49 KB
2/17/2022
729.49 KB
Data Sheet
Name
Description
File Size
Date
Size
Installation Instructions
application/pdf 2.72 MB
2/17/2022
2.72 MB
INFORMACIÓN DEL PRODUCTO
application/pdf 3.35 MB
2/17/2022
3.35 MB
Sales Sheet
Name
Description
File Size
Date
Size
Cut Energy Costs with a Simple Rooftop Retrofit sell sheet
application/pdf 1.14 MB
8/19/2021
1.14 MB
Name
Description
File Size
Date
Size
Brochure for W7220, Jade Economizer Controller (English)
373.75 KB
2/17/2022
373.75 KB
Installation Instruction
557.46 KB
2/17/2022
557.46 KB
Design and Application Guide for Honeywell Economizer Controls - 63-8594
12.55 MB
2/17/2022
12.55 MB
Installation Instructions
525.94 KB
2/17/2022
525.94 KB
Application Guide
1.08 MB
2/17/2022
1.08 MB
Specification Data
595.83 KB
2/17/2022
595.83 KB
Economizers- Quick Selection Guide
339.48 KB
2/17/2022
339.48 KB
Brochure for Sylk Enabled Devices (English)
2.86 MB
2/17/2022
2.86 MB
Installation Instructions
2.72 MB
2/17/2022
2.72 MB
Brochure for W7220, Jade Economizer Controller (Spanish)
317.93 KB
2/17/2022
317.93 KB
Installation Instructions
1.88 MB
2/17/2022
1.88 MB
Brochure for W7220 JADE Partners In Success (Commercial Automation Contractor) (English)
578.55 KB
2/17/2022
578.55 KB
Specification Data
729.49 KB
2/17/2022
729.49 KB
INFORMACIÓN DEL PRODUCTO
3.35 MB
2/17/2022
3.35 MB
Brochure for W7220, Jade Economizer Controller (French)
337.04 KB
2/17/2022
337.04 KB
Cut Energy Costs with a Simple Rooftop Retrofit sell sheet
1.14 MB
8/19/2021
1.14 MB
SKU
Description
alt
W7220A1035/B
JADE Economizer logic module with DCV and commissioning for Economizer systems, Special for Lennox, Bulk Pack
alt
W7220A1010/B
JADE Economizer logic module with DCV and commissioning for Economizer systems, Special for Carrier, Bulk Pack
alt
W7220A1000/U
JADE Economizer Logic Module, with DCV and Commissioning for Economizer Systems
alt
W7220A1018/B
JADE Economizer logic module with DCV and commissioning for Economizer systems, Special for Rheem, Bulk Pack
alt
W7220-PCMOD/U
PC Tool Software Interface Module for Economizer Systems
