TC500A Commercial Thermostat
The TC500A Commercial Connected Thermostat automatically monitors and controls indoor comfort. It controls and monitors RTU, Heat Pump equipment, and their configurations.
Overview
The TC500A-N Smart thermostat is an advanced, highly configurable, connected device designed for the unique needs of commercial buildings. It is suitable for conventional and heat pump applications both with or without economizer.
The TC500A-N supports remote wireless control via Honeywell’s ConnectMe mobile app allowing occupants and facility managers to perform remote monitoring, control, and scheduling. Configuration and scheduling are also supported using BAS integration via BACnet IP or BACnet MS/TP. Superior energy efficiency, comfort, and maximum system performance are achieved via advanced scheduling, differential temperature monitoring, internal/external economizer integration, and open ADR (automated demand response) compatibility.
The device is easily configured in three different ways including: intuitive user guided set-up, mobile Honeywell ConnectMobile app, or via BAS and TC500 Niagara Tool.
Features & Benefits:- Smart commercial application thermostat with flexible customization and highly intuitive user interface
- Supports RTU/AHU applications 5H/3C heat pump or 3H/4C conventional plus modulating heating and/or cooling for conventional systems and select FCU applications.
- Provides modulating cooling output for inverter type or CopelandTM digital scroll compressor controllers
- Premium color touch screen interface (edge-to-edge glass) with auto sleep mode and 3 color operating status indicator bar
- Wireless and wired communication via Wi-Fi, Bluetooth, BACnet IP, BACnet MS/TP, and Sylk
- Multiple, configurable levels of user privilege access such as setpoint limits, reminders, and scheduling with lockouts for advanced configurations
- Fast and simple contractor commissioning through Honeywell Connect Mobile App, TC500 guided menu, or via Niagara BACnet tool
- Flexible, configurable universal inputs/outputs, including (2) inputs and (2) inputs/outputs to support a wide variety of applications
- Integrated economizer function with fault detection and predictive differential temperature monitoring for easy troubleshooting.
- Advanced level functionality including contractor service mode, demand response, packaged economizer support, cybersecurity, freeze protection, and more
- Weekly, holiday, and special event scheduling flexibility
Specifications
Others
- Analog Output Signal
- 2 UIOs (0-10 Vdc)
- Supply Voltage
- 24 voltage alternating current
- Minimum Shipping & Storage Temperature
- -40 degree Celsius
- -40 degree Fahrenheit
- Overall Depth
- 0.937 inch
- 23.8 millimetre
- Overall Height
- 113.7 millimetre
- 4.469 inch
- Overall Width
- 3.594 inch
- 91.2 millimetre
- Maximum Shipping & Storage Temperature
- 150 degree Fahrenheit
- 65.5 degree Celsius
- Mounting Type
- Wall inch
- Sensor Element
- Humidity
- Temperature
- For Use With
- Indoor/Outdoor Air Temp Sensor ; Discharge or Supply air sensor ; CO2 sensor ; Mixed air sensor ; Occupancy sensor ; Dirty filter ; Proof of airflow ; Proof of waterflow ; Sylk Sensor Bus devices (TR40 series and C7400S) volt
- Regulatory Approvals
- CE ; FCC ; ICES ; UL/cUL ; RoHs ; REACH ; Title 24 (coming soon) ; BTL (coming soon) Watt
- Occupancy Sensor
- PIR Ready
- Thermostat Switch Positions
- HEAT-OFF-COOL-AUTO
- Supply Voltage Frequency
- 50 hertz
- 60 hertz
- Includes

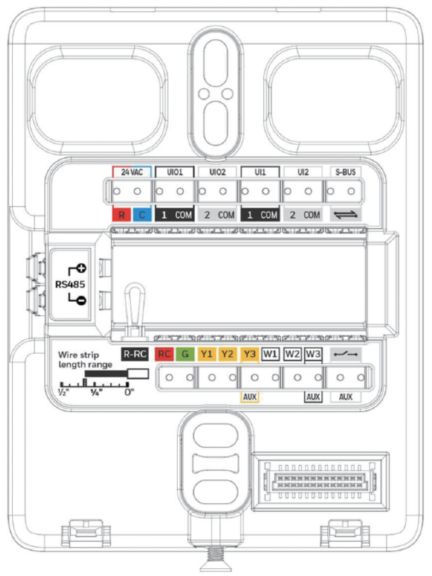

- 2 UIOs, 2 UIs, 8 DOs (G, Y1, Y2, Y3, W1, W2, W3, Aux) voltage alternating current
- Digital Output Signal
- Relay Dry Contact (AUX) voltage alternating current
- Relay Output (G, Y1, Y2, Y3, W1, W2, W3) voltage alternating current
- Analog Inputs
- 2 UIOs and 2 Uis (10K NTC type II, 10K NTC type III, 20K NTC, 0-10 Vdc)
- Electrical Connection
- 18-22 AWG Solid Wire
- Changeover Method
- Auto or Manual
- Program Schedule
- 7-day
- Brand
- Honeywell BMS
- User Interface
- 4 inch diagonal, 480x480 pixel capacitive touch panel inch
- Stages
- 3 Heat / 3 Cool Conventional
- 5 Heat / 3 Cool Heat Pump
- Network Communications
- BACnet IP over Wi-Fi
- BACnet MS/TP
- Wi-Fi 802.11 b/g/n
Others
- Analog Output Signal
- 2 UIOs (0-10 Vdc)
- Supply Voltage
- 24 voltage alternating current
- Minimum Shipping & Storage Temperature
- -40 degree Celsius
- -40 degree Fahrenheit
- Overall Depth
- 0.937 inch
- 23.8 millimetre
- Overall Height
- 113.7 millimetre
- 4.469 inch
- Overall Width
- 3.594 inch
- 91.2 millimetre
- Maximum Shipping & Storage Temperature
- 150 degree Fahrenheit
- 65.5 degree Celsius
- Mounting Type
- Wall inch
- Sensor Element
- Humidity
- Temperature
- For Use With
- Indoor/Outdoor Air Temp Sensor ; Discharge or Supply air sensor ; CO2 sensor ; Mixed air sensor ; Occupancy sensor ; Dirty filter ; Proof of airflow ; Proof of waterflow ; Sylk Sensor Bus devices (TR40 series and C7400S) volt
- Regulatory Approvals
- CE ; FCC ; ICES ; UL/cUL ; RoHs ; REACH ; Title 24 (coming soon) ; BTL (coming soon) Watt
- Occupancy Sensor
- PIR Ready
- Thermostat Switch Positions
- HEAT-OFF-COOL-AUTO
- Supply Voltage Frequency
- 50 hertz
- 60 hertz
- Includes
- 2 UIOs, 2 UIs, 8 DOs (G, Y1, Y2, Y3, W1, W2, W3, Aux) voltage alternating current
- Digital Output Signal
- Relay Dry Contact (AUX) voltage alternating current
- Relay Output (G, Y1, Y2, Y3, W1, W2, W3) voltage alternating current
- Analog Inputs
- 2 UIOs and 2 Uis (10K NTC type II, 10K NTC type III, 20K NTC, 0-10 Vdc)
- Electrical Connection
- 18-22 AWG Solid Wire
- Changeover Method
- Auto or Manual
- Program Schedule
- 7-day
- Brand
- Honeywell BMS
- User Interface
- 4 inch diagonal, 480x480 pixel capacitive touch panel inch
- Stages
- 3 Heat / 3 Cool Conventional
- 5 Heat / 3 Cool Heat Pump
- Network Communications
- BACnet IP over Wi-Fi
- BACnet MS/TP
- Wi-Fi 802.11 b/g/n
- Analog Output Signal : 2 UIOs (0-10 Vdc)
- Supply Voltage : 24 voltage alternating current
- Minimum Shipping & Storage Temperature : -40 degree Celsius|-40 degree Fahrenheit
- Overall Depth : 0.937 inch|23.8 millimetre
- Overall Height : 113.7 millimetre|4.469 inch
- Overall Width : 3.594 inch|91.2 millimetre
- Maximum Shipping & Storage Temperature : 150 degree Fahrenheit|65.5 degree Celsius
- Mounting Type : Wall inch
- Sensor Element : Humidity|Temperature
- For Use With : Indoor/Outdoor Air Temp Sensor ; Discharge or Supply air sensor ; CO2 sensor ; Mixed air sensor ; Occupancy sensor ; Dirty filter ; Proof of airflow ; Proof of waterflow ; Sylk Sensor Bus devices (TR40 series and C7400S) volt
- Regulatory Approvals : CE ; FCC ; ICES ; UL/cUL ; RoHs ; REACH ; Title 24 (coming soon) ; BTL (coming soon) Watt
- Occupancy Sensor : PIR Ready
- Thermostat Switch Positions : HEAT-OFF-COOL-AUTO
- Supply Voltage Frequency : 50 hertz|60 hertz
- Includes : 2 UIOs, 2 UIs, 8 DOs (G, Y1, Y2, Y3, W1, W2, W3, Aux) voltage alternating current
- Digital Output Signal : Relay Dry Contact (AUX) voltage alternating current|Relay Output (G, Y1, Y2, Y3, W1, W2, W3) voltage alternating current
- Analog Inputs : 2 UIOs and 2 Uis (10K NTC type II, 10K NTC type III, 20K NTC, 0-10 Vdc)
- Electrical Connection : 18-22 AWG Solid Wire
- Changeover Method : Auto or Manual
- Program Schedule : 7-day
- Brand : Honeywell BMS
- User Interface : 4 inch diagonal, 480x480 pixel capacitive touch panel inch
- Stages : 3 Heat / 3 Cool Conventional|5 Heat / 3 Cool Heat Pump
- Network Communications : BACnet IP over Wi-Fi|BACnet MS/TP|Wi-Fi 802.11 b/g/n
