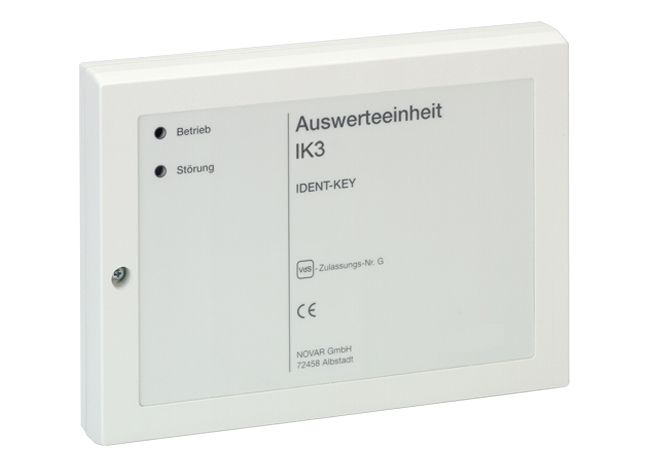

Conventional IK3 Evaluating Unit

The Conventional IK3 Evaluation Unit is a BUS-2 system enables the use of almost all common RFID technologies for arming/disarming and for access control. Depending on the object requirement and safety level, from proxy to LEGIC (advant) to mifare DESFire EV1/EV2 can be used. Compatibility with encrypted Honeywell application with different keys per disk (diversified keys), encoding is done by IQ Multi-access/System Control, only with luminAXS readers. The conventional IK3-evaluating unit can be used for control panels equipped with block lock connection.

Up to four readers can be connected to the evaluating unit via the RS-485 interface. The IDENT-KEY system allows an allocation to time zones and recording of the locking times and key numbers. In the disarmed state, a door locked by a door strike can be released via the operating unit and/or a key (access control function). The programming of the application-specific data (e.g. key numbers, time-dependent entitlements, etc.) can be done directly at the evaluating unit via WINFEM Advanced). Both arming and access control functions can be carried out by pin, card or the pin/card combination.

• Arming/disarming of an intrusion detection system
• Access control functions
• Operation via data carrier and/or pin code
• Unambiguous identification and recording
• Contactless and thus wear-resistant data, information and energy transmission
• Maximum safety through mifare DESFire EV1/EV2
• Individual pin for each data carrier/user
• Management of access control functions, such as the allocation of user entitlements in time zones
• Alarm in case of threat through hold-up code

• G106073, class C
• RoHS 2011/65/EU
• EMC 2014/30/EU
• EN 55022:2010
• EN 50581:2012
