I/O Modules

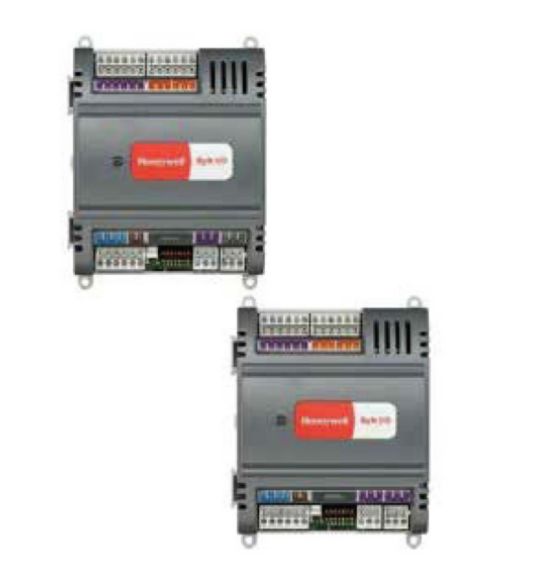

Sylk™ I/O Module
Sylk™ I/O modules are part of the Spyder® family of products and expand the footprint of a single Spyder device, increasing the controller's ability in situations that require a large amount of physical I/O.
Overview
Sylk™ I/O modules are part of the Spyder® family of products. The three I/O modules are designed for seamless integration with the Spyder relay controllers using Sylk™ for communication. These devices expand the footprint of a single Spyder device, increasing the controller's ability in situations that require a large amount of physical I/O. The Sylk I/O modules are programmable using existing Spyder wire sheets through the use of Niagara Framework® software. Since the Sylk I/O modules are extensions of the Spyder LON and Spyder BACnet controllers, the same feature will be leveraged in the WebPro workbench and the WEBs-AX JACE controller.
Features & Benefits:- Expands a single Spyder controller's IO count by 8-12 IO per device
- Up to three devices for LON Spyders and two devices for BACnet Spyders can be applied
- Programming is built directly into the Spyder tool
- Installation can be done locally or remotely
- All wiring connections are made to removable terminal blocks to simplify device installation and replacement
- UL Listed
Specifications
Others
- Minimum Operating Voltage
- 20 voltage alternating current
- Minimum Operating Humidity
- 5% (Non-Condensing)
- Maximum Operating Humidity
- 95% (Non-Condensing)
- Maximum Power Consumption
- 100 volt amp
- Maximum Operating Ambient Temperature
- 150 degree Fahrenheit
- 65.5 degree Celsius
- Maximum Operating Voltage
- 20 - 30 voltage alternating current
- 30 voltage alternating current
- Minimum Operating Ambient Temperature
- -40 degree Celsius
- -40 degree Fahrenheit
- LED Circuit-Status Indicators
- 2
- Type
- I/O Module
- Network Connector Type
- Sylk™ Bus
- Memory Back-Up
- 128 kB (RAM) hours
- 512 kB (Flash) hours
- Product Type
- I/O Module Degrees Celsius
- Communications Protocol
- Sylk™ Bus
- Concentrator Type
- 2-Wired
- Brand
- Honeywell BMS NA
- For Use With
- Spyder with Relay modules, PUL6438SR (for LON) and PUB6438SR (for BACnet) millimetre
- Terminal Type
- Removable inch
- Approved Location
- CE ampere
- CSA ampere
- EMC Directive: 2014/30/EU ampere
- EN 60730-2-9 ampere
- EN 61000-6-3:2007/A1:2011/AC: 2012 ampere
- EN60730-2-14/A1: 2001 ampere
- FCC Part 15 Class B ampere
- UL ampere
- cULus ampere
- Mounting Type
- DIN Rail inch
- Panel inch
Others
- Minimum Operating Voltage
- 20 voltage alternating current
- Minimum Operating Humidity
- 5% (Non-Condensing)
- Maximum Operating Humidity
- 95% (Non-Condensing)
- Maximum Power Consumption
- 100 volt amp
- Maximum Operating Ambient Temperature
- 150 degree Fahrenheit
- 65.5 degree Celsius
- Maximum Operating Voltage
- 20 - 30 voltage alternating current
- 30 voltage alternating current
- Minimum Operating Ambient Temperature
- -40 degree Celsius
- -40 degree Fahrenheit
- LED Circuit-Status Indicators
- 2
- Type
- I/O Module
- Network Connector Type
- Sylk™ Bus
- Memory Back-Up
- 128 kB (RAM) hours
- 512 kB (Flash) hours
- Product Type
- I/O Module Degrees Celsius
- Communications Protocol
- Sylk™ Bus
- Concentrator Type
- 2-Wired
- Brand
- Honeywell BMS NA
- For Use With
- Spyder with Relay modules, PUL6438SR (for LON) and PUB6438SR (for BACnet) millimetre
- Terminal Type
- Removable inch
- Approved Location
- CE ampere
- CSA ampere
- EMC Directive: 2014/30/EU ampere
- EN 60730-2-9 ampere
- EN 61000-6-3:2007/A1:2011/AC: 2012 ampere
- EN60730-2-14/A1: 2001 ampere
- FCC Part 15 Class B ampere
- UL ampere
- cULus ampere
- Mounting Type
- DIN Rail inch
- Panel inch
- Minimum Operating Voltage : 20 voltage alternating current
- Minimum Operating Humidity : 5% (Non-Condensing)
- Maximum Operating Humidity : 95% (Non-Condensing)
- Maximum Power Consumption : 100 volt amp
- Maximum Operating Ambient Temperature : 150 degree Fahrenheit|65.5 degree Celsius
- Maximum Operating Voltage : 20 - 30 voltage alternating current|30 voltage alternating current
- Minimum Operating Ambient Temperature : -40 degree Celsius|-40 degree Fahrenheit
- LED Circuit-Status Indicators : 2
- Type : I/O Module
- Network Connector Type : Sylk™ Bus
- Memory Back-Up : 128 kB (RAM) hours|512 kB (Flash) hours
- Product Type : I/O Module Degrees Celsius
- Communications Protocol : Sylk™ Bus
- Concentrator Type : 2-Wired
- Brand : Honeywell BMS NA
- For Use With : Spyder with Relay modules, PUL6438SR (for LON) and PUB6438SR (for BACnet) millimetre
- Terminal Type : Removable inch
- Approved Location : CE ampere|CSA ampere|EMC Directive: 2014/30/EU ampere|EN 60730-2-9 ampere|EN 61000-6-3:2007/A1:2011/AC: 2012 ampere|EN60730-2-14/A1: 2001 ampere|FCC Part 15 Class B ampere|UL ampere|cULus ampere
- Mounting Type : DIN Rail inch|Panel inch
Sort
Others
Document Title
Document Type
File Size
1.83 MB
Data Sheet
Document Title
Document Type
File Size
Document Title
Document Type
File Size
1.83 MB
Product Number
SKU
Description
SIO12000
Sylk IO Module, 12 UI, 0 DI, 0 AO, 0 DO
SIO4022
Sylk IO Module, 4 UI, 0 DI, 2 AO, 2 DO
SIO6042
Sylk IO Module, 6 UI, 0 DI, 4 AO, 2 DO
SKU
Description
SIO12000
Sylk IO Module, 12 UI, 0 DI, 0 AO, 0 DO
SIO4022
Sylk IO Module, 4 UI, 0 DI, 2 AO, 2 DO
SIO6042
Sylk IO Module, 6 UI, 0 DI, 4 AO, 2 DO
