    Monitors & Displays

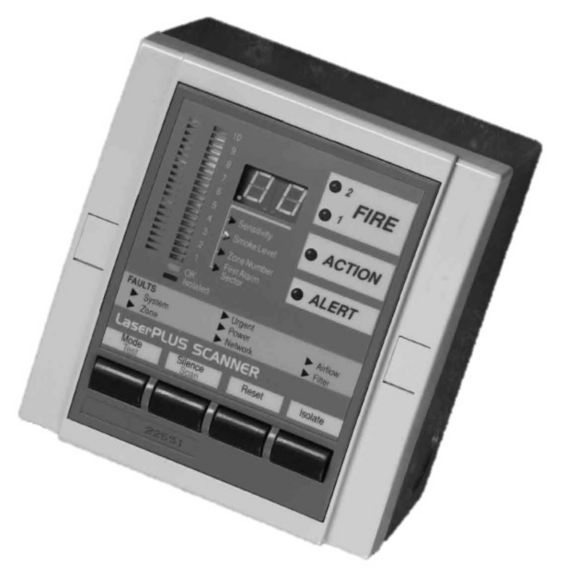

    Vesda Remote Mount Display

    Vesda Remote Mount Display modules provide real-time indication of the status of a VESDA detector. They have a 20-segment vertical bar graph display, a 2 digit numeric display, an audible sounder, clear alarm and fault indicators

    Overview

    Vesda Remote Mount Display Module with Remote Termination Card which has been designed for use with the LaserSCANNER range and provide real-time indication of the status of a VESDA detector.

    Features & Benefits:
    • Provides Immediate Status Reporting for a Single VESDA Zone
    • Allows Zone Control of Assigned VESDA Detector
    • High Intensity Alarm LEDs
    • Remote Relay Option
    • 20-Segment Vertical Bar Graph Display
    • Alarm Threshold Indicators
    • Built-In Sounder for Audible Warning
    • Comprehensive Fault Reporting
    • Multi-mode Numeric Display (defaults to smoke obscuration)
    • Recessed Mounting Option
    Certifications:
    • ActivFire
    • FM
    • LPCB
    • UL
    • ULC
    • VdS
    Specifications

    Others

    • Maximum Wiring Distance
      • 4000 foot
    • Maximum Operating Humidity
      • 99 Percentage
    • Minimum Operating Humidity
      • 10 Percentage
    • Mount Depth
      • 3.14 inch
      • 85 millimetre
    • Mount Width
      • 140 millimetre
      • 5.5 inch
    • Alarm Current
      • 110 (Remote Mounting Box) milliampere
      • 80 (Module) milliampere
    • Mount Height
      • 150 millimetre
      • 5.9 inch
    • Brand
      • Xtralis
    • Light Bulb Type
      • LED
    • Zones
      • 2 Zones

    Others

    • Maximum Wiring Distance
      • 4000 foot
    • Maximum Operating Humidity
      • 99 Percentage
    • Minimum Operating Humidity
      • 10 Percentage
    • Mount Depth
      • 3.14 inch
      • 85 millimetre
    • Mount Width
      • 140 millimetre
      • 5.5 inch
    • Alarm Current
      • 110 (Remote Mounting Box) milliampere
      • 80 (Module) milliampere
    • Mount Height
      • 150 millimetre
      • 5.9 inch
    • Brand
      • Xtralis
    • Light Bulb Type
      • LED
    • Zones
      • 2 Zones
    • Maximum Wiring Distance : 4000 foot
    • Maximum Operating Humidity : 99 Percentage
    • Minimum Operating Humidity : 10 Percentage
    • Mount Depth : 3.14 inch|85 millimetre
    • Mount Width : 140 millimetre|5.5 inch
    • Alarm Current : 110 (Remote Mounting Box) milliampere|80 (Module) milliampere
    • Mount Height : 150 millimetre|5.9 inch
    • Brand : Xtralis
    • Light Bulb Type : LED
    • Zones : 2 Zones
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    VESDA Display Modules Data Sheet
    application/pdf 664.65 KB
    5/14/2023
    664.65 KB
    Name
    Description
    File Size
    Date
    Size
    VESDA Display Modules Data Sheet
    application/pdf 664.65 KB
    5/14/2023
    664.65 KB
    Name
    Description
    File Size
    Date
    Size
    VESDA Display Modules Data Sheet
    664.65 KB
    5/14/2023
    Product Number
    Part Number
    Description
    Add to list
    VRT-700
    Vesda Remote Mount Display, 3 W, 24V DC, 110mA, 140x150x5mm
