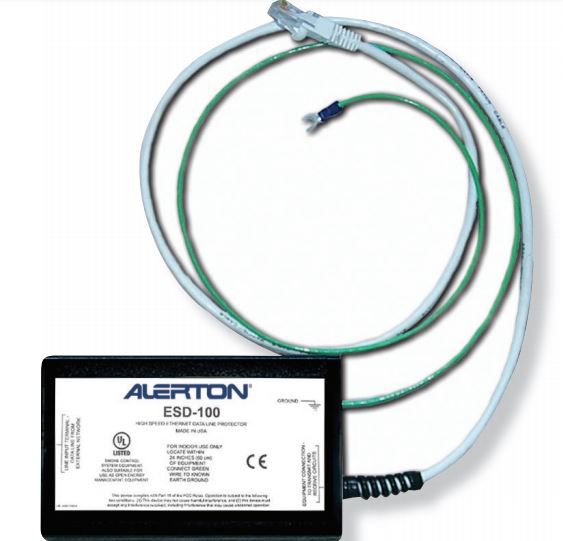

ESD-100 Line Protector

The Alerton ESD-100 is an Ethernet data line protector, which protects equipment connected to unshielded twisted pair (UTP) Ethernet networks from transient voltage. Use the ESD-100 on 10Base-T or 100Base-TX Ethernet networks. The ESD-100 is a low capacitance, two-stage transient voltage protector that provides primary and secondary protection against lightning, inductive switching, and electrostatic discharge (ESD). The fi rst stage directs the transient current through the ground terminal return path, and the second stage clamps the voltage to a safe level without interrupting service.

• Two-stage transient protection
• Direct to ground and voltage clamping
• RJ-45 jack and plug provide simple connection to the network and protected equipment

• FCC Part 15, Subpart J, Class A
• Listed UL 864/UUKL Smoke Control System Equipment in U.S. only
• Listed ULC/ORD-C 100-1992
• Listed Underwriters Laboratory for Open Energy Management (PAZX) under the UL Standard for Safety 916
• Listing in U.S. only Underwriters Laboratories, Inc
• Smoke Control System Equipment EMC Directive 89/336/EEC (European CE Mark)
• Underwriters Laboratories of Canada
