Discontinued
Web Panels

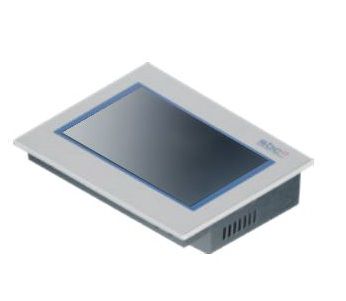

PCD7 7.0in Web Panel
The PCD7 7.0in web panels are equipped with a high-quality TFT display and longer-lived LED backlight. These panels are designed for use in outdoor environments with an operating temperature range in between –20C to +70C.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The PCD7 7.0in web panels are equipped with a high-quality TFT display and longer-lived LED backlight. These panels are designed for use in outdoor environments with an operating temperature range in between –20C to +70C. The user application created for this panel in the wide screen form factor is able to fill the display completely. The powerful CPU based on the ST-3 platform provides fast response and load times. In addition to a USB port, an Ethernet port is standard on the device.
Features & Benefits:- LED backlight with adjustable contrast
- Ethernet interface
- WVGA 800 × 480 pixel with resistive touch-screen
- TFT technology
- EU Confirmed
- CE
Honeywell will provide product support until
