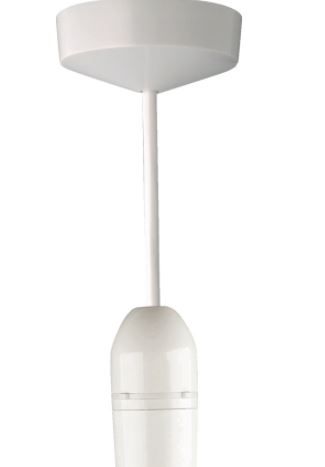

1146WHI Pendant Set

Pendant Set by MK Electric offers a comprehensive range of white ceiling accessories for all requirements. It is manufactured from the highest quality materials to give a high gloss finish which is both scratch and colour fade resistant.

Pendant Set by MK Electric offers a comprehensive range of white ceiling accessories for all requirements. It is manufactured from the highest quality materials to give a high gloss finish, which is both scratch and colour fade resistant. The product is 100% tested before delivery for confidence so a fit and forget installation can be achieved.

Features & Benefits:
  • 150mm Pendant set
  • Maximum current = 6 Amps
  • Terminal Capacity - 4 x 1mm², 3 x 1.5mm² or 1 x 2.5mm²
  • The ceiling rose has a clear base and pre-cut appertures for easy of installation
  • The pendant set incorporatea a SG lampholder (1150WHI), heat
  • resisting PVC insulated and sheathed flexible 0.75mm²
  • two core circular cable complying with BS EN 50525-2-11
  • The Shockguard SG lampholder automaticlly shields the contact, immedately the lamp is removed
  • While there is no lamp in place, there is no danger of electrocution
  • The ceiling rose fitted with line, neutral, loop-in and earth terminals This assembly will support a light fitting of up to 3kgs.
Certifications:
  • Conforms to BSEN61184:1997 inc. Amd 1 + 2: Specification for bayonet lampholders and BS7895:1997 inc. Amd 1 + 2: Specification for bayonet lampholders with enhanced safety
  • Low Voltage Directive 2014/35/EU
  • RoHS Directive - 2011/65/EU
  • CE Marked
  • IP4X

Others

  • Brand
    • MK Electric

Others

  • Brand
    • MK Electric
  • Brand : MK Electric
SKU
Description
alt
1146RPWHI
150mm Shockguard Plus Pendant
