Screed Floor Systems

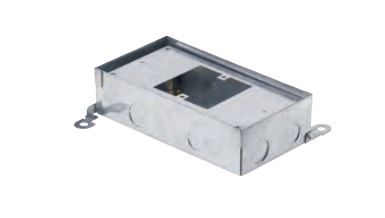

Onix Plus Metal Power Grommet

Onix Plus metal power grommets provides access to power in areas where standard plastic grommets are not robust enough, where improved aesthetics are required, or a wet wash solution is required.

Onix Plus floorboxes and power grommets are a unique, innovative solution to hard floor power and data distribution requirements in screed floors with coverings such as laminate, wood, stone and marble. Stylish and robust design offers superior load bearing performance and greater durability. Floorbox lids with snorkel or plain lid provide wet wash solutions. The range of power grommets provide access to power in areas where standard plastic grommets are not robust enough, where improved aesthetics are required, or a wet wash solution is required. Onix Plus metal power grommets are available in aluminium, nickel and brass finish.

Features & Benefits:
  • Metal Power Grommet
  • Screed Base Unit
  • The ONIX power grommets provide access to power in areas where standard plastic grommets are not robust enough, where improved aesthetics are required, or a wet wash solution is required.
  • 100-1 Version = 55 - 80mm depth
  • 100-X1 Version = 80 - 110mm depth
  • Conduit entry only, not compatible with ducting
Certifications:
  • Conforms to BS EN 50085-2-2:2008 (Clauses 10.3 and 10.5), BS EN 60670-1:2005, IEC 60670-23:2006
  • BS EN 60529:1992
  • Classification according to resistance to vertical load applied through small surface area 3000N
  • Classification according to resistance to vertical load applied through large surface area 10000N
  • Low Voltage Directive 2014/35/EU
  • RoHS Directive 2011/65/EU
  • CE Marked
  • Wet Washable IP Rating = IP44, when the lid is closed

Others

  • Number of Compartments
    • 1
  • Brand
    • MK Electric

Others

  • Number of Compartments
    • 1
  • Brand
    • MK Electric
  • Number of Compartments : 1
  • Brand : MK Electric
SKU
Description
alt
NXGB100-1
Metal Power Grommet, 55-80mm Depth, 3-pin Safety Shutter, Conduit Only
