Wall Switches

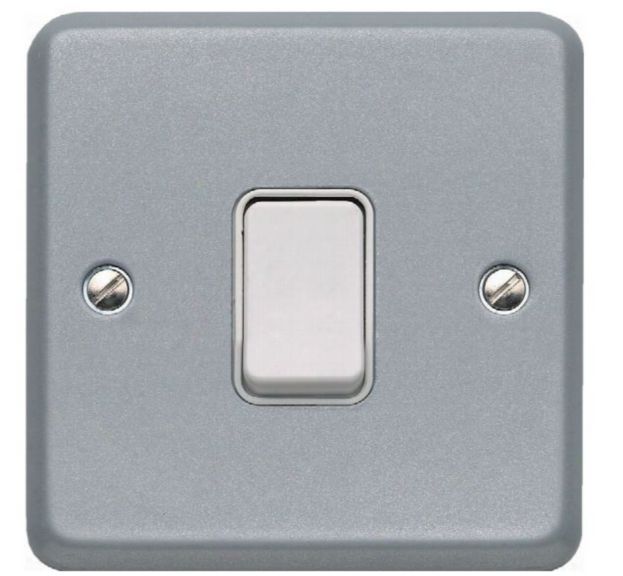

Metalclad Plus™ Switch
Metalclad Plus™ Switch is 10A, Single pole switch. An earth terminal is provided attached to rear of product and in base of mounting box1 & 2 gang wide rocker versions.
Overview
A comprehensive range of tough, impactresistant, surface mounted switches. Theyhave been designed to suit a wide variety ofapplications in factories, workshops, plantrooms, warehouses, schools and hospitals.The frontplate has smooth chamfered edgesengineered to fit flush with the backbox.Backboxes with or without side knockouts areavailable and all have a central knockout inthe base.
Features & Benefits:- Plate Switch, 1 Gang, 2 Way,
- 10A Current rating
- Single pole
- Terminal capacity 4 x 1mm, 4 x 1.5mm, 3 x 2.5mm or 1 x ,6mm²
- Positive switch action
- Does not need to e de-rated when used on fluorescent loads
- Printed terminal markings on grey rear moulding for clearer identification
- Only one size screwdriver required for installation
- Surface box knockouts = 6 x 20mm - two on one side, one in each of the other 3 sides, plus one in the base
- Confirms to IEC60669-12017 / BS EN60669-1, 2018
- Low Voltage Directive 2014/35/
- RoHS Directive 2011/65/EU
- Amendment RoHS Directive (EU) 2015/863
- CE Marked
- IP Rating = IP2XD
Specifications
Others
- Current Rating
- 10 ampere
- Brand
- MK Electric
- High Current
- No ampere
- Ways
- 2 millimetre
- Gangs
- 1
- Poles
- 1
- Finish
- Aluminum
Others
- Current Rating
- 10 ampere
- Brand
- MK Electric
- High Current
- No ampere
- Ways
- 2 millimetre
- Gangs
- 1
- Poles
- 1
- Finish
- Aluminum
- Current Rating : 10 ampere
- Brand : MK Electric
- High Current : No ampere
- Ways : 2 millimetre
- Gangs : 1
- Poles : 1
- Finish : Aluminum
Product Number
SKU
Description
K3591RPALM
Metalclad Plus™ Switch, 10A, 1 gang, single pole, 2 way, RP, Aluminium
SKU
Description
K3591RPALM
Metalclad Plus™ Switch, 10A, 1 gang, single pole, 2 way, RP, Aluminium
