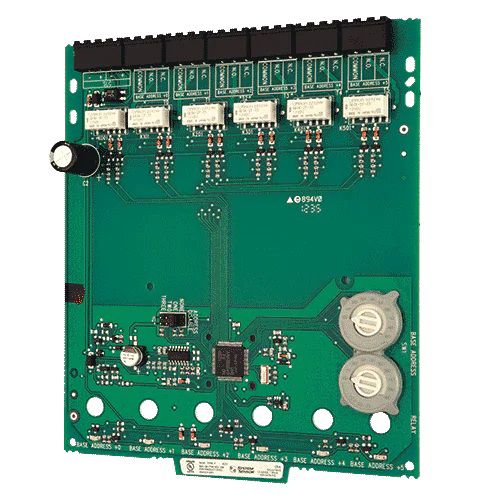

Six Circuit Supervised Control Module

Six Circuit Supervised Control Modules by Farenhyt are intended for use in an intelligent alarm systems for AC or DC switching applications which requires wiring supervision.

Farenhyt brings Six Circuit Supervised Control Modules which are intended for use in an intelligent alarm system. Each module is intended for switching applications involving AC, or DC which require wiring supervision. A common SLC input is used for all modules. Each module has its own address. A pair of rotary code switches is used to set the address of the first module from 01 to 94. The remaining modules are automatically assigned to the next five higher addresses. Provisions are included for disabling a maximum of three unused modules to release the addresses to be used elsewhere. Each module also has panel controlled green LED indicators.

Features & Benefits:
  • Provisions are included for disabling a maximum of three unused modules
  • Each module has terminals for connection to an external supply circuit for powering devices on its NAC
  • There is a short circuit protection monitor for each module
Certifications:
  • UL Listed
  • MEA
  • CSFM

Others

  • End of Line Resistance
    • 47 kO
  • Maximum Operating Humidity
    • 85 Percentage
  • LED Current
    • 35 milliampere
  • Alarm Current
    • 35 milliampere
  • Maximum Operating Voltage
    • 15 - 32 DC volt
    • 15 DC volt
  • Maximum Power Consumption
    • 63 watt
  • Maximum Wire Gauge
    • 12
  • Minimum Wire Gauge
    • 18
  • LED Circuit-Status Indicators
    • 6
  • Brand
    • Farenhyt
  • Supported Wiring Configuration
    • Class B

Others

  • End of Line Resistance
    • 47 kO
  • Maximum Operating Humidity
    • 85 Percentage
  • LED Current
    • 35 milliampere
  • Alarm Current
    • 35 milliampere
  • Maximum Operating Voltage
    • 15 - 32 DC volt
    • 15 DC volt
  • Maximum Power Consumption
    • 63 watt
  • Maximum Wire Gauge
    • 12
  • Minimum Wire Gauge
    • 18
  • LED Circuit-Status Indicators
    • 6
  • Brand
    • Farenhyt
  • Supported Wiring Configuration
    • Class B
  • Maximum Wire Gauge : 12
  • Minimum Wire Gauge : 18
  • LED Circuit-Status Indicators : 6
  • Brand : Farenhyt
  • Supported Wiring Configuration : Class B
  • End of Line Resistance : 47 kO
  • Maximum Operating Humidity : 85 Percentage
  • LED Current : 35 milliampere
  • Alarm Current : 35 milliampere
  • Maximum Operating Voltage : 15 - 32 DC volt|15 DC volt
  • Maximum Power Consumption : 63 watt
Others
Name
Description
File Size
Date
Size
Dispositivos direccionales con Protocolo de dispositivo inteligente Data Sheet
application/pdf 319.51 KB
5/9/2022
319.51 KB
Addressable Device Guide
application/pdf 634.41 KB
5/9/2022
634.41 KB
IFP-1000 Sales Guide
application/pdf 654.91 KB
5/9/2022
654.91 KB
Farenhyt Accessories Guide Brochure
application/pdf 634.41 KB
5/9/2022
634.41 KB
IDP-Zone Addressable Zone Interface Module Fire Listing
application/pdf 166.94 KB
5/9/2022
166.94 KB
Analog-Addressable Devices with Intelligent Device Protocol Data Sheet
application/pdf 273.93 KB
5/7/2022
273.93 KB
IDP-CONTROL-6 Addressable Notification Module Data Sheet
application/pdf 605.48 KB
5/7/2022
605.48 KB
350294 J IDP-Control-6 Datasheet
0 Bytes
5/5/2022
0 Bytes
Isolator Load Rating Table Brochure
application/pdf 38.09 KB
3/9/2022
38.09 KB
Name
Description
File Size
Date
Size
Dispositivos direccionales con Protocolo de dispositivo inteligente Data Sheet
319.51 KB
5/9/2022
319.51 KB
Addressable Device Guide
634.41 KB
5/9/2022
634.41 KB
IFP-1000 Sales Guide
654.91 KB
5/9/2022
654.91 KB
Farenhyt Accessories Guide Brochure
634.41 KB
5/9/2022
634.41 KB
IDP-Zone Addressable Zone Interface Module Fire Listing
166.94 KB
5/9/2022
166.94 KB
Analog-Addressable Devices with Intelligent Device Protocol Data Sheet
273.93 KB
5/7/2022
273.93 KB
IDP-CONTROL-6 Addressable Notification Module Data Sheet
605.48 KB
5/7/2022
605.48 KB
350294 J IDP-Control-6 Datasheet
0 Bytes
5/5/2022
0 Bytes
Isolator Load Rating Table Brochure
38.09 KB
3/9/2022
38.09 KB
SKU
Description
alt
IDP-CONTROL-6
Control Module, Six Circuit, 15-32V DC, 2.25mA, 0 to49C, 40 Ohms, 6.8x5.8x1.25in
