Power Distribution Board

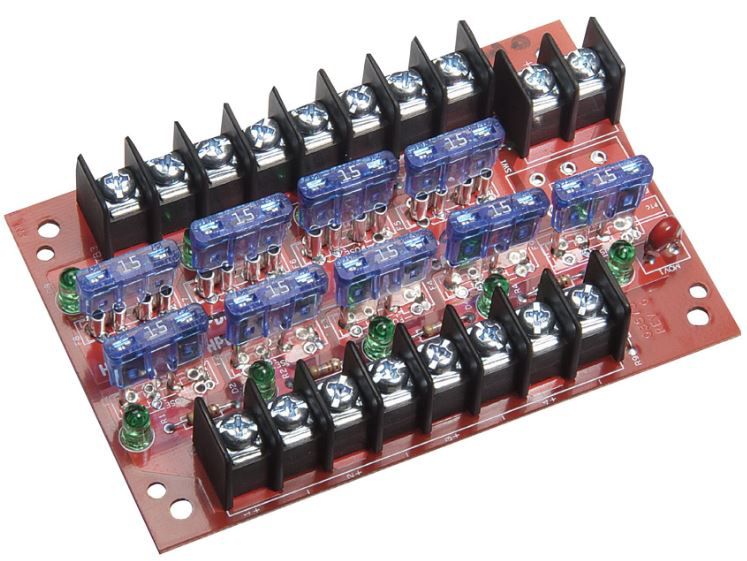

The HPD8 and HPD8CB power distribution boards convert one low-voltage supply output to four or eight individually fused or PTC protected outputs.
Overview
The HPD8 and HPD8CB power distribution boards convert one low-voltage supply output to four or eight individually fused or PTC protected outputs. This convenient power distribution board has a wide range of applications for access control, intrusion security and CCTV systems that require individually fused outputs. For convenient operation, this board comes with a power on/off switch, either automotive style fuses or auto resettable PTCs (CB suffix), and connecting hardware.
Features & Benefits:- Power disconnect switch makes servicing easy
- LED lights for quick and easy diagnosis, troubleshooting, and status indication
- Distribution board easily mounts using foam tape (included)or with optional HST34 snap track
- PTC's are solid state devices that are not replaced when activated but reset automatically when short is removed (allow 5 minutes to cool)
- Auto style fuses are easy to remove, colour coded to see rating and available in many retail locations
- ISO 9001 Certified.
Product Number
SKU
Description
HPD8
Power Distribution Module, 30V ACDc, 8 AutoFuse Out
HPD8CB
Power Distribution Module, 30V ACDc, 8 Ptc Output
SKU
Description
HPD8
Power Distribution Module, 30V ACDc, 8 AutoFuse Out
HPD8CB
Power Distribution Module, 30V ACDc, 8 Ptc Output
