Rotary Actuators
Line Voltage Motorized Actuator

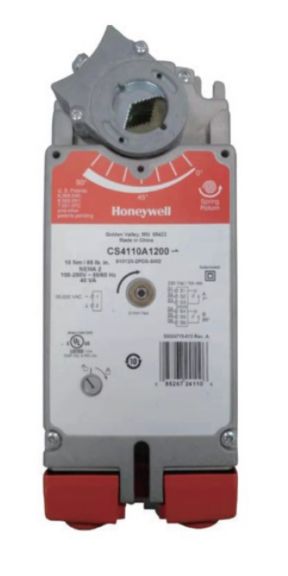

The CS4110A1002 are Spring Return Direct Coupled Actuators which are used within heating, ventilating and air-conditioning systems. They can drive a variety of quarter-turn final control elements requiring spring return fail-safe operation.
Overview
The CS4110A1002 are Spring Return Direct Coupled Actuators which are used within heating, ventilating and air-conditioning systems. They can drive a variety of quarter-turn final control elements requiring spring return fail-safe operation. Volume control dampers are mounted directly to the drive shaft or remotely with the use of accessory hardware. Quarter-turn rotary valves such as ball or butterfly valves are mounted directly to the drive shaft Linear stroke globe or cage valves mounted with linkages to provide linear actuation.
Features & Benefits:- Access cover to facilitate connectivity
- Metal housing with built-in mechanical end limits
- Spring return direction field-selectable
- Shaft position indicator and scale
- UL listed
- CE compliant
Specifications
Others
- Supply Voltage
- 100-250 VAC
- Minimum Operating Ambient Temperature
- -40 °C
- Overall Height
- 249 mm
- Overall Width
- 100 mm
- Driving Power Consumption
- 45 VAC
- Supply Voltage Frequency
- 50; 60 Hz
- Overall Depth
- 74.5 mm
- Maximum Operating Ambient Temperature
- 60 °C
- For Use With
- Heating, Ventilating and Air-conditioning (HVAC) Systems inch
- Switch Configuration
- 2 SPDT
- Maximum Operating Humidity
- 95 % Percentage
- Input Impedance
- 95 Kohms
- Spring Return
- Yes
- Regulatory Approvals
- UL listed; CE compliant Watt
- Includes
- Self Centering Shaft Adapter; Anti-Rotation Bracket; Extension Screw; Water Tight Cable Gland/Strain Relief Fitting voltage alternating current
- Number of End Switches
- No End Switches
- Feedback
- No Feedback voltage direct current
- Mounting Type
- Self Centering Shaft Adapter inch
- Feedback Included
- No
- Actuator Type
- Pneumatic Spring Return
- Brand
- Honeywell
Others
- Supply Voltage
- 100-250 VAC
- Minimum Operating Ambient Temperature
- -40 °C
- Overall Height
- 249 mm
- Overall Width
- 100 mm
- Driving Power Consumption
- 45 VAC
- Supply Voltage Frequency
- 50; 60 Hz
- Overall Depth
- 74.5 mm
- Maximum Operating Ambient Temperature
- 60 °C
- For Use With
- Heating, Ventilating and Air-conditioning (HVAC) Systems inch
- Switch Configuration
- 2 SPDT
- Maximum Operating Humidity
- 95 % Percentage
- Input Impedance
- 95 Kohms
- Spring Return
- Yes
- Regulatory Approvals
- UL listed; CE compliant Watt
- Includes
- Self Centering Shaft Adapter; Anti-Rotation Bracket; Extension Screw; Water Tight Cable Gland/Strain Relief Fitting voltage alternating current
- Number of End Switches
- No End Switches
- Feedback
- No Feedback voltage direct current
- Mounting Type
- Self Centering Shaft Adapter inch
- Feedback Included
- No
- Actuator Type
- Pneumatic Spring Return
- Brand
- Honeywell
- Supply Voltage : 100-250 VAC
- Minimum Operating Ambient Temperature : -40 °C
- Overall Height : 249 mm
- Overall Width : 100 mm
- Driving Power Consumption : 45 VAC
- Supply Voltage Frequency : 50; 60 Hz
- Overall Depth : 74.5 mm
- Maximum Operating Ambient Temperature : 60 °C
- For Use With : Heating, Ventilating and Air-conditioning (HVAC) Systems inch
- Switch Configuration : 2 SPDT
- Maximum Operating Humidity : 95 % Percentage
- Input Impedance : 95 Kohms
- Spring Return : Yes
- Regulatory Approvals : UL listed; CE compliant Watt
- Includes : Self Centering Shaft Adapter; Anti-Rotation Bracket; Extension Screw; Water Tight Cable Gland/Strain Relief Fitting voltage alternating current
- Number of End Switches : No End Switches
- Feedback : No Feedback voltage direct current
- Mounting Type : Self Centering Shaft Adapter inch
- Feedback Included : No
- Actuator Type : Pneumatic Spring Return
- Brand : Honeywell
